Riello GITRE Series - Page 25

25

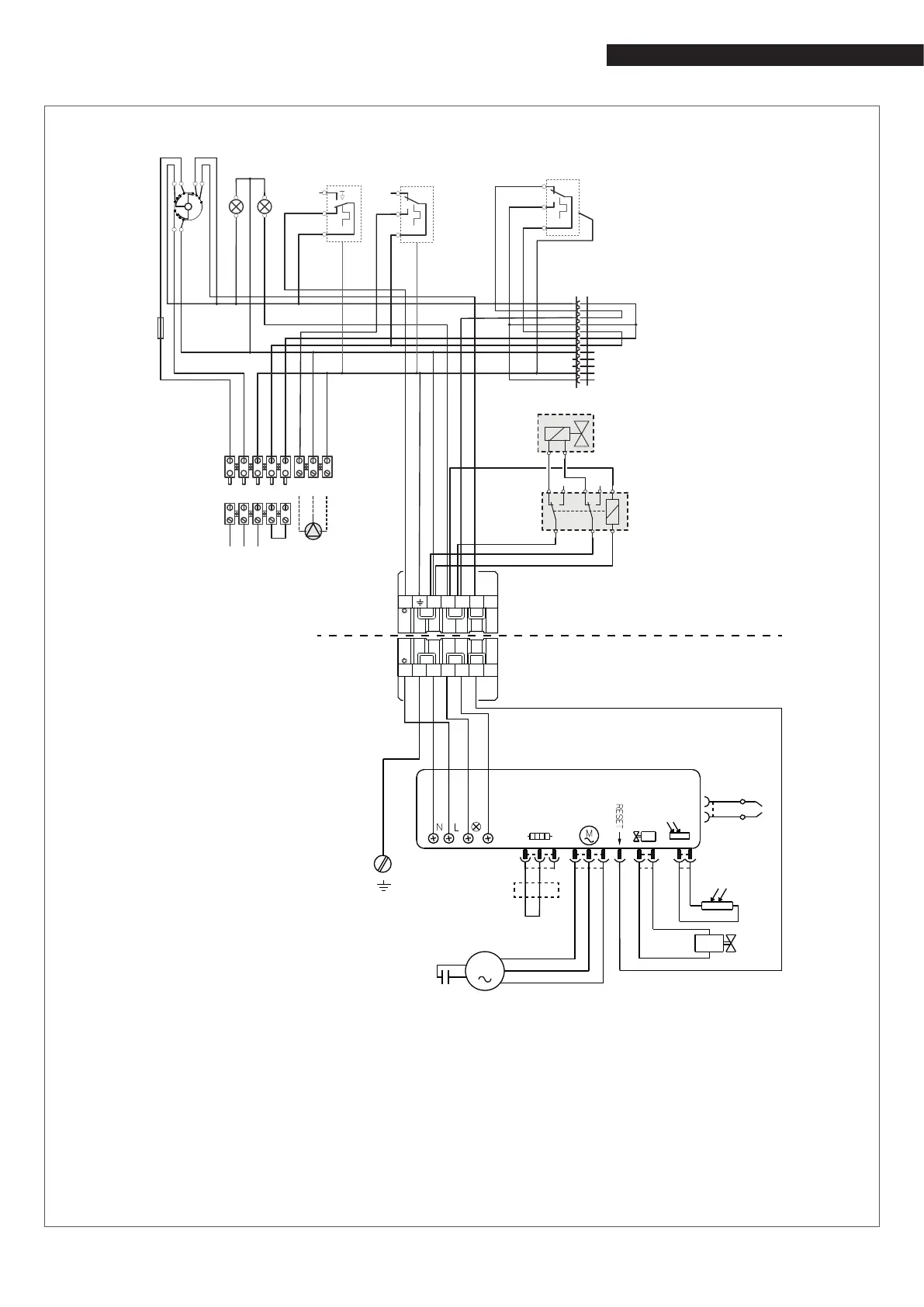

INSTALLATION
GITRÈ 5-GITRÈ 6
LV
FU
1
2
3
4
5
6
7
8
9
10
11
12
CO1
LR
2
1
C
TR
C3
A 1
B
2
COM.G.
CO1A
L1 N PE TA TA LPI NPI PE
PI
2
1
C
TS
2
1
C
Tm
MO1
L N PE
AE
230V ~ 50Hz
RE
DAI
C C
NC
1
2
N
N
NC
321NL1
X6
TB
XP6
C
MV
P
M
V
F
E
White
Yellow/Green
Black
Red
BURNER CONTROLLER
HEAT
REQUEST
Black
White
Blue
Grey
Violet
AE Power supply
COM.G. 3 position function selector
LV Mains power indicator
LR Burner lockout indicator
TS Safety thermostat (110°C 0/-6) (*)
TR Boiler control thermostat (55 -
82°C) (*)
Tm Minimum temperature
thermostat (50°C) (*)
FU Mains power fuse 6.3 A-T
CO1-CO1A Multi-connectors
MO1 Terminal strip
PI Central heating pump (not
supplied)
DAI Automatic shut-off device (not
supplied; only where required).
The automatic shut-off device
(DAI) and the relay (RE) must
be suitable for a 230 VAC power
supply.
RE Relay (not supplied)
X6 6 pin burner connector (female)
(*) Homologated
C Condenser
E Ignition electrodes
F Flame detector
MV Fan motor
P Short circuit socket
TB Burner ground
V Fuel oil valve
XP6 6 pin burner connector (male)
