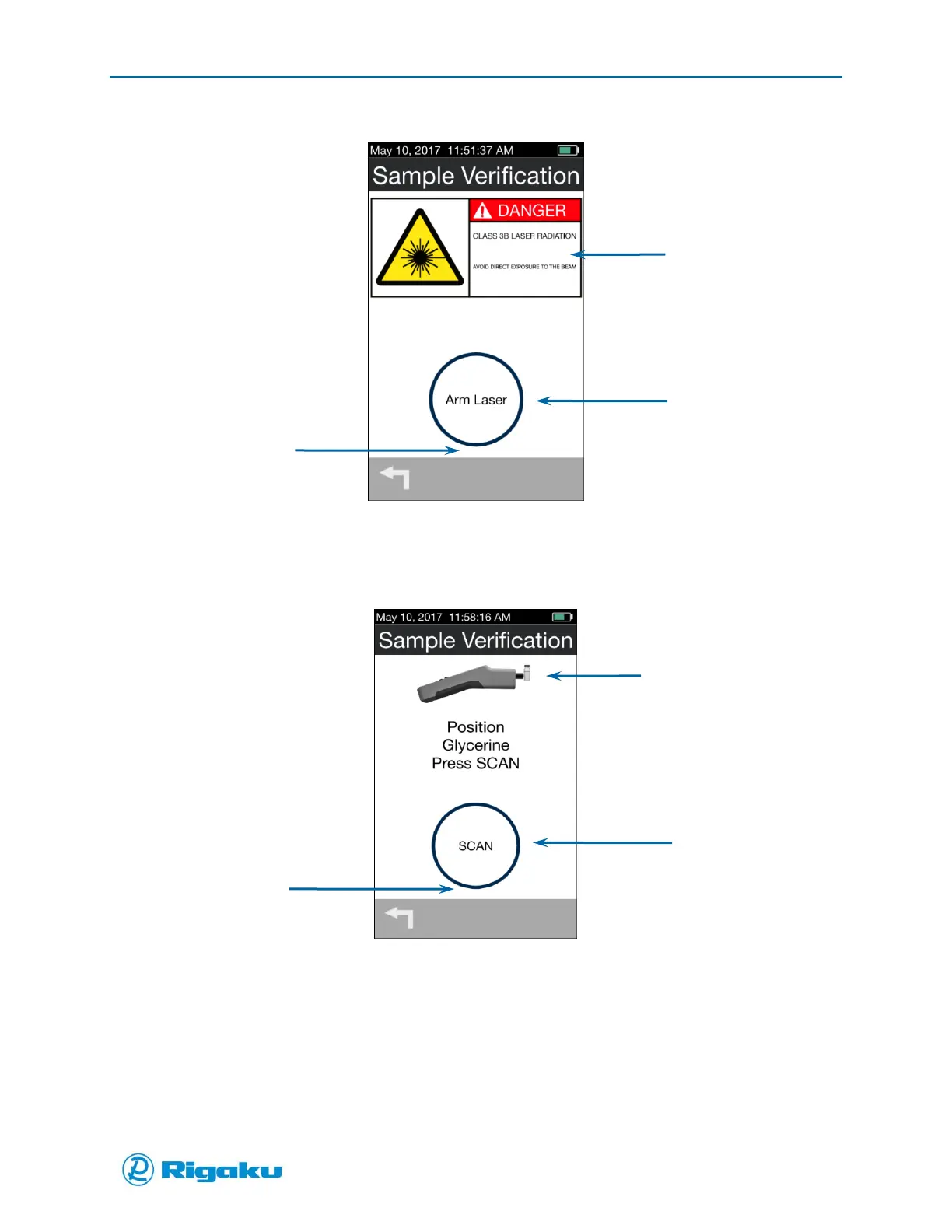

Figure 20. Verification Laser Warning
8. Select OK/ARM LASER to display the application’s scan screen for the selected substance
appears (Figure 21).
Figure 21. Verification Application Scan Screen
9. Select the Scan soft key to start the sample-analysis cycle.
When the sample-analysis cycle is completed the scan results screen displays (Figure 22).
Scan soft key
Sample alignment
OK/ARM LASER soft
key
Use Extended Screen to
view scan properties
Laser warning
Use Extended Screen to
view scan properties
