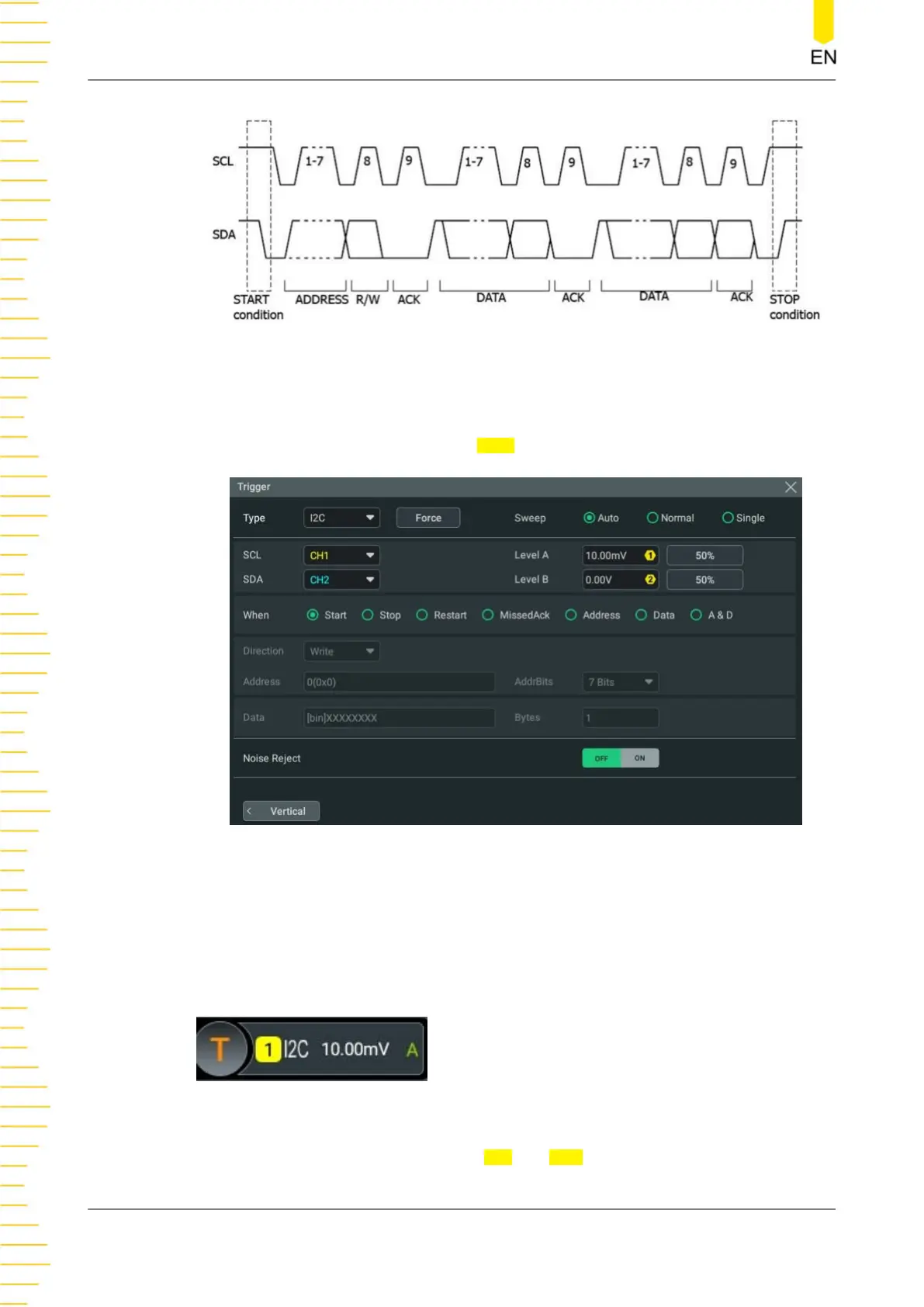

Figure 8.26 Sequence Diagram of I2C Protocol

Trigger Type

Click or tap the drop-down button of

Type to select "I2C".

Figure 8.27 I2C Trigger Setting Menu

After a trigger type is selected, the current trigger setting information (including the

trigger type, source, and level) is displayed in the trigger information label at the top

of the screen, as shown in the figure below. The information will change based on the

trigger settings.

Source Selection

Click or tap the drop-down buttons of

SCL and SDA to select CH1-CH4 to specify the

sources of SCL and SDA respectively. For details, refer to descriptions in

Trigger

Triggering the Oscilloscope

DHO800 User Guide
