• Overlay

Click or tap the

Overlay on/off switch to enable or disable the overwriting

function. When this function is enabled, the existing file in the specified file path

will be overwritten by the newly saved file that has the same filename as the

existing one.

Click or tap

Save, the current waveform file is saved based on the settings and the

storage menu is disabled.

TIP

When the quick action function is set to "Save Wave" or "Save Group" with "Save Wave"

selected, you can press the front-panel

key to save the waveform.

20.2.3 Save Setup

In the Storage menu, click or tap the Save tab to enter the save operation menu. In

this menu, click or tap the drop-down button of

Choose to select "Save Setup" to

enter the "Save Setup" setting menu. Save the settings of the oscilloscope to the

internal or external memory in "*.stp" format. When loading, the stored settings can

be recalled.

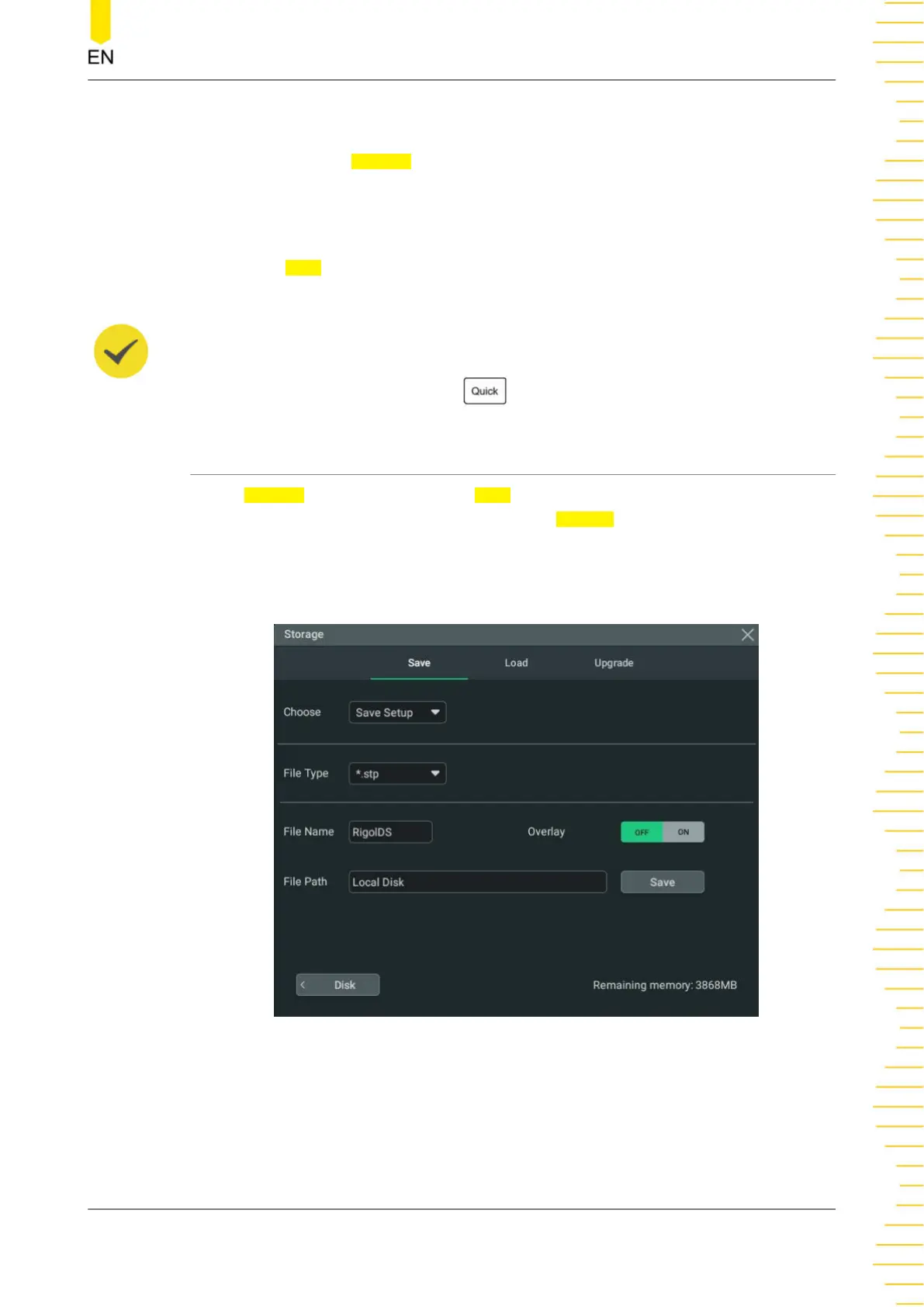

Figure 20.3 Setup Saving Setting Menu

Set the file saving parameters

• Set the filename

Store and Load

205
