In the following part, a frequency sweep signal of the sine waveform is used to show
the waveform effects in different persistence times.
• Min
Enables you to view waveform changing in high refresh rate.
• Specific Values
Enables you to view glitches that change relatively slowly or glitches with lower
occurrence probability. The persistence time can be set to 100 ms, 200 ms, 500
ms, 1 s, 2 s, 5 s, or 10 s.
• Infinite
In this mode, the oscilloscope displays the waveform newly acquired without
clearing the waveforms acquired formerly. The waveforms acquired formerly will
be displayed in relatively low-brightness color and the newly acquired
waveforms will be displayed in normal brightness and color. Infinite persistence
can be used to measure noise and jitter and to capture incidental events.
19.3 Waveform Intensity
In Display menu, drag the slide bar of Wave Intensity to set the brightness of
waveforms. The default is 50%, and the range available is from 1% to 100%.

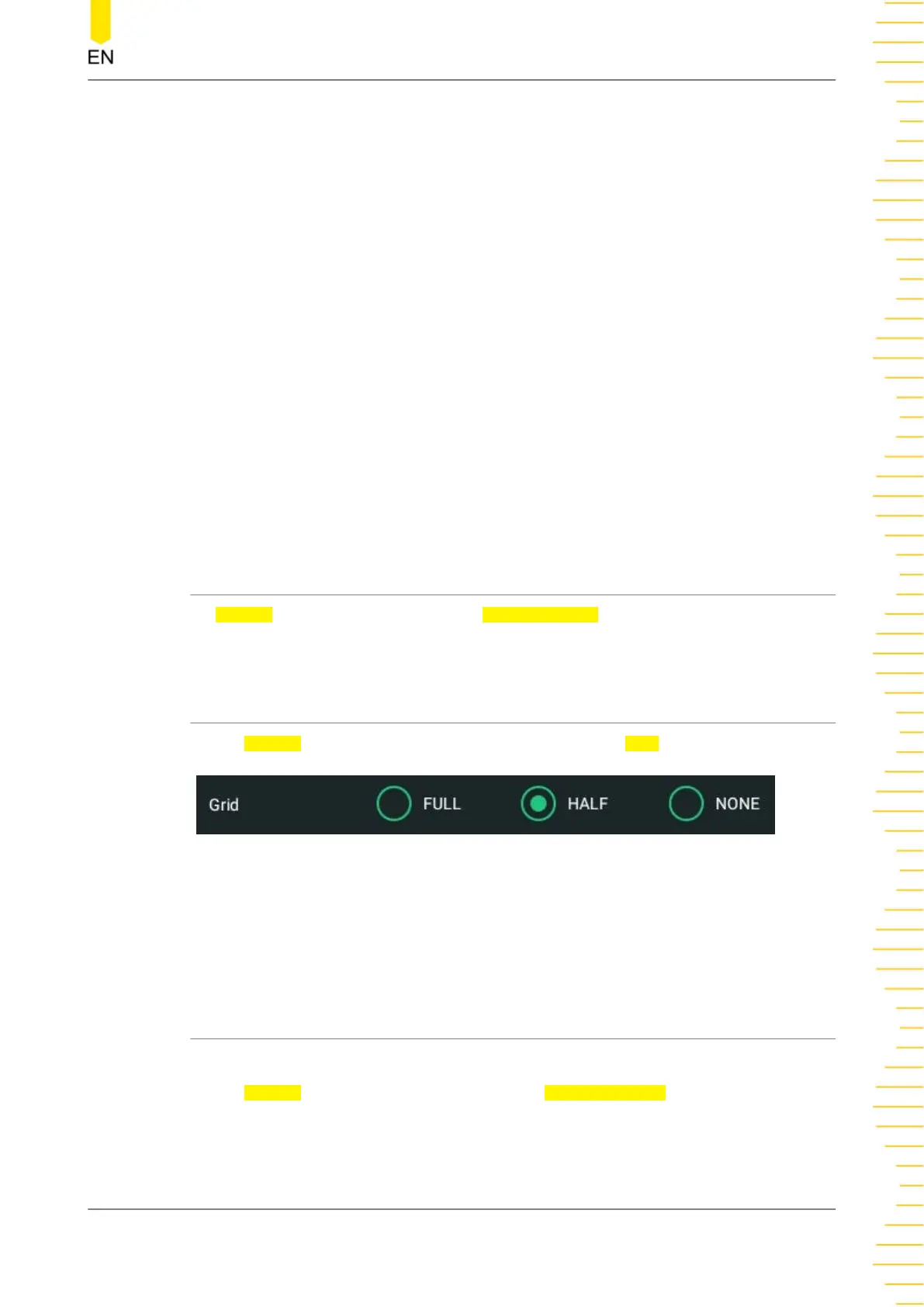

19.4 To Set the Screen Grid
In the Display menu, select "FULL", "HALF", or "NONE" in Grid.
• FULL: turns the background grid on.
• HALF: turns part of the grid off, leaving only the main grid.
• NONE: turns the background grid off.
19.5 Display Settings
Grid Brightness
In the
Display setting menu, drag the slider of Grid Brightness to set the grid
brightness. The default is 50%, and the range available is from 0% to 100%.
Display Control
