Horizontal System

You can access the Horizontal menu in the following ways.

• Click or tap the channel status label at the bottom of the screen, and then the

Vertical menu is displayed. Click or tap the Acquisition button to enter the

Horizontal menu.

• Click or tap the horizontal time base label ("H" icon), acquisition label ("A" icon),

or horizontal position label ("D" icon) at the top of the screen to enter the

Horizontal menu.

Horizontal Time Base

Sample Rate Horizontal Position

• Press the front-panel key to enter the Horizontal menu.

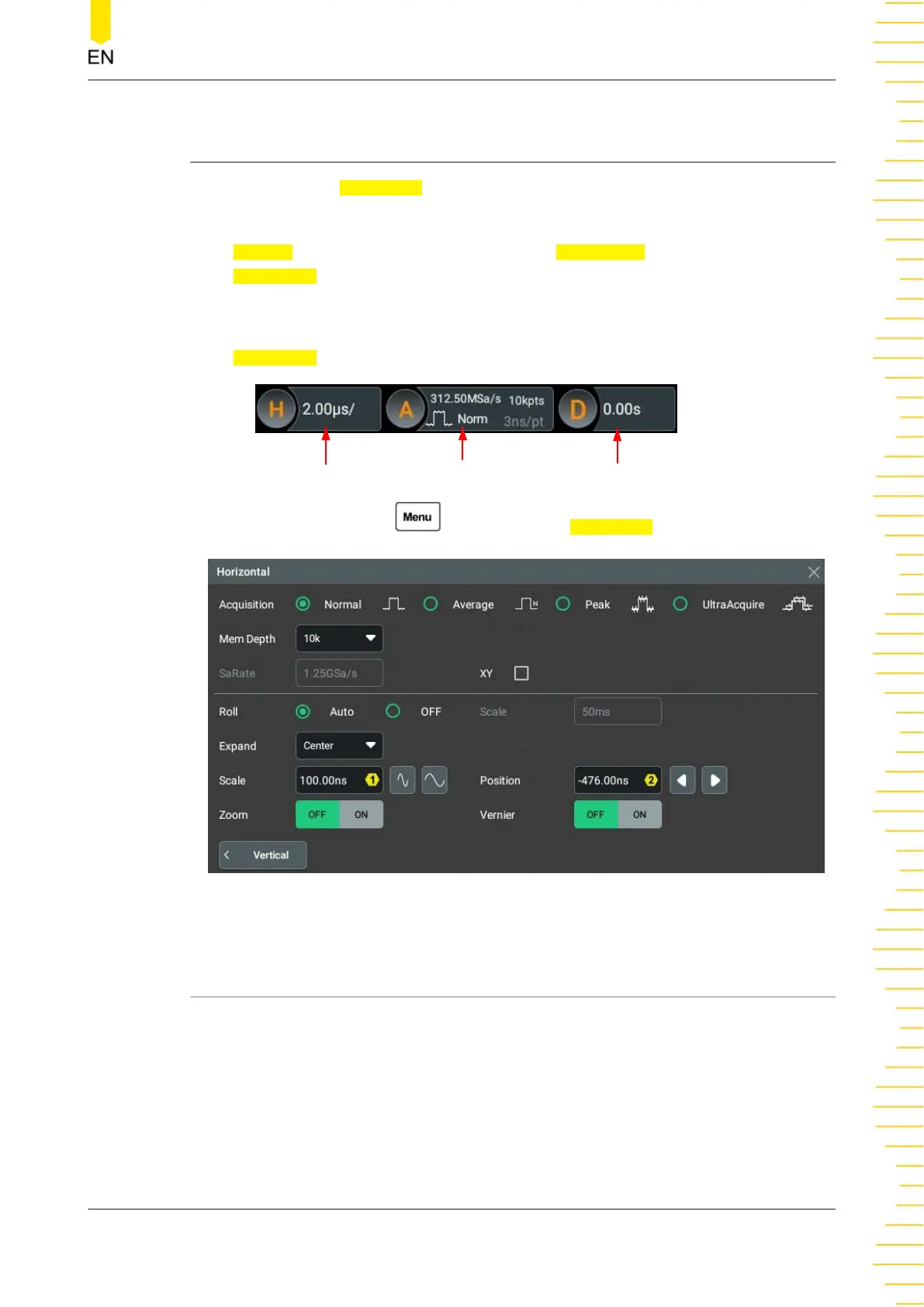

Figure 6.1 Horizontal Menu

6.1 To Adjust the Horizontal Time Base

Horizontal time base, also called the horizontal scale, refers to the time of each grid in

the horizontal direction of the screen. It is usually expressed in s/div. The range of the

horizontal time base is from 5.00 ns/div to 500 s/div.

While you change the horizontal time base, the displayed waveforms of all channels

are expanded or compressed horizontally relative to the selected time reference

(

Horizontal Expansion Reference

). The horizontal time base in the horizontal time

base label ("H" icon) will change accordingly, as shown in the figure below.

Horizontal System
