supports the XY display in which both X-axis and Y-axis indicate voltage. The XY
mode converts the oscilloscope from a "Voltage-Time" display to a "Voltage-Voltage"
display using two input channels.
Enable the XY Mode
You can enable the XY display mode in the following ways.
• Click or tap the
Windows button in the function navigation menu or on the
toolbar to enter the
Add Window menu. In the "Diagram" item, click or tap XY >
Add to enable the XY display mode.
• Click or tap the
XY button in the function navigation menu or on the toolbar to
enable the XY display mode.
• In the "Horizontal" menu, tick
XY to enable the XY mode.
Configure the XY Mode
Click or tap
at the upper-right corner of the XY display window to enter the XY
configuration menu.

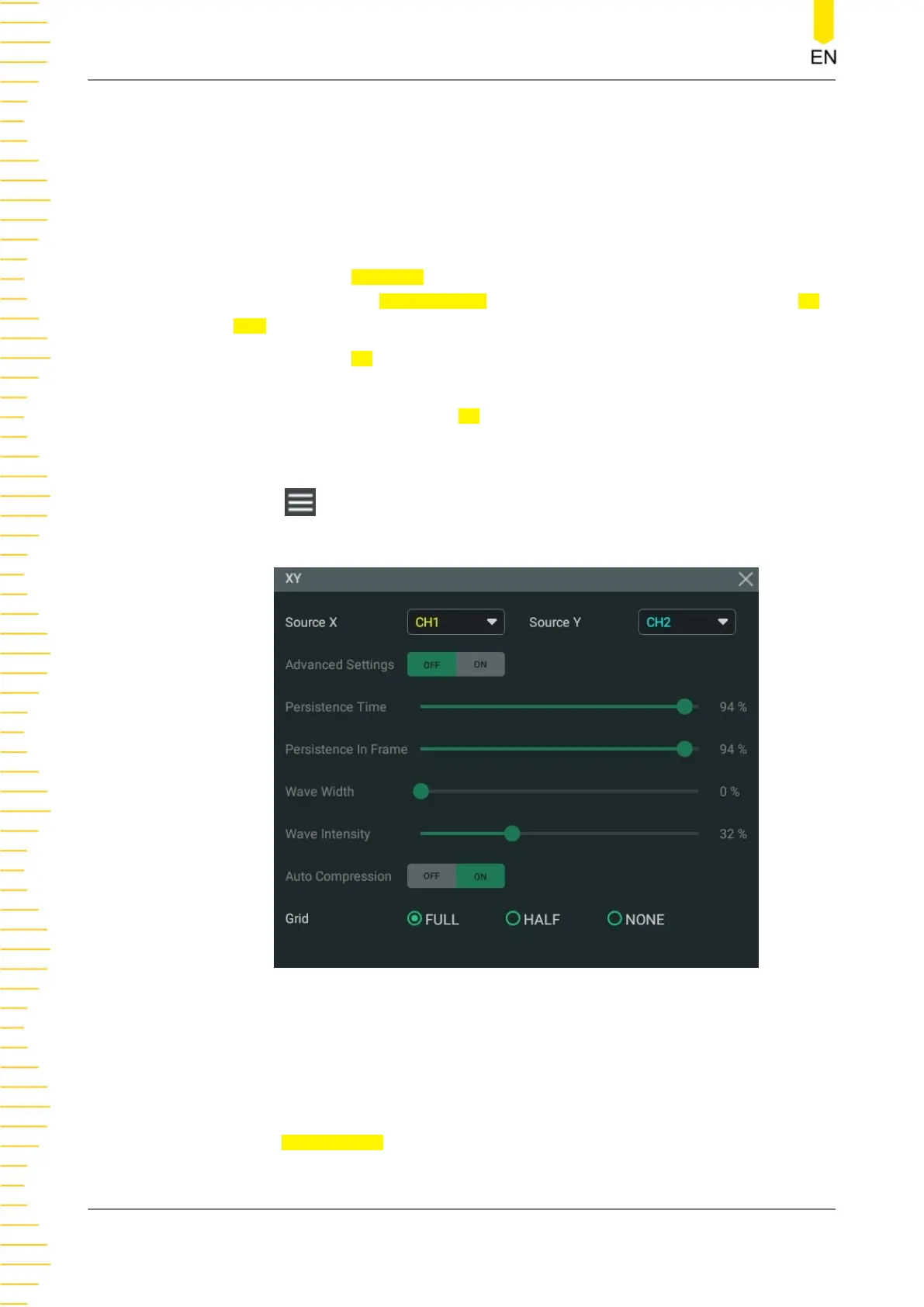

Figure 7.4 XY Menu
• Source: Click or tap the drop-down button of "Source X" to select the source
channel of the X-axis in the XY window. Click or tap the drop-down button of
"Source Y" to select the source channel of the Y-axis in the XY window.
In the
Add Window menu, you can also configure Source Z. Source Z, as the Z-
axis input in the XY display mode, is used to control whether to display the X-Y
waveforms in the XY display mode. This function is called "blanking".
Acquisition System
DHO800 User Guide
58
Copyright ©RIGOL TECHNOLOGIES CO., LTD. All rights reserved.
