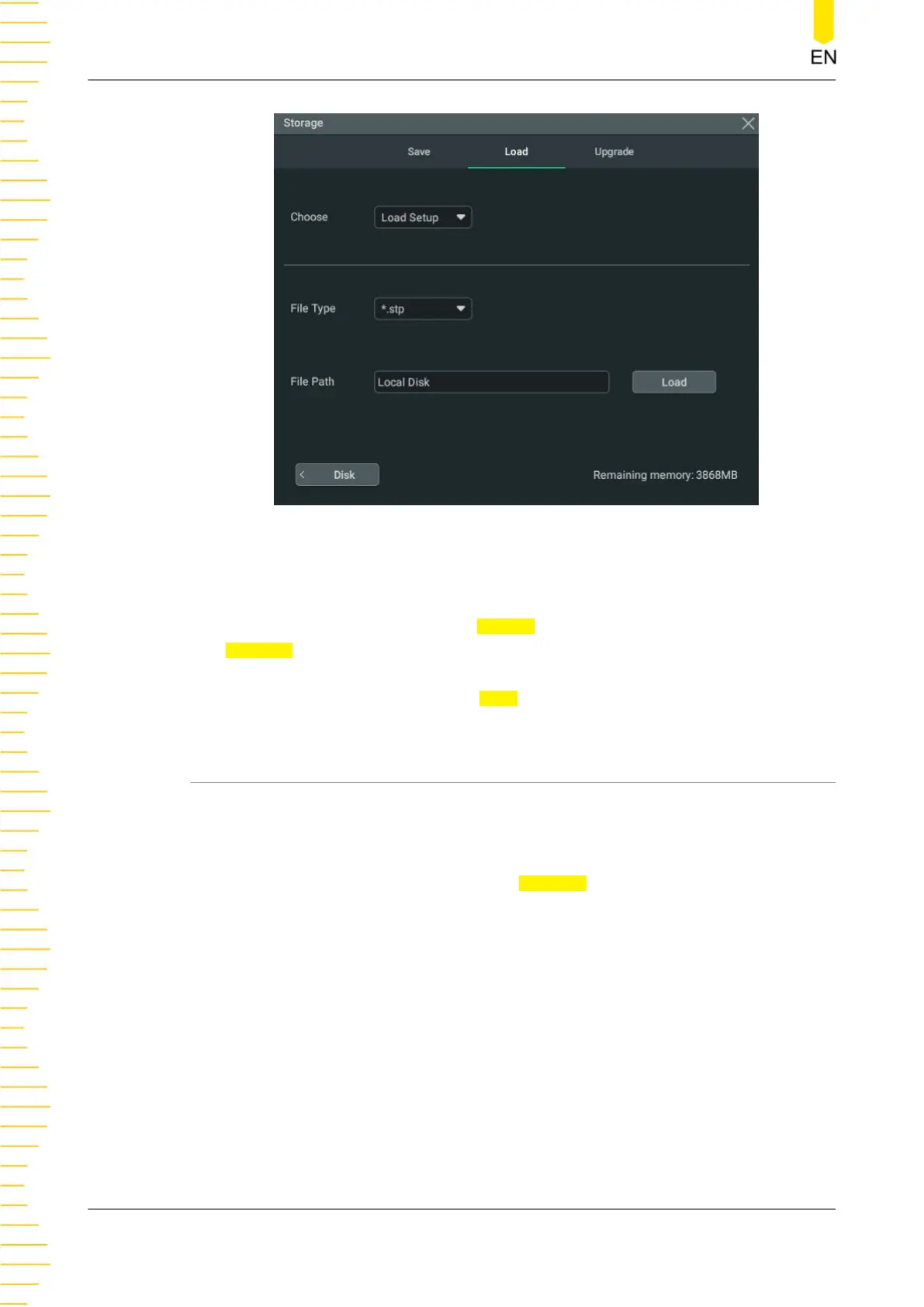

Figure 20.4 Load Setting Menu

Load Setup

Click or tap the drop-down button of

Choose to select "Load Setup". Then, click or

tap

File Path to load the setups from the internal memory or the external USB disk.

The default file type is "*.stp", and no other options are available. Select the file to be

loaded from the memory. Click or tap

Load to load the selected file.

20.4 Firmware Upgrade

This instrument supports local upgrade and online upgrade.

Local upgrade

1. In the storage setting menu, click or tap

Upgrade to enter the local upgrade

setting menu.

Store and Load

DHO800 User Guide

210
