• HighPass only allows the signals whose frequencies are higher than the current

lower limit frequency to pass.

• BandPass only allows the signals whose frequencies are higher than the current

lower limit frequency and lower than the current upper limit frequency to pass.

• BandStop only allows the signals whose frequencies are lower than the current

lower limit frequency or higher than the current upper limit frequency to pass.

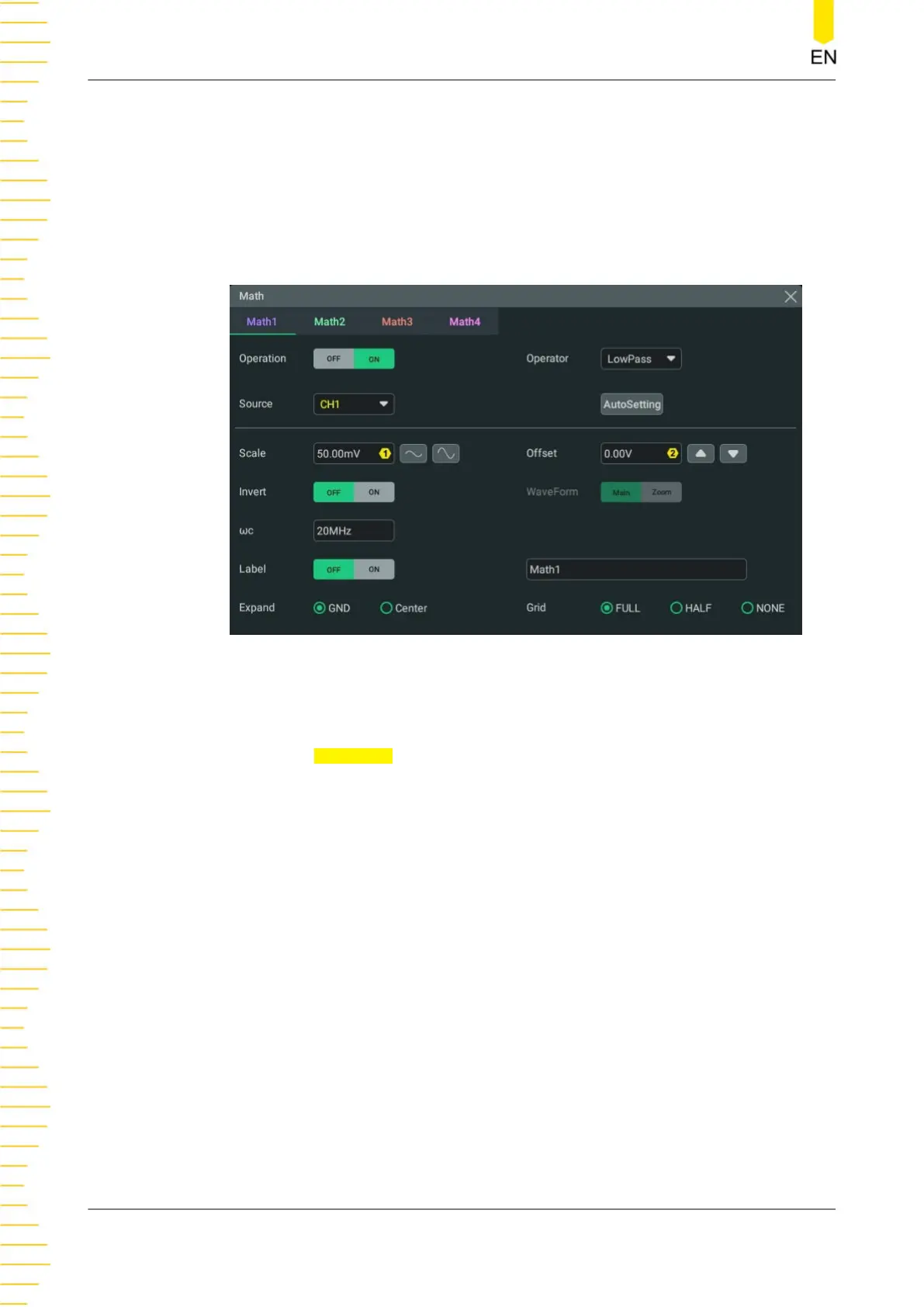

Figure 9.12 Digital Filter Menu

Operation Result Display Window

Click or tap the

Operation on/off switch to enable the display of the operation result

window. The source and the vertical scale parameters are displayed at the top of the

window as shown in the figure below.

Math Operation

DHO800 User Guide

122
