RIGOL Chapter 3 Remote Control
3-4 DP800 User’s Guide

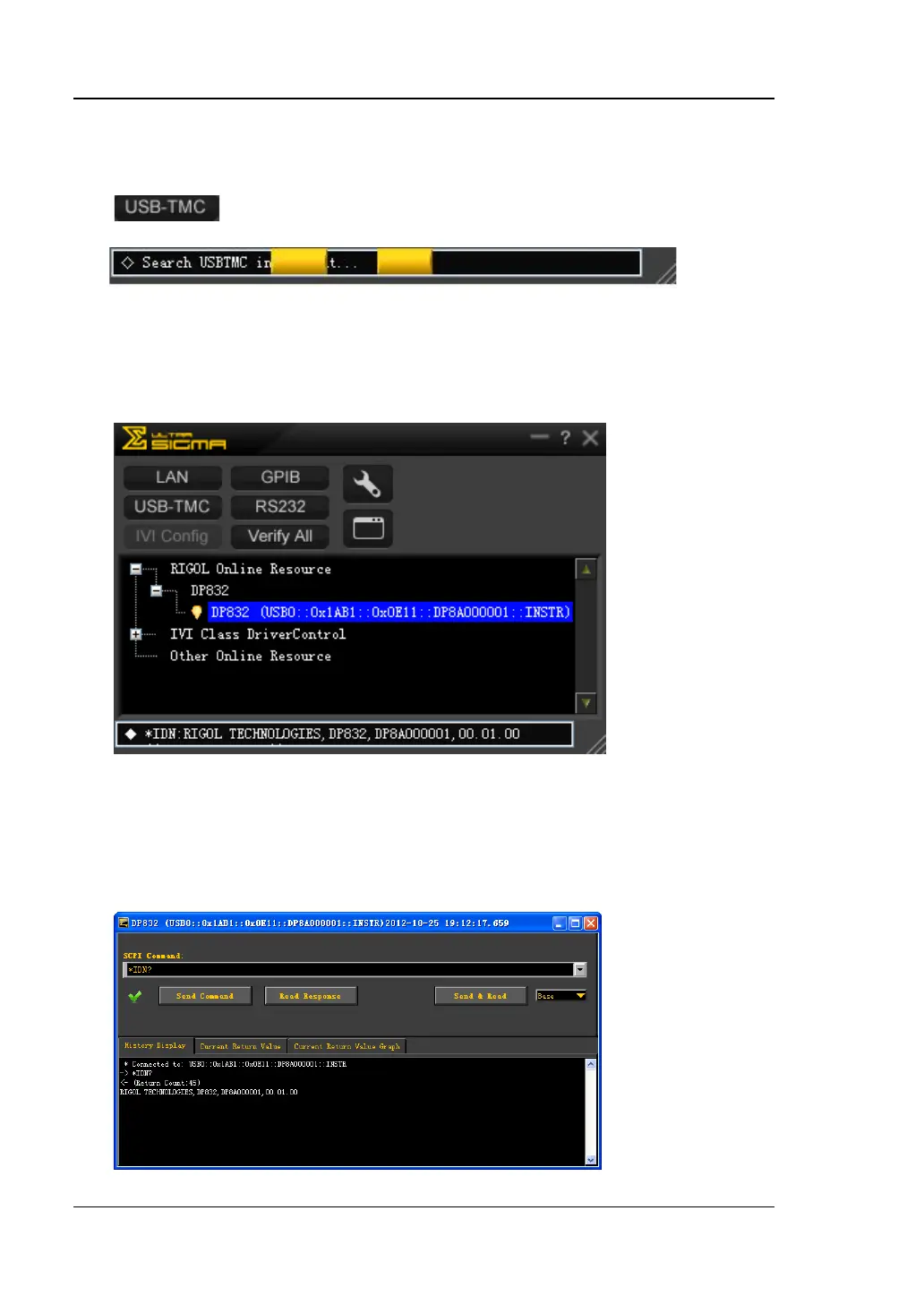

3. Search device resource
Start up the Ultra Sigma and the software will automatically search for the
power supply resources currently connected to the PC. You can also click
to search the resources. During the search, the status bar of the
software is as shown in the figure below.
4. View the device resource
The resources found will appear under the “RIGOL Online Resource” directory
and the model number and USB interface information of the instrument will also
be displayed as shown in the figure below.
5. Communication test
Right click the resource name “DP832
(USB0::0x1AB1::0x0E11::DP8A000001::INSTR)” to select “SCPI Panel Control”
to turn on the remote command control panel (as shown in the figure below)
through which you can send commands and read data.
