3. Connect a test clip to one lead wire; make sure it’s connected well.

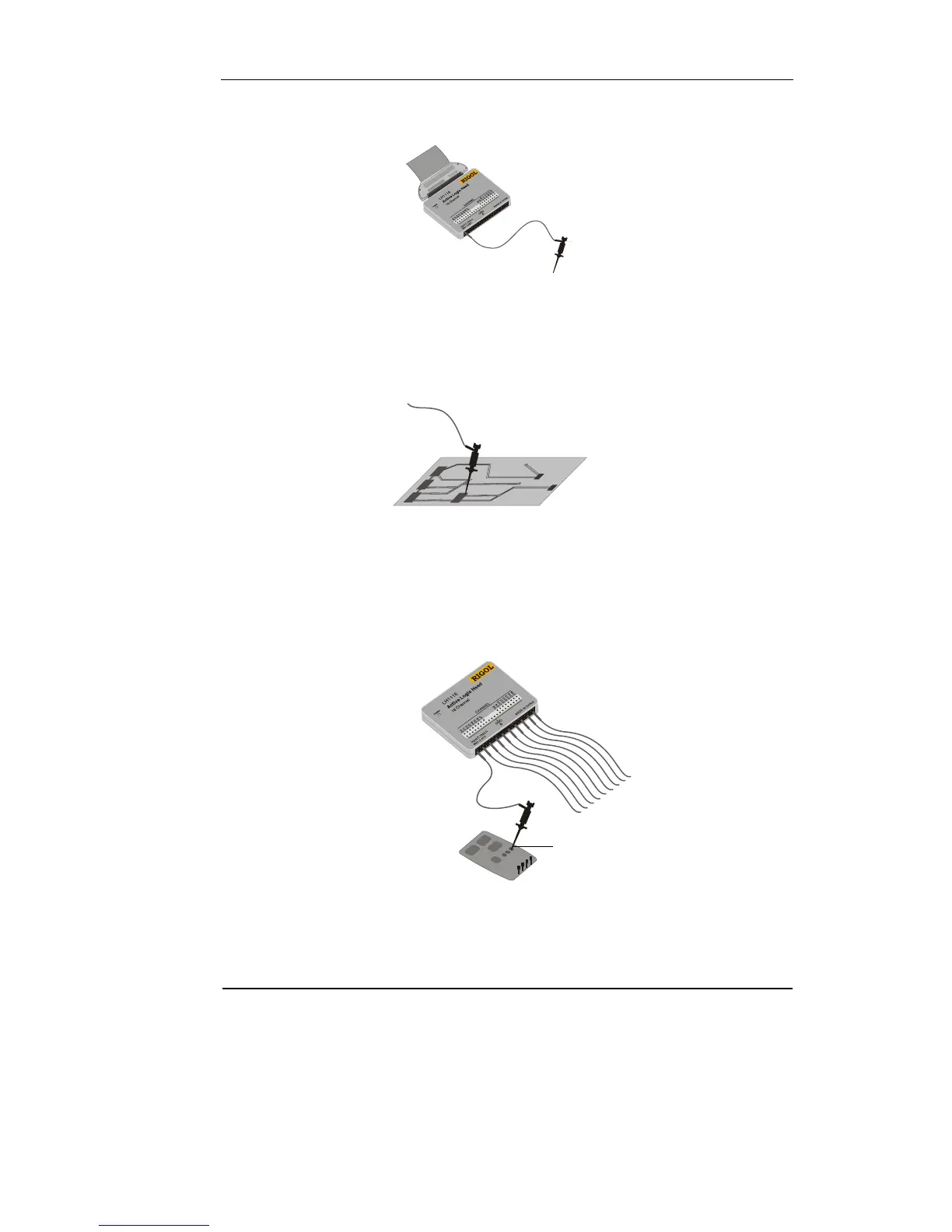

Figure 1-11
4. Test your device with the clip.
Figure 1-12
5. Remember to connect Ground Channel to the DUT’s ground terminal.
Figure 1-13
Test clip
GND
