RIGOL
2-24 © Copyright RIGOL Technologies, Inc. 2007.
User’s Guide for DS1000 Series

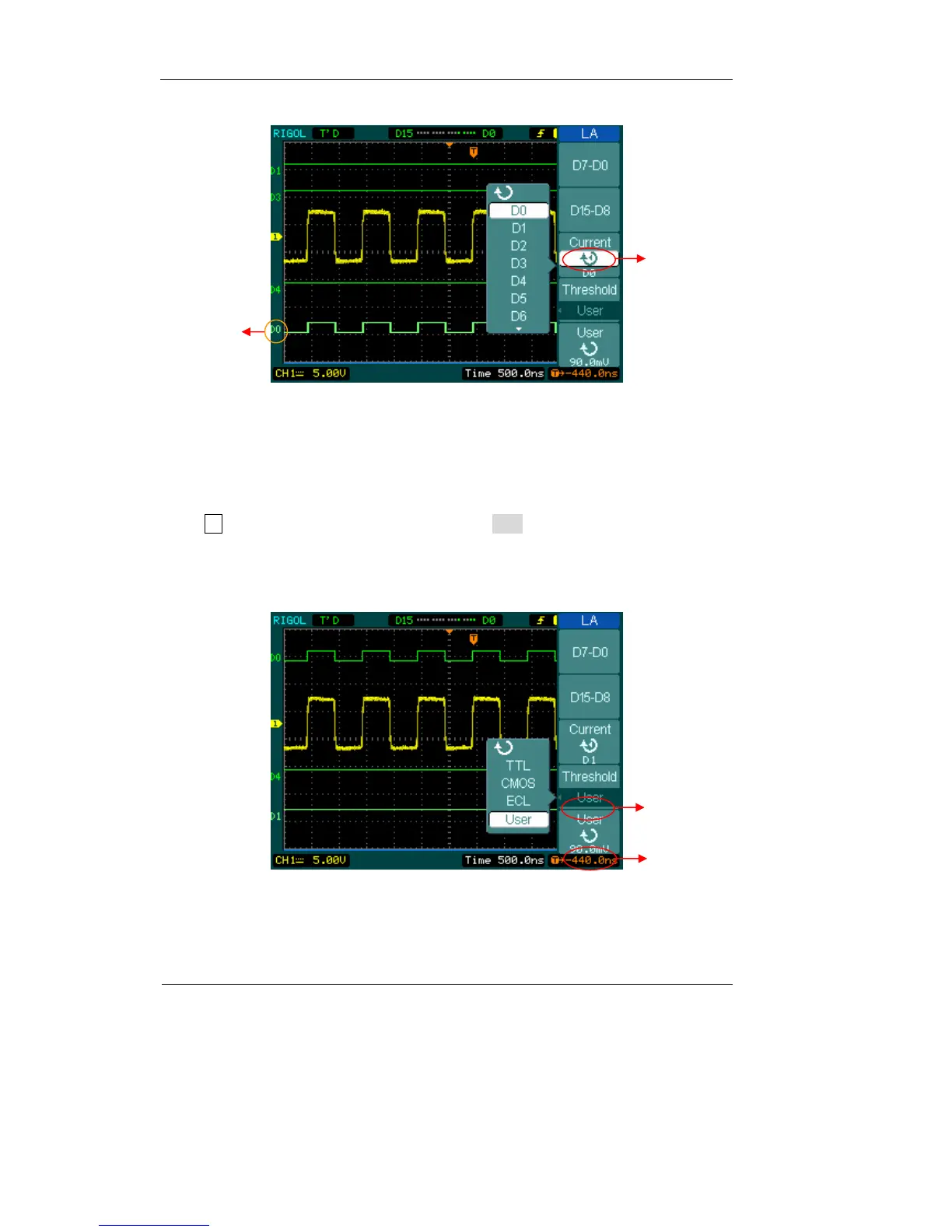

Figure 2-32
2. Set threshold mode of digital channels
Press LA→Threshold, select logic standard or User to define your own threshold
voltage.
The figure of menu shows as follow.
Figure 2-33
Select
running
channel
Running
channel
Setup threshold
Setup data of
threshold by user
To Next Page
