RIGOL
2-42 © Copyright RIGOL Technologies, Inc. 2007.
User’s Guide for DS1000 Series

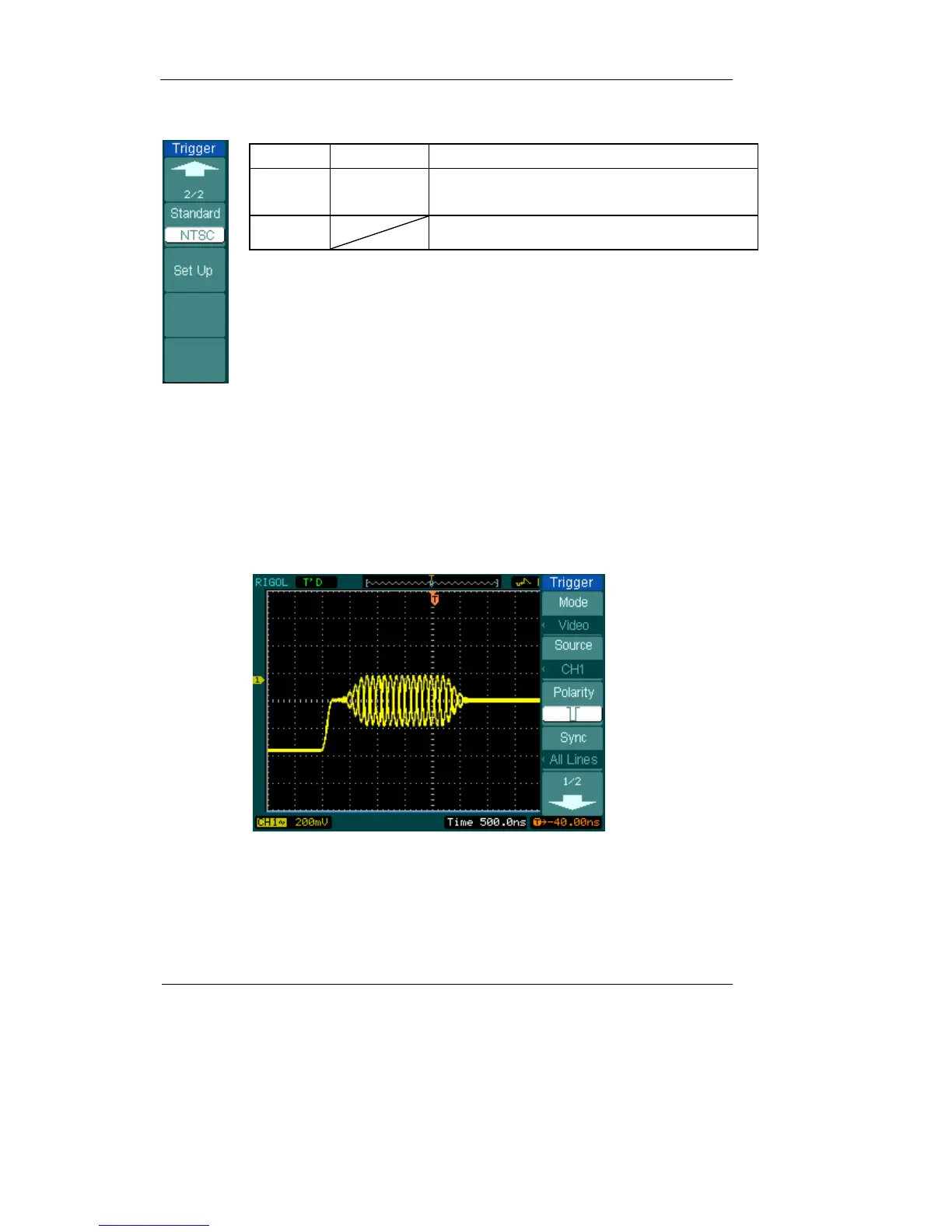

Figure 2-47 Table 2-25 (when the Sync is set as All lines, Odd field and Even field)
Menu Settings Comments
Standard
PAL/SECAM
NTSC
Select Video standard
Set Up To go to set up menu, see table 2-39
Key points
Sync Pulses: When Normal Polarity is selected, the trigger always occurs on
negative-going sync pulses. If the video signal has positive-going
sync pulses, use the inverted Polarity selection.
Figure 2-48: Line Synchronization
