RIGOL Chapter 5 Trigger
5-40 DS4000E User’s Guide
4. Set the frame ID
When the trigger condition is set to “Frame Type” and the frame type is set to
"Data" or "Remote", press ID Setup to select “Random ID” or “Specific ID”.
 When “Random ID” is selected, the ID data will not be used as the trigger
condition.
 When “Specific ID” is selected,
a. Press ID Format to select “Standard” or “Expand”.
b. Press ID Data and turn the multi-function knob or the inner knob
of the navigation knob to adjust the ID data at a relatively smaller step
or turn the outer knob of the navigation knob to adjust the ID data at a
relatively larger step. The range of the ID data is from 0 to 2047
(standard ID format) or from 0 to 536870911 (expanded ID format).
Note: The larger the rotation amplitude of the outer knob of the
navigation knob is, the faster the variation of the value will be. When
you need to adjust the ID data within a relatively larger range, this
function can help you quickly finish the setting.
5. Set the data

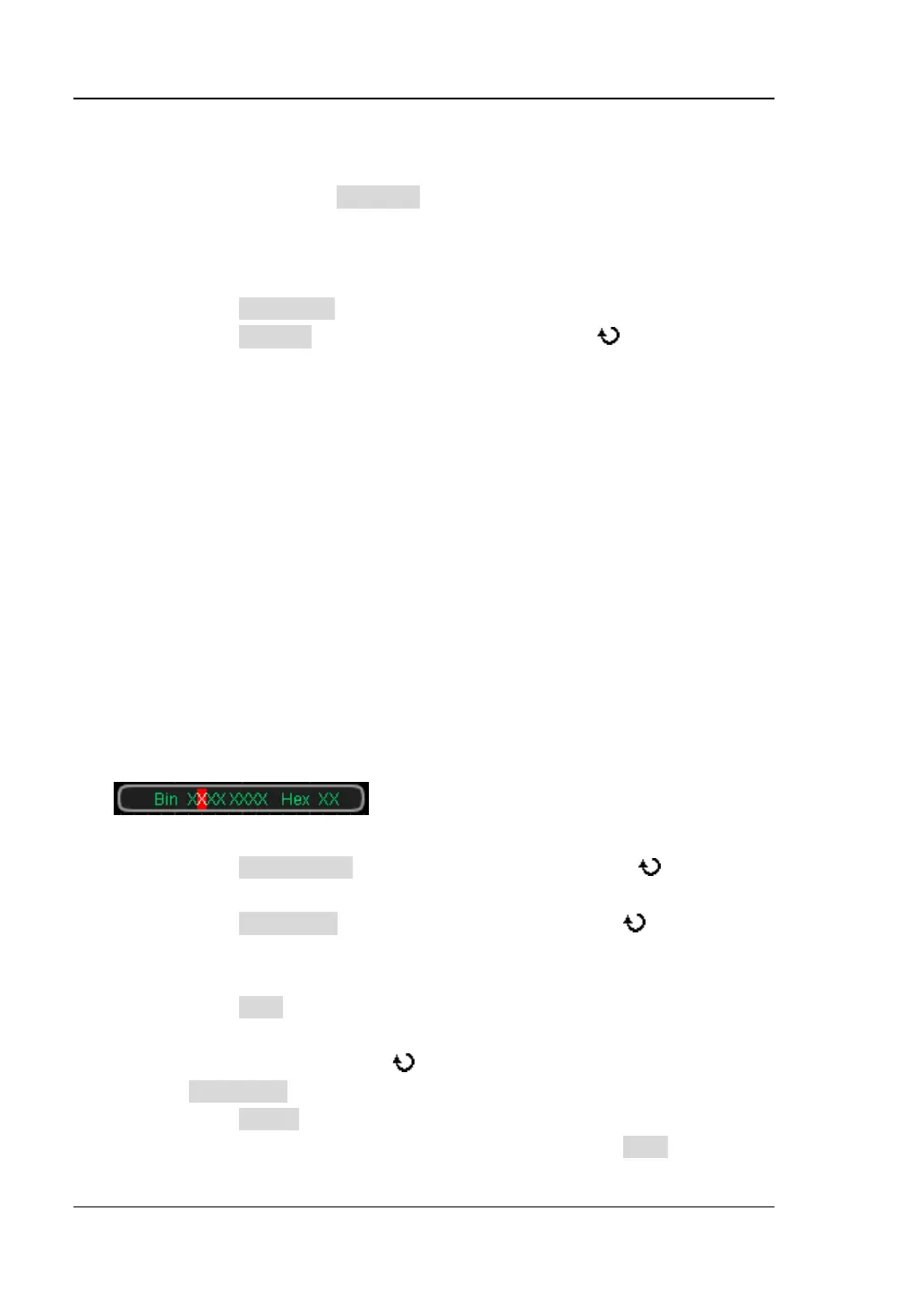

When the trigger condition is set to “Frame Type” and the frame type is set to
"Data", the data setting area (as shown in the figure below) is displayed at the
bottom of the screen displaying the current data setting information (the data
bit currently selected is highlighted in red) and the data setting information
changes with the data setting.
 Method 1: Set the data in binary
a. Press Byte Length and turn the multi-function knob to select the
desired byte length. The range is from 1 to 8.
b. Press CurrentBit and turn the multi-function knob to select the
bit (behind "Bin") to be operated and the range is from 0 to (the
current “Byte Length”×8-1).
c. Press Data to set the data pattern of the current data bit to H, L or X.
You can also switch the data pattern of the current data bit by pressing
the multi-function knob
continuously after you set the
CurrentBit.
d. Press AllBits to set the data patterns of all the data bits to the data
pattern of the current bit (namely the pattern set in Data).
