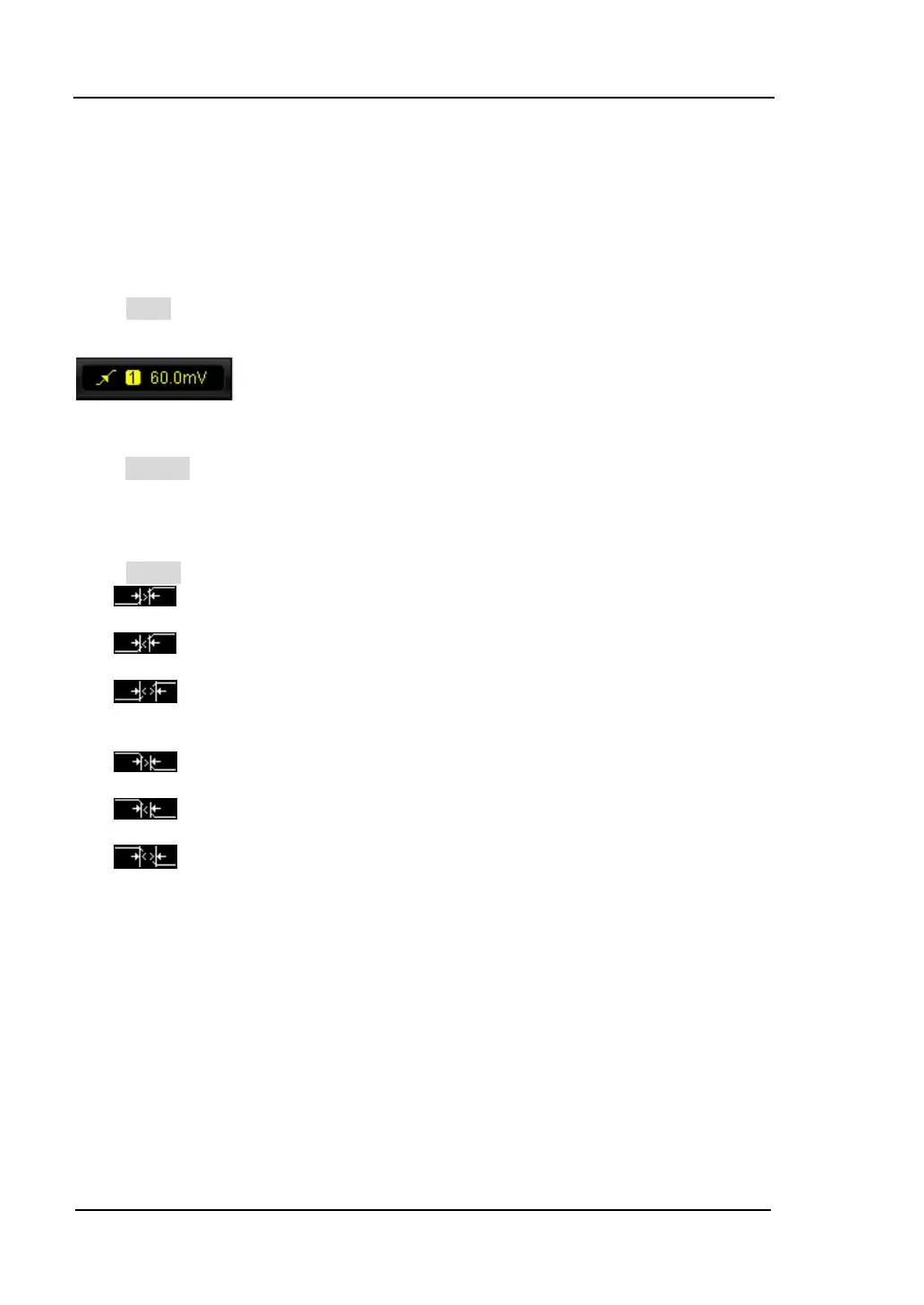

Slope Trigger
Trigger on the positive or negative slope with specified time.
Trigger Type:
Press Type to select “Slope”. At this point, the trigger setting information as shown
in the figure below is displayed at the upper right corner of the screen.
Source Selection:
Press Source to select CH1-CH4, EXT or EXT/5 as the Trigger Source. The current
trigger source is displayed at the upper right corner of the screen.
Slope Condition:
Press When to select the desired slope condition.
: trigger when the positive slope time of the input signal is greater than
the specified Time Setting.
: trigger when the positive slope time of the input signal is lower than the
specified Time Setting.
: trigger when the positive slope time of the input signal is greater than
the specified Lower Limit of Time and lower than the specified Upper Limit
of Time.
: trigger when the negative slope time of the input signal is greater than
the specified Time Setting.
: trigger when the negative slope time of the input signal is lower than
the specified Time Setting.
: trigger when the negative slope time of the input signal is greater than
the specified Lower Limit of Time and lower than the specified Upper Limit
of Time.
Time Setting:
In this oscilloscope, positive slope time is defined as the time difference between the
two crossing points of trigger level line A and B with the positive edge. As shown in
the figure below:
