DS6000 User’s Guide
1-32
Installation Space
The following requirements must be fulfilled by the machine cabinet in which the
instrument is mounted.
 The machine cabinet must be a standard 19-inch one.
 At least 6U (266.7 mm) space should be provided by the machine cabinet.
 The depth inside the machine cabinet should not be less than 400 mm.

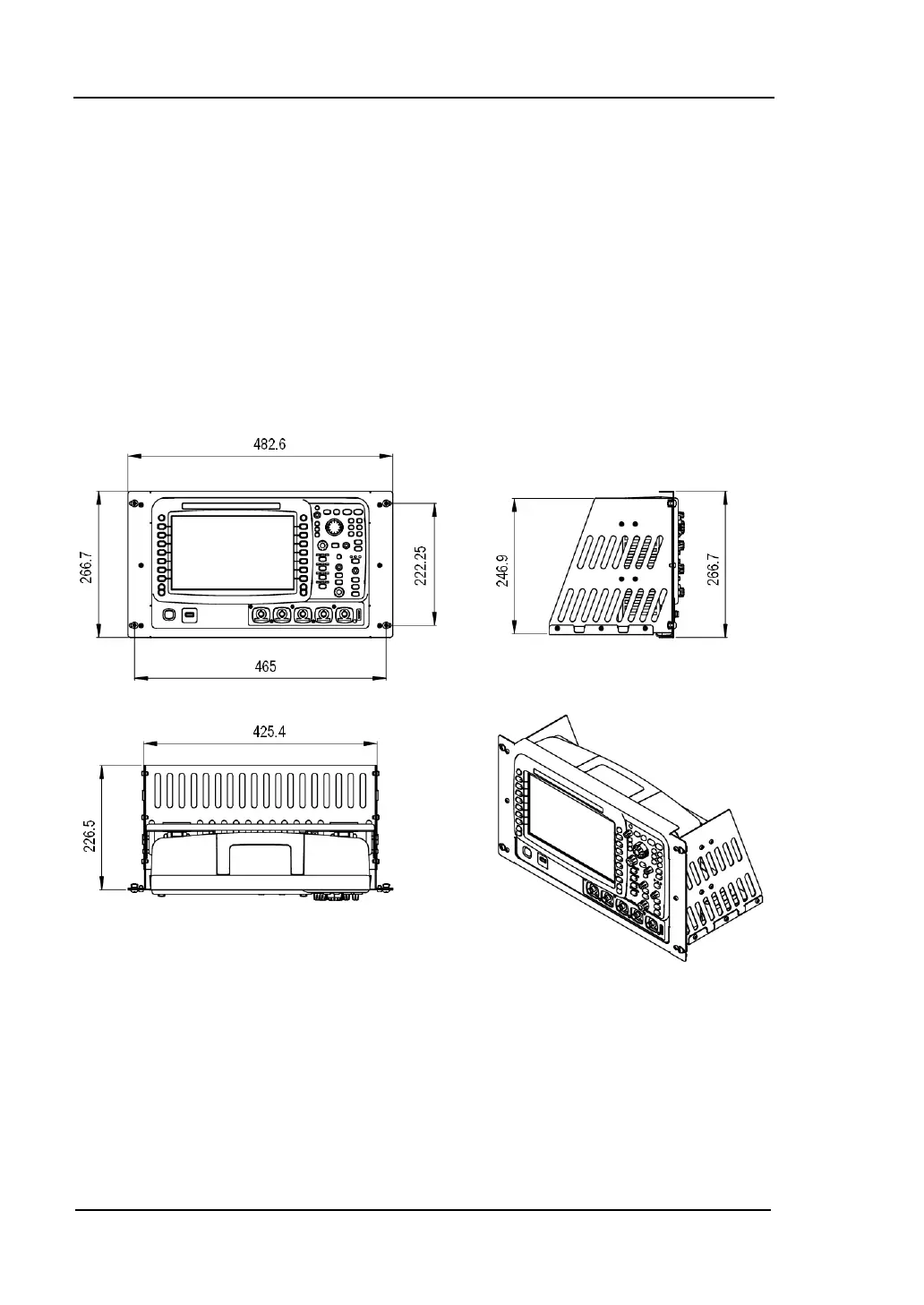

The dimension of the instrument after being installed is shown below.
