DS6000 User’s Guide
Delayed Sweep
Delayed sweep can be used to enlarge a length of waveform horizontally to view the
details of the image.

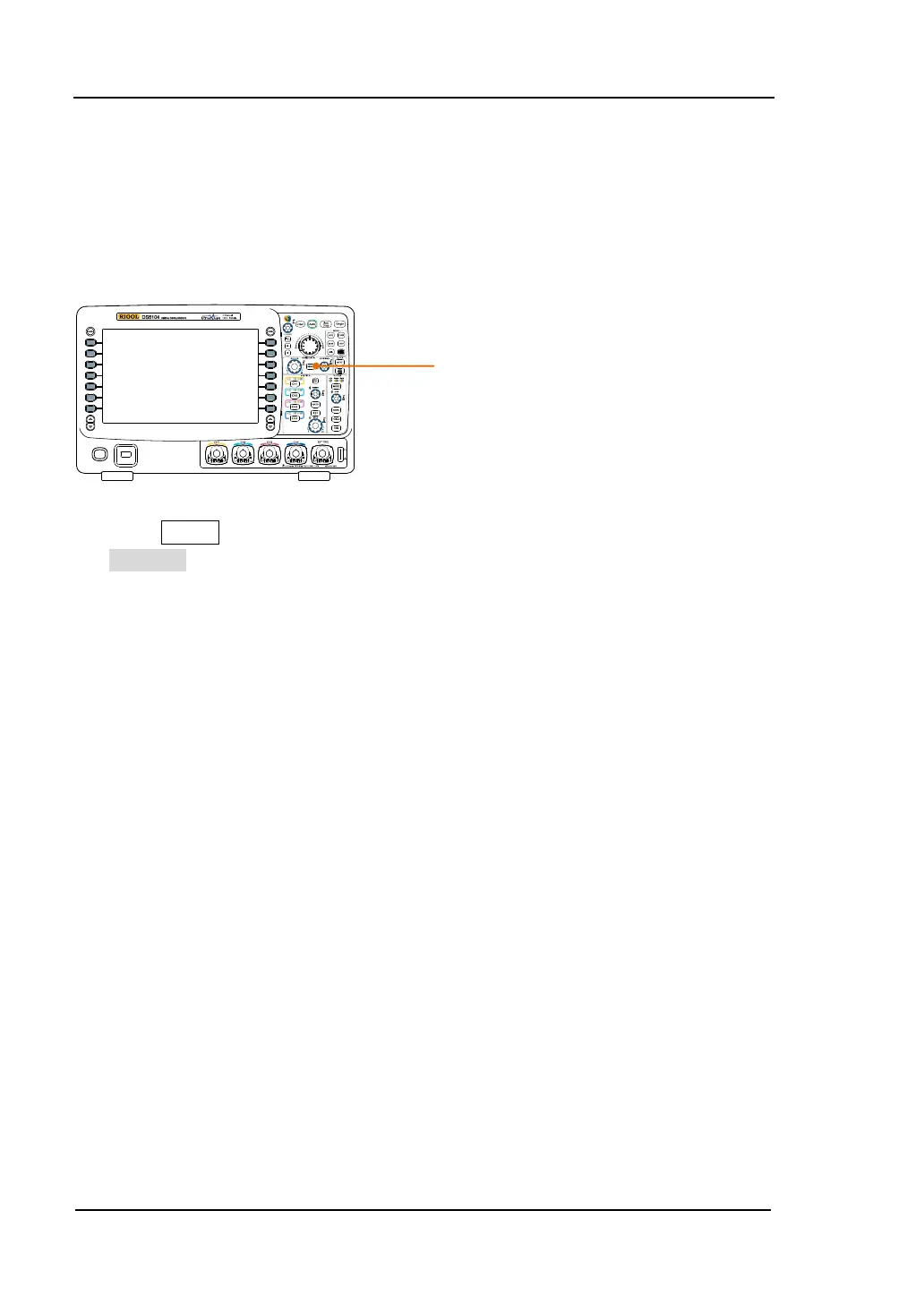

Press the MENU key in the horizontal control area (HORIZONTAL) and then press
the Delayed softkey to turn the delayed sweep on or off. Note that to turn on the
delayed sweep, the current time base mode must be “Y-T” and the “Pass/Fail” is
disabled.
In delayed sweep mode, the screen is divided into two display areas as shown in the
figure below.
