RIGOL
DS6000 User’s Guide
6-17

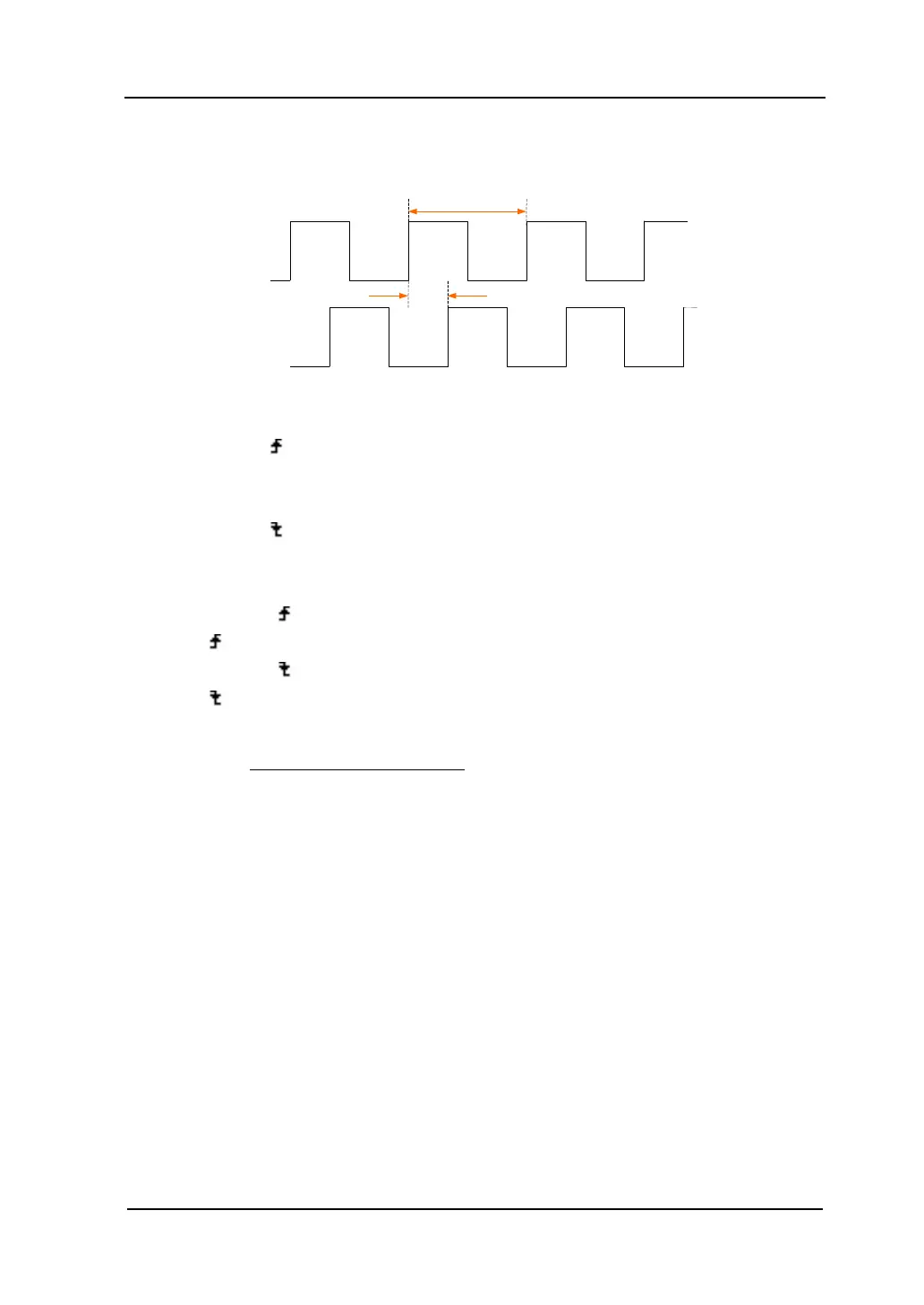

Delay and Phase
Delay
Source A
Source B
Period
1. Delay A→B : the time deviation between the rising edges of source A and
source B. Negative delay means that the rising edge of source A appears later
than that of source B.
2. Delay A→B : the time deviation between the falling edges of source A and
source B. Negative delay means that the falling edge of source A appears later
than that of source B.
3. Phase A→B : phase deviation in degree calculated according to “Delay
A→B ” and the period of source A.
4. Phase A→B : phase deviation in degree calculated according to “Delay
A→B ” and the period of source A.
°360×
ASource of Period The
Delay
=Phase
