RIGOL 7 Protocol Decoding
7-20 DS6000 User’s Guide

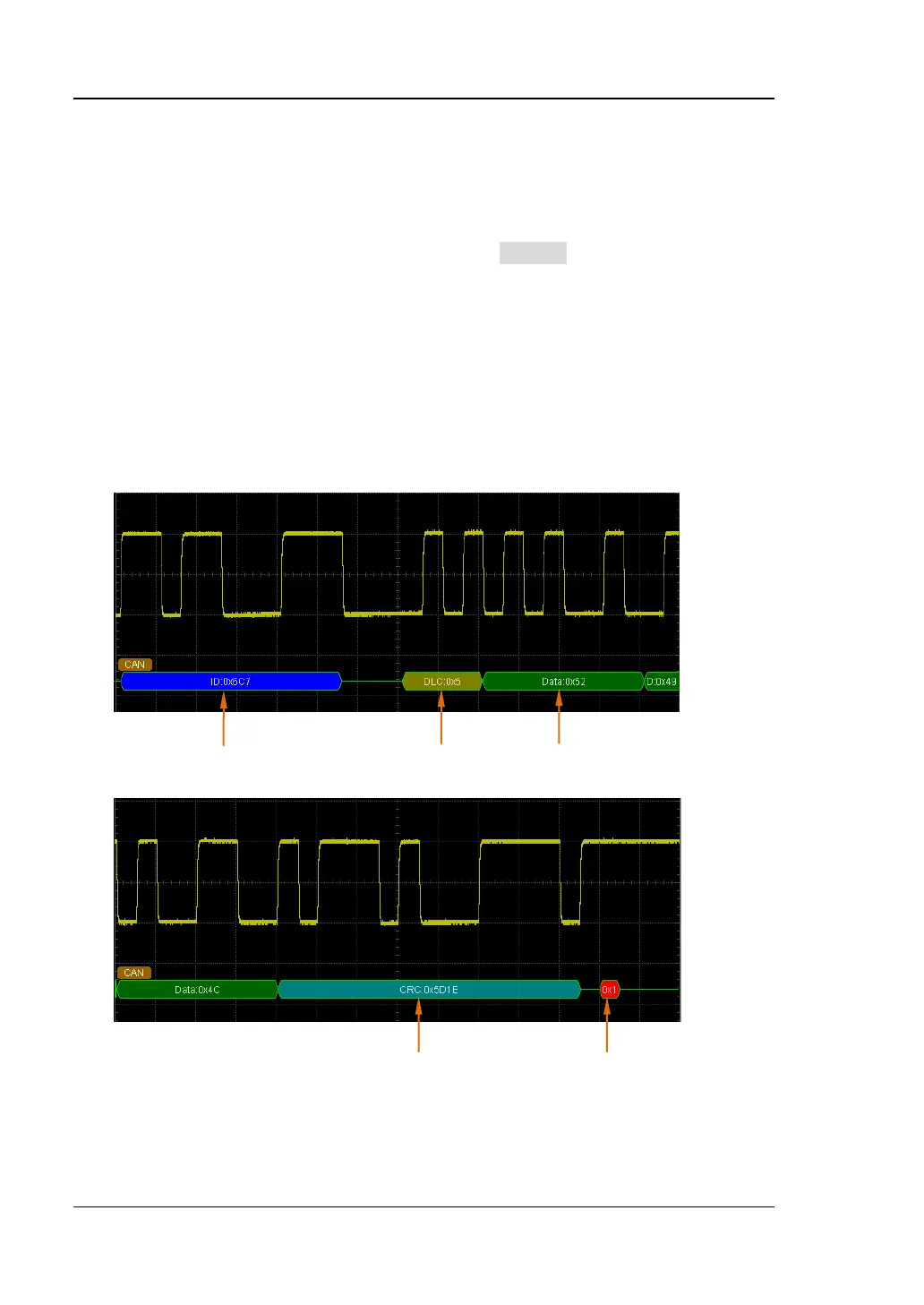

8. Interpreting Decoded CAN Data
 Data Frame ID: hexadecimal number and is expressed by blue patch.
 Data Length Code (DLC): hexadecimal number and is expressed by
chartreuse patch.
 Data: displayed in the format specified in Format (can be hex, decimal,
binary or ASCII). It is expressed by green patch. It is expressed by red
patch if the data frame is lost.
 Cyclic Redundancy Check (CRC): hexadecimal number. When it is valid, it is
expressed by blue-green patch; when error occurs, it is expressed by red
patch.
 Acknowledgement (ACK): when it is valid, it is expressed by green patch;
when error occurs (the detected ACK is 1), it is expressed by red patch.
CRC ACK
Data Frame ID DLC Data
