RIGOL
DS6000 User’s Guide

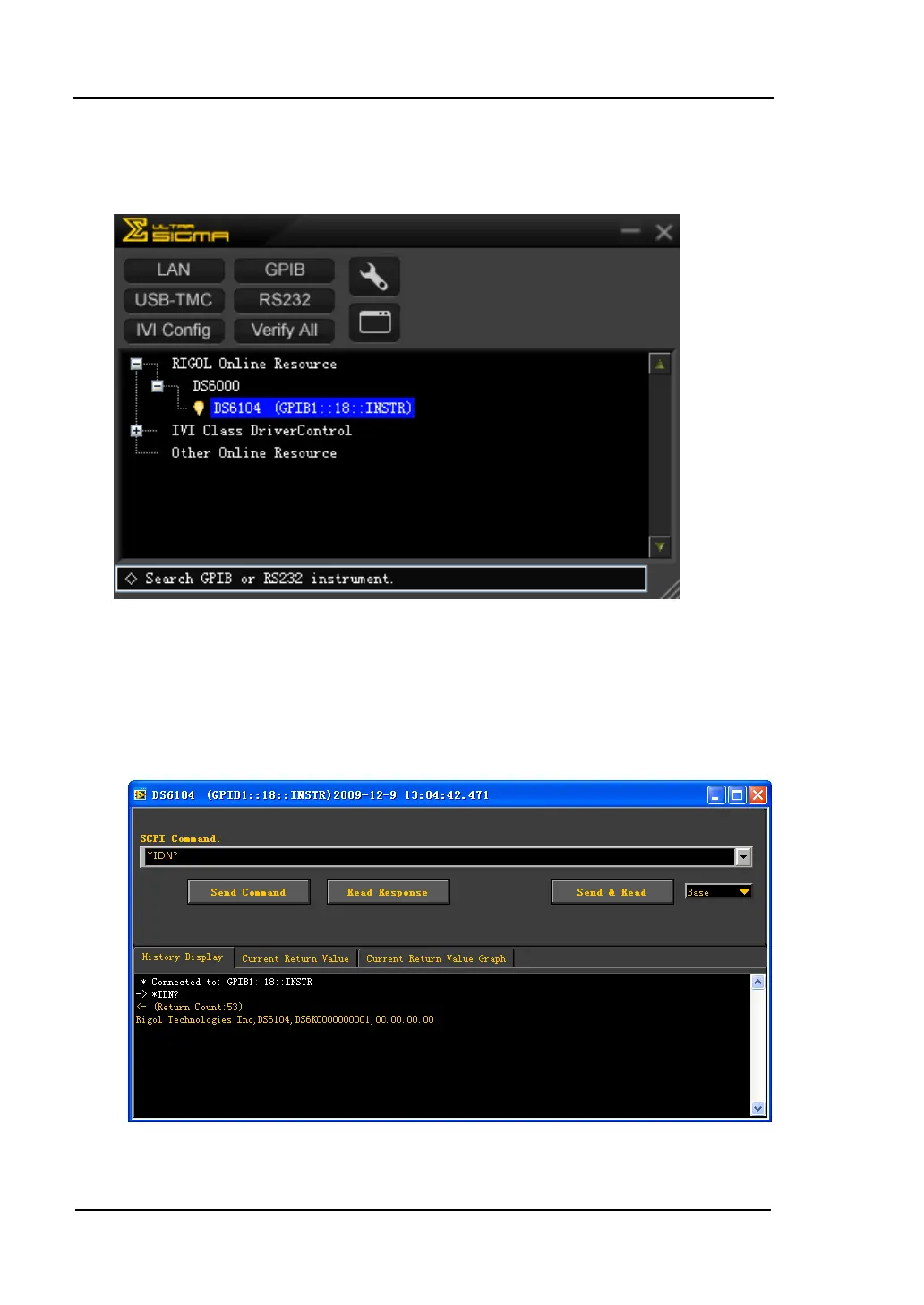

5. View device resource
Click “OK” to return back to the main interface of Ultra Sigma. The resources
found will appear under the “RIGOL Online Resource” directory.
6. Communication Test
Right-click the resource name “DS6104 (GPIB0::18::INSTR)” to select “SCPI
Panel Control” to turn on the remote control command control panel, namely
you can use this panel to send commands and read data. As shown in the figure
below:
