RIGOL Chapter 2 Front Panel Operation
User’s Guide for DSA800/E Series
2-30
Enter contin
uous s
weep mode and
w
ait for trigger
condition
Sweep
again and wait for t
rigger
c
ondition
Select
“
Cont
”
Single sweep status？
Y
N

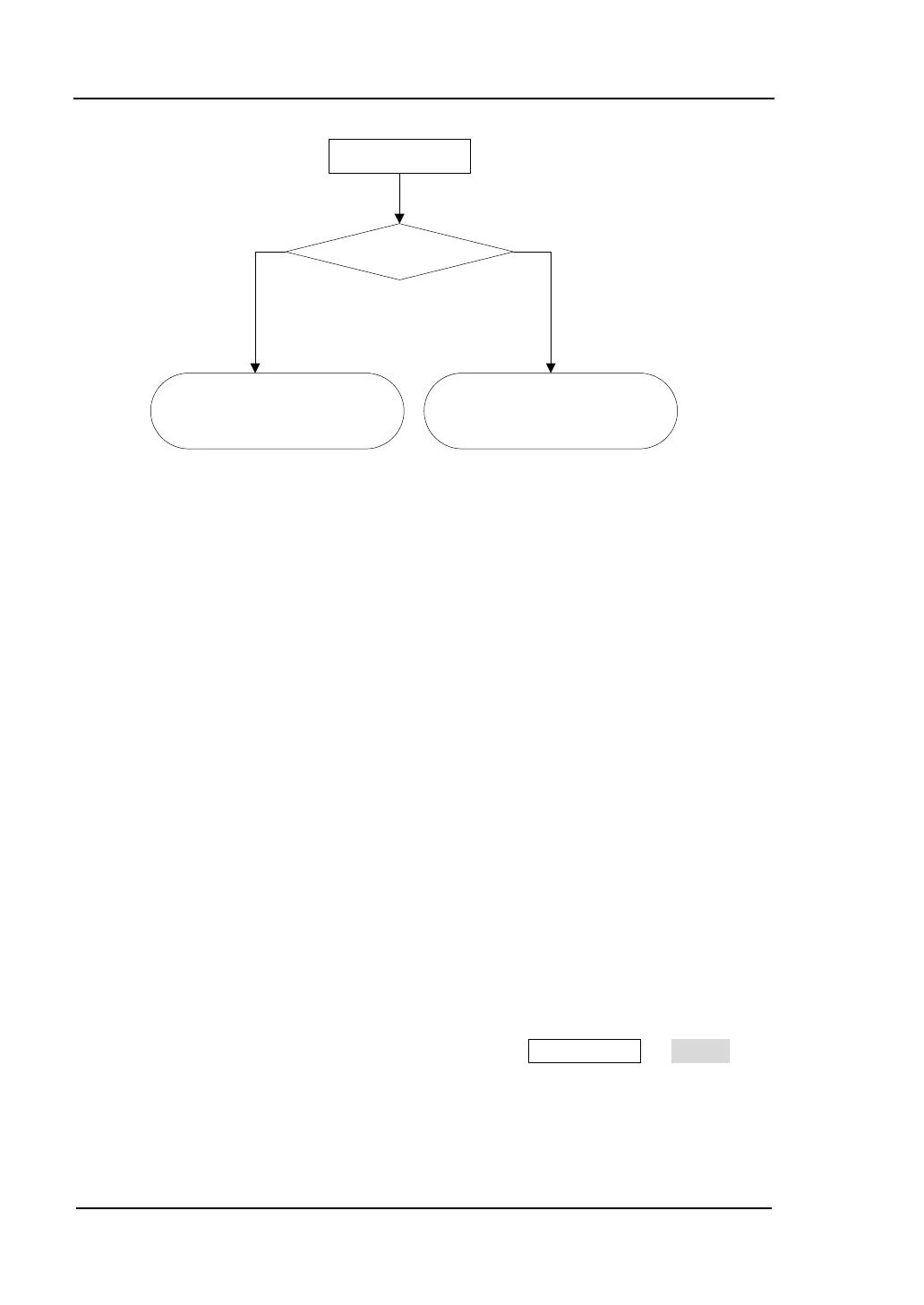

Figure 2-9 Process of Continuous Sweep
Single
In single sweep mode, this menu is used to execute trigger initialization. After that,
the analyzer will execute the specified number of sweeps (or measurements) if the
trigger conditions are satisfied.
Key Points:
 If the instrument is in continuous sweep mode and no measurement function
is enabled, press this key and the system will enter single sweep mode and
execute the specified number of sweeps if the trigger conditions are satisfied.
 If the instrument is in continuous sweep mode and a measurement function is
on, press this key and the system will enter single measurement mode and
execute the specified number of measurements if the trigger conditions are
satisfied.
 If the system is already in single sweep mode, press this key and the system
will execute the specified number of sweeps (or measurements) if the trigger
conditions are satisfied.
 In single sweep mode, trigger initialization (press Sweep/Trig  Single or
send the “:INIT” command through the remote interface) should be executed
before trigger condition judgment.

Rigol DSA815 Specifications

General

Frequency Range	9 kHz to 1.5 GHz
Input Impedance	50 Ω
Input Connector	N-type female
Weight	4.25 kg
Power Supply	100-240 V AC, 50/60 Hz
Phase Noise	-80 dBc/Hz @ 10 kHz offset
Amplitude Accuracy	±1.5 dB
Display	8 inch LCD (800x480 pixels)
Video Bandwidth (VBW)	1 Hz to 3 MHz
Maximum Input Level	+20 dBm
Interfaces	USB, LAN
Resolution Bandwidth (RBW)	100 Hz to 1 MHz
Dimensions	361 mm x 178 mm x 128 mm
