Chapter 1 Quick Start RIGOL
MSO5000 User Guide 1-5
CAUTION
To avoid electric shock, ensure that the instrument is correctly grounded.
Turn-on Checkout
When the oscilloscope is connected to power, press the Power key at the
lower-left corner of the front panel to start the oscilloscope. During the start-up
process, the oscilloscope performs a series of self-tests. After the self-test, the
welcome screen is displayed.
To Connect the Probe
RIGOL provides the passive probe and the logic probe for MSO5000 series. For
specific probe models, please refer to MSO5000 Series Datasheet . For detailed
technical information of the probes, please refer to the specified Probe User Guide.
Connect the passive probe:
1. Connect the BNC terminal of the probe to an analog channel input terminal of
the oscilloscope on the front panel, as shown in Figure 1-5.
2. Connect the ground alligator clip or spring of the probe to the circuit ground
terminal, and then connect the probe tip to the circuit point to be tested.

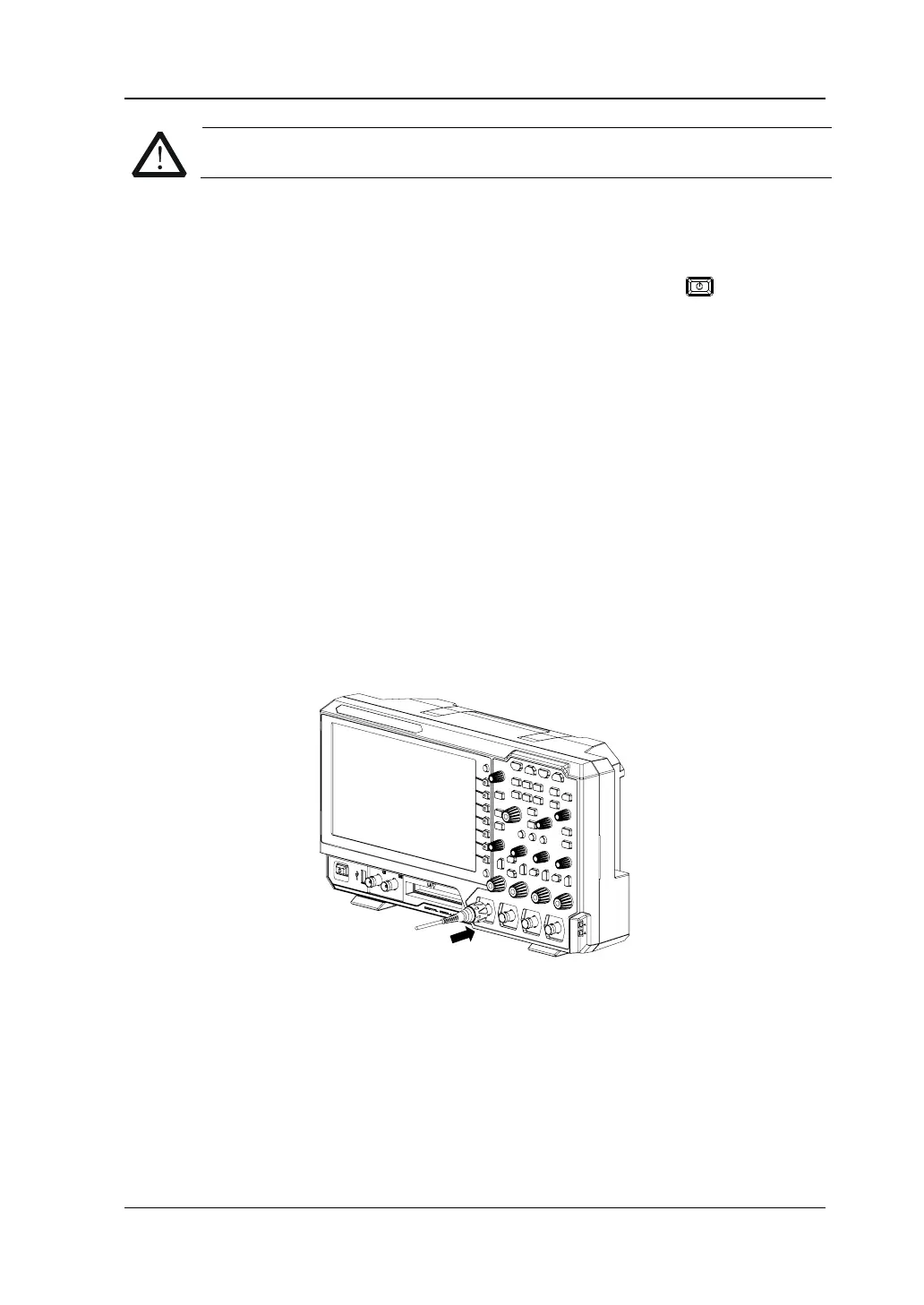

Figure 1-5 To Connect the Passive Probe
After you connect the passive probe, check the probe function and probe
compensation adjustment before making measurements. For detailed procedures,
refer to "Function Inspection" and "Probe Compensation".
Connect the logic probe:
1. Turn off the power supply of the device under test.

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
