Rigol MSO5074 User Manual

Chapter 13 Pass/Fail Test RIGOL
MSO5000 User Guide 13-5
To Enable or Disable the Display of the Statistics
of the Test Results
Press Information continuously to enable or disable the display of the statistics of
the test results. You can also enable the touch screen to tap the icon at the
right-upper corner of the statistics window to close it.

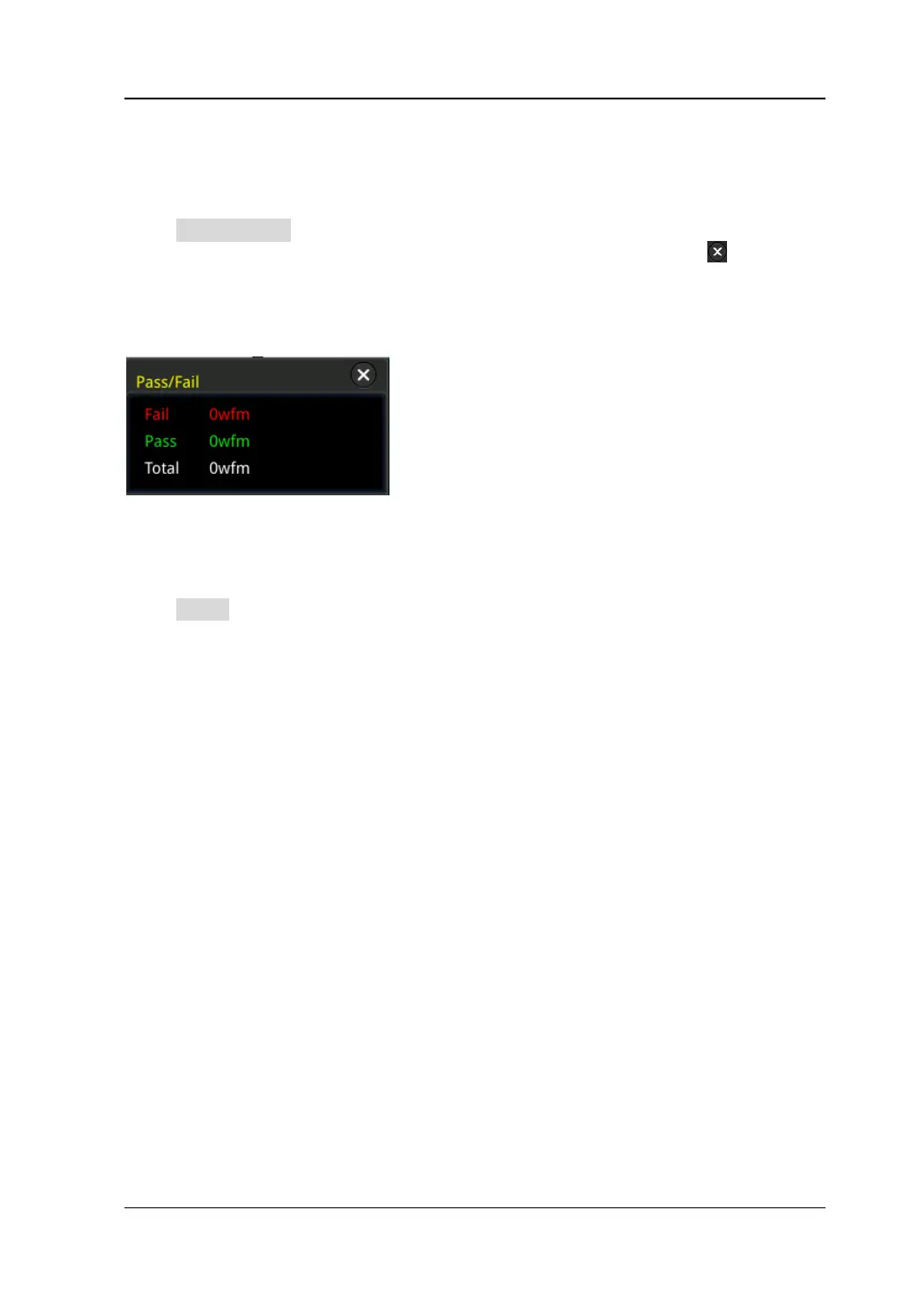

The test results statistics include the number of failed frames, the number of
successful frames, and total number of frames, as shown in the figure below.
Statistics Reset
Press Reset to clear the current test results and execute statistics on the test results
again.

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
