RIGOL Chapter 5 To Trigger the Oscilloscope
5-54 MSO5000 User Guide
Set the conditions for Trigger zone A and Trigger zone B:
Press Zone A or Zone B, rotate the multifunction knob to select "Intersect" or
"Not intersect", then press down the knob to select it. You can also press Zone A or
Zone B continuously to select the condition, or enable the touch screen to tap the
desired condition and select it.

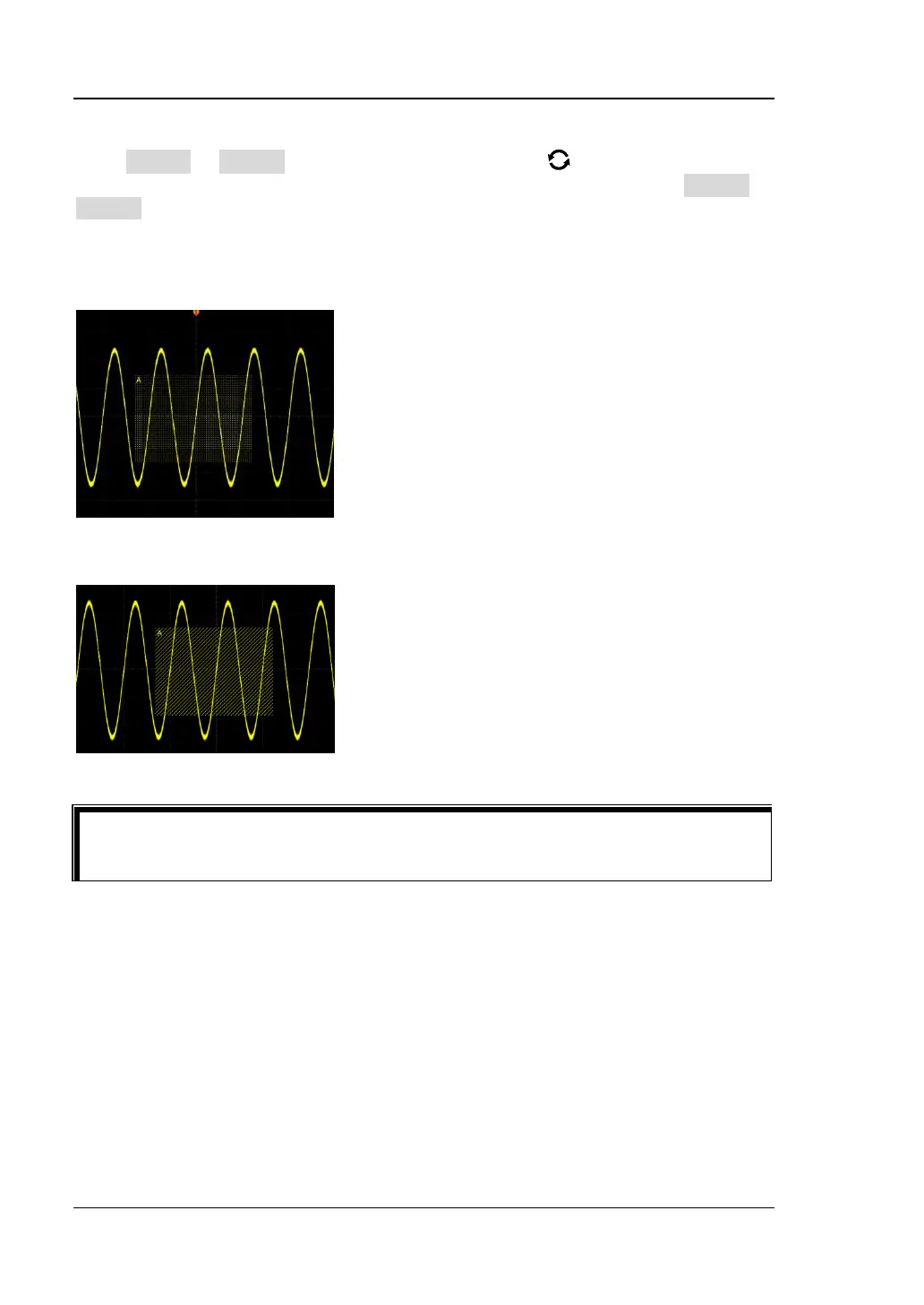

If you enable Zone A, select CH1 as Source A, and select "Intersect" as the condition,
as shown in the figure below.
If you enable Zone A, select CH1 as Source A, and select "Not intersect" as the
condition, the following figure is displayed.
Trigger Output Connector
The trigger output connector ([TRIG OUT]) on the rear panel of MSO5000 series
can output trigger signals (hardware trigger) determined by the current setting.
Tip
If you enable both Trigger zone A and Trigger zone B, then perform the "A&&B"
operation, and it will become the final trigger condition.

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
