Rigol MSO5074 User Manual

RIGOL Chapter 21 Remote Control
21-2 MSO5000 User Guide
Remote Control via USB
1. Connect the device
Use a USB cable to connect the oscilloscope (USB DEVICE interface) with the PC
(USB HOST interface).
2. Install the USB driver
This oscilloscope is a USB-TMC device. After you connect the oscilloscope to the
PC properly and power it on for the first time (the oscilloscope will be
automatically configured with the USB interface). In this case, "Found New

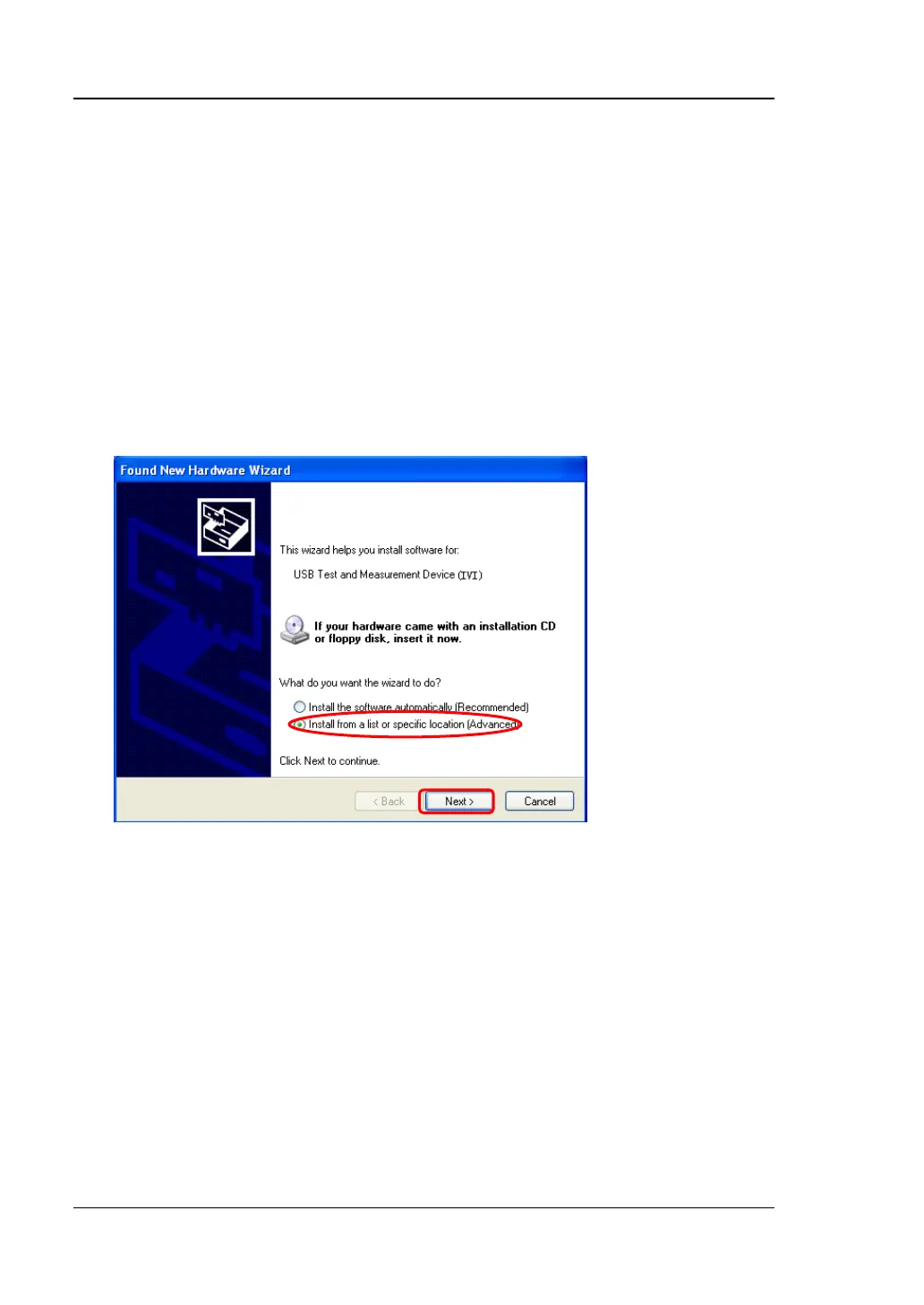

Hardware Wizard" dialog box appears on the PC. Please install "USB Test and
Measurement Device (IVI)" according to the instructions. The steps are as
follows:
1
2

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
