Chapter 1 Quick Start RIGOL
MSO5000 User Guide 1-15
⚫ Horizontal SCALE: indicates the horizontal time base knob. You can rotate
the knob to modify the horizontal time base. Turn it clockwise to decrease the
time base, and turn it counterclockwise to increase the time base. During the
modification, waveforms of all the channels will be displayed in expanded or
compressed form, and the time base message (e.g. ) at the upper
section of the screen would change accordingly. Press down this knob to quickly
switch the horizontal time base adjustment mode between "Coarse" and "Fine".

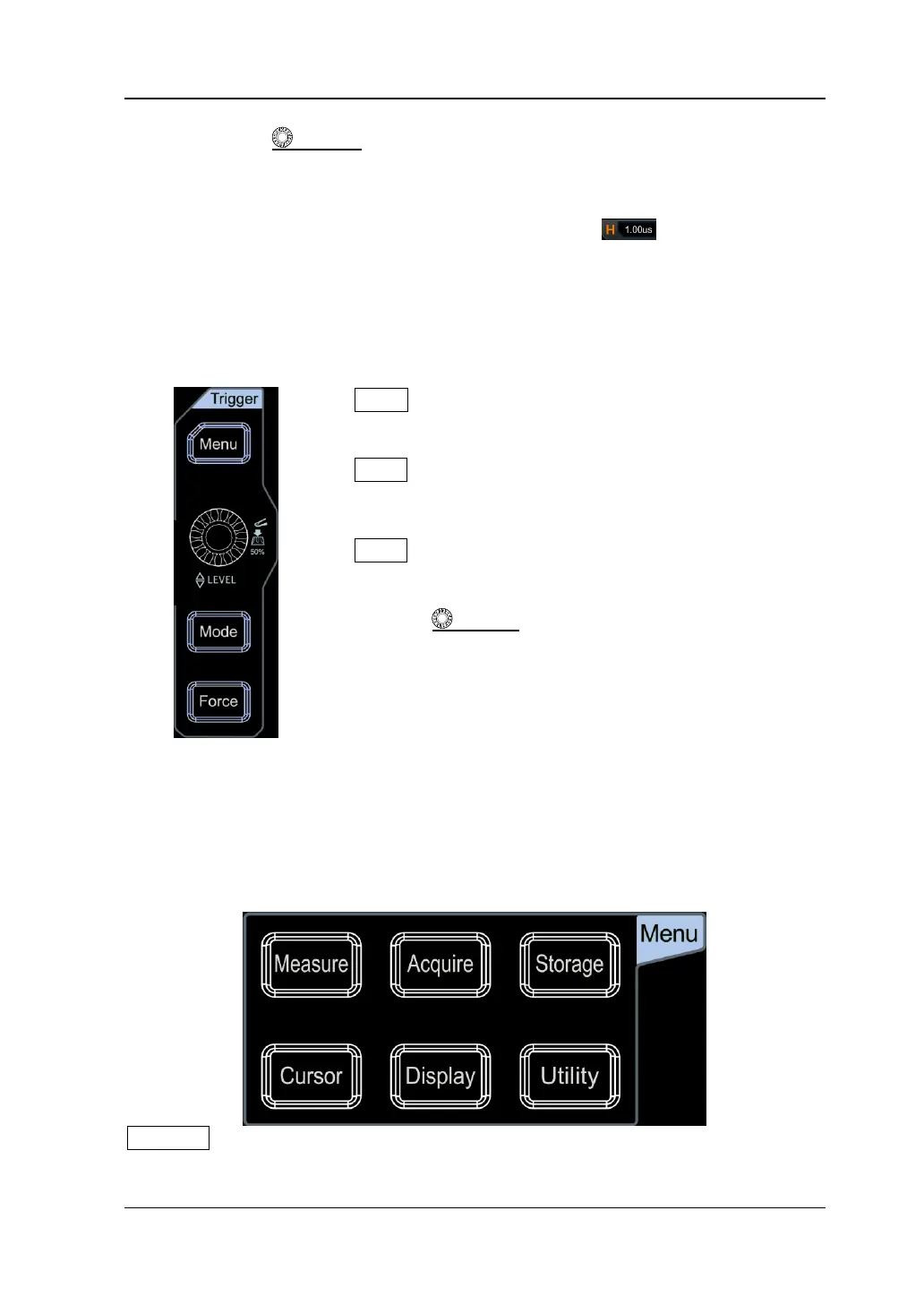

Trigger
⚫ Menu: Press this key to open the trigger operation
menu. This oscilloscope provides various trigger types.
⚫ Mode: Press this key to switch the trigger mode to Auto
Normal, or Single.
⚫ Force: Press this key to generate a trigger signal
forcibly.
⚫ Trigger LEVEL: modifies the trigger level/threshold
level. Turn it clockwise to increase the level, and turn it
counterclockwise to decrease the level. During the
modification, the trigger level line would move up and
down and the trigger level/threshold level value at the
upper-right corner of the screen would change
accordingly. Press down the knob to quickly set the
trigger level to 50% of the waveform peak-peak value.
Function Menu
Measure: Press this key to enter the measurement setting menu. You can set the
measurement source, enable or disable the all measurement function, the statistical

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
