Chapter 12 Reference Waveform RIGOL
MSO5000 User Guide 12-3
⚫ Press VOffset, then rotate the multifunction knob or use the pop-up
numeric keypad to set the vertical offset of the reference waveform. You can
also enable the touch screen and use the "Drag" gesture to adjust the vertical
offset.
To Save to Internal Memory
Press SaveToRef to save the displayed waveform for the specified source to the
internal memory as the reference waveform.
Note: This operation only saves the reference waveform to the volatile memory, and
the waveform will be cleared at power-off.
To Clear the Display of the Reference Waveform
Press Clear to clear the display of the current reference waveform on the screen.
Meanwhile, the VScale and VOffset menus for the reference waveform are grayed
out and disabled. You can also press CLEAR on the front panel to clear the display of
the reference waveforms of all the reference channels.
Note: This operation only clears the display of the reference waveform on the screen,
and the reference waveform is still saved in the memory.

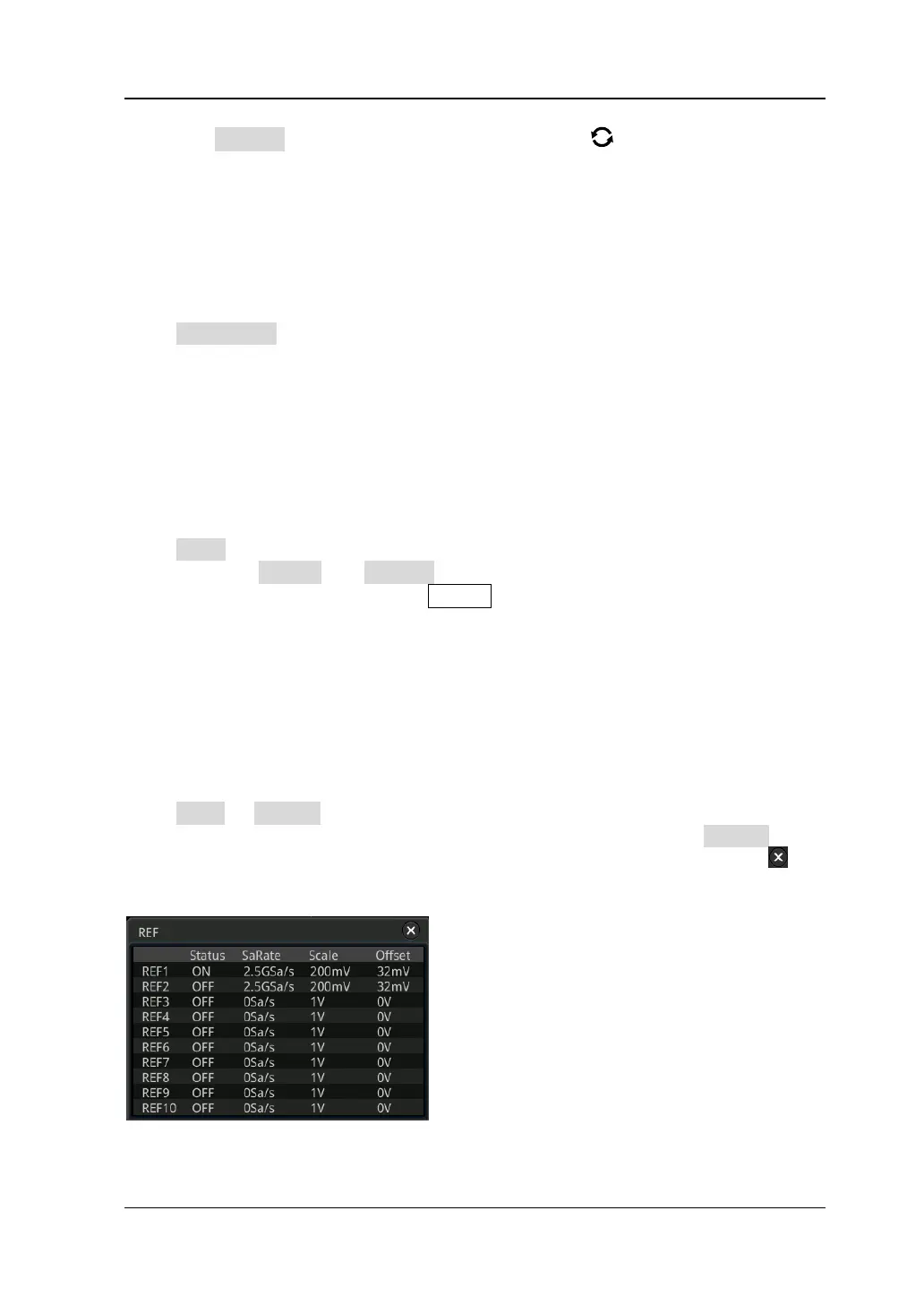

To View Details of the Reference Waveform
Press More → Details, and the detailed information about all the reference
waveforms will be displayed on the screen in the form of a list. Press Details again
to close the details list. You can also enable the touch screen to tap the icon at
the right-upper corner of the table to close it.

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
