RIGOL Chapter 1 Quick Start
1-24 MSO5000 User Guide
⚫ Pinching & stretching in the horizontal direction can adjust the horizontal time
base of the waveform.
⚫ Pinching & stretching in the vertical direction can adjust the vertical scale of the
waveform.

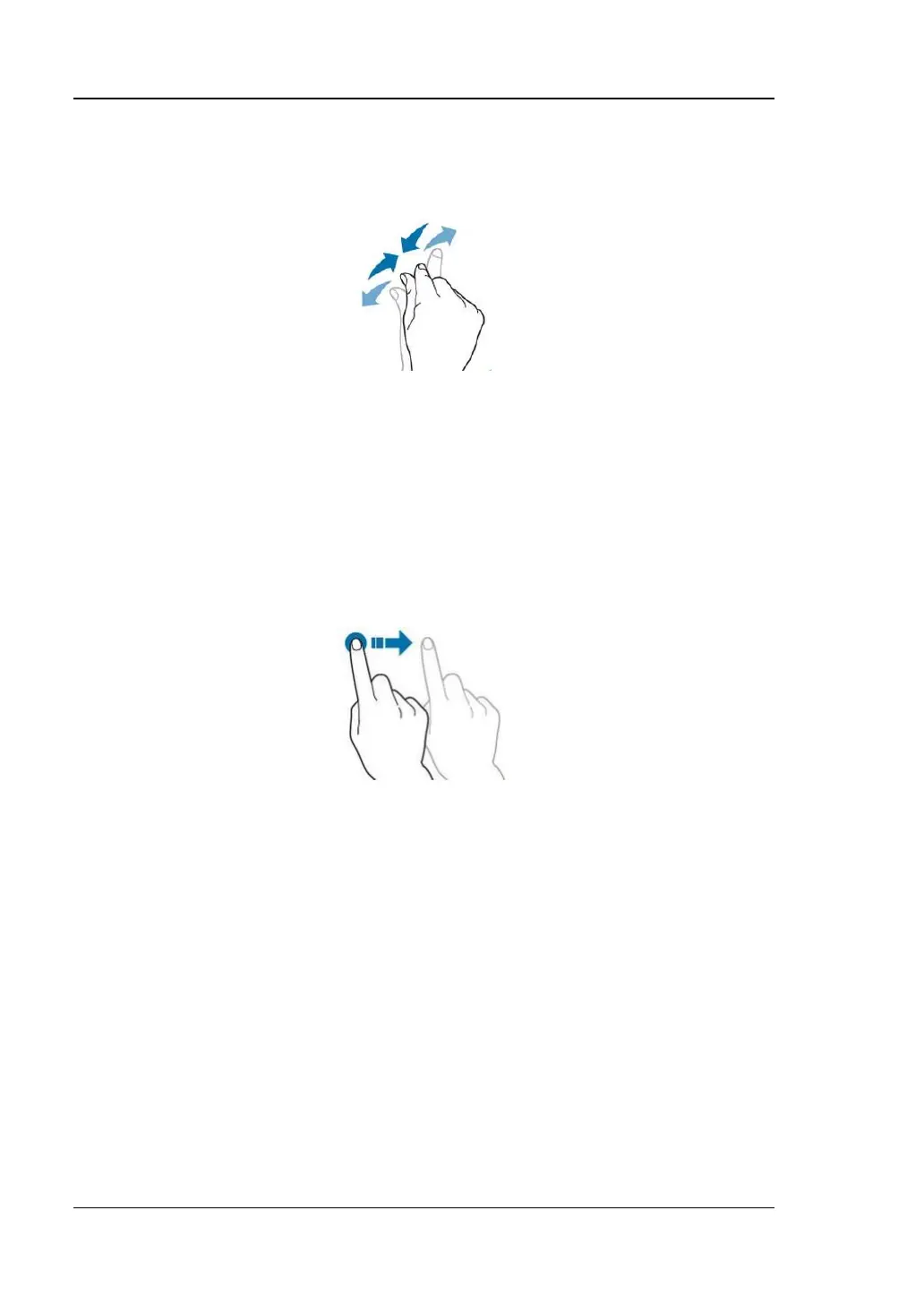

Figure 1-15 Pinch & Stretch Gesture
Drag
Use one finger to select the object, and then drag the object to a destination place,
as shown in Figure 1-16. The functions of the drag action include:
⚫ Drag the waveform to change its position or offset.
⚫ Drag the window controls to change the positions of the window (e.g. numeric
keypad).
⚫ Drag the marker to change the position of the marker.
Figure 1-16 Drag Gesture
Rectangle Drawing
Enable the function navigation, and then tap the "Draw rect" icon to switch to the
rectangle drawing mode. Drag a finger from upper left to lower right across the
screen to draw a rectangle on the screen, as shown in Figure 1-17 (a). Move your
finger away from the screen, and then a menu is displayed on the screen. At this time,
you can tap to select "Trigger zone A", "Trigger zone B", "Histogram", "Horizontal
zoom in", "Vertical zoom in", or "Waveform zoom in". Drag a finger from lower right
to upper left across the screen to draw a rectangle on the screen, as shown in Figure
1-17 (b). Move your finger away from the screen, and then a menu is displayed on
the screen. At this time, you can tap to select "Trigger zone A", "Trigger zone B",
"Histogram", "Horizontal zoom out", "Vertical zoom out", or "Waveform zoom out".

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
