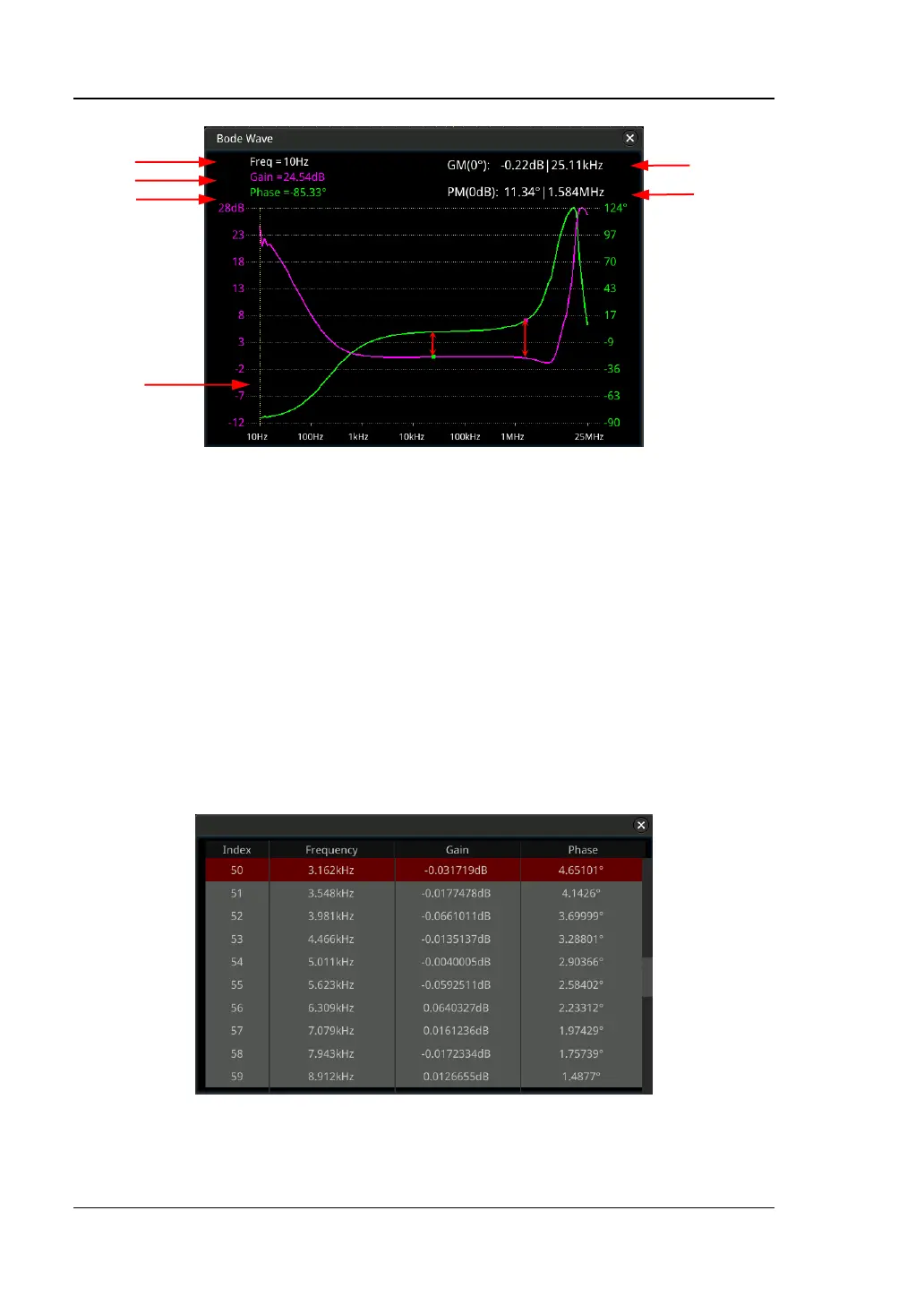

1. Frequency: indicates the X-axis value of the cursor in the bode plot.
2. Gain: indicates the Y-axis value of the crossover point between the cursor and
the purple curve.
3. Phase: indicates the Y-axis value of the crossover point between the cursor and
the green curve.
4. Cursor: for details, refer to "Cursor" section in this chapter.
5. GM: gain margin. It is the gain measurement difference between the value at 0
dB and the frequency point at 0-degree phase. GM = 0 dB - Gain Measurement
Result
6. PM: phase margin. It is the difference in phase between the phase at 0 dB gain
frequency point and 0-degree phase.
Chart
4
3
2
1
6
5
PM
3GM

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
