Rigol MSO5074 User Manual

RIGOL Chapter 17 Function/Arbitrary Waveform Generator (Option)
17-6 MSO5000 User Guide
offset or low level value of the current signal.
3. Set the impedance
Press Impedance continuously to set the output impedance of the
Function/Arbitrary Waveform Generator. It can be set to "HighZ" or "50Ω".

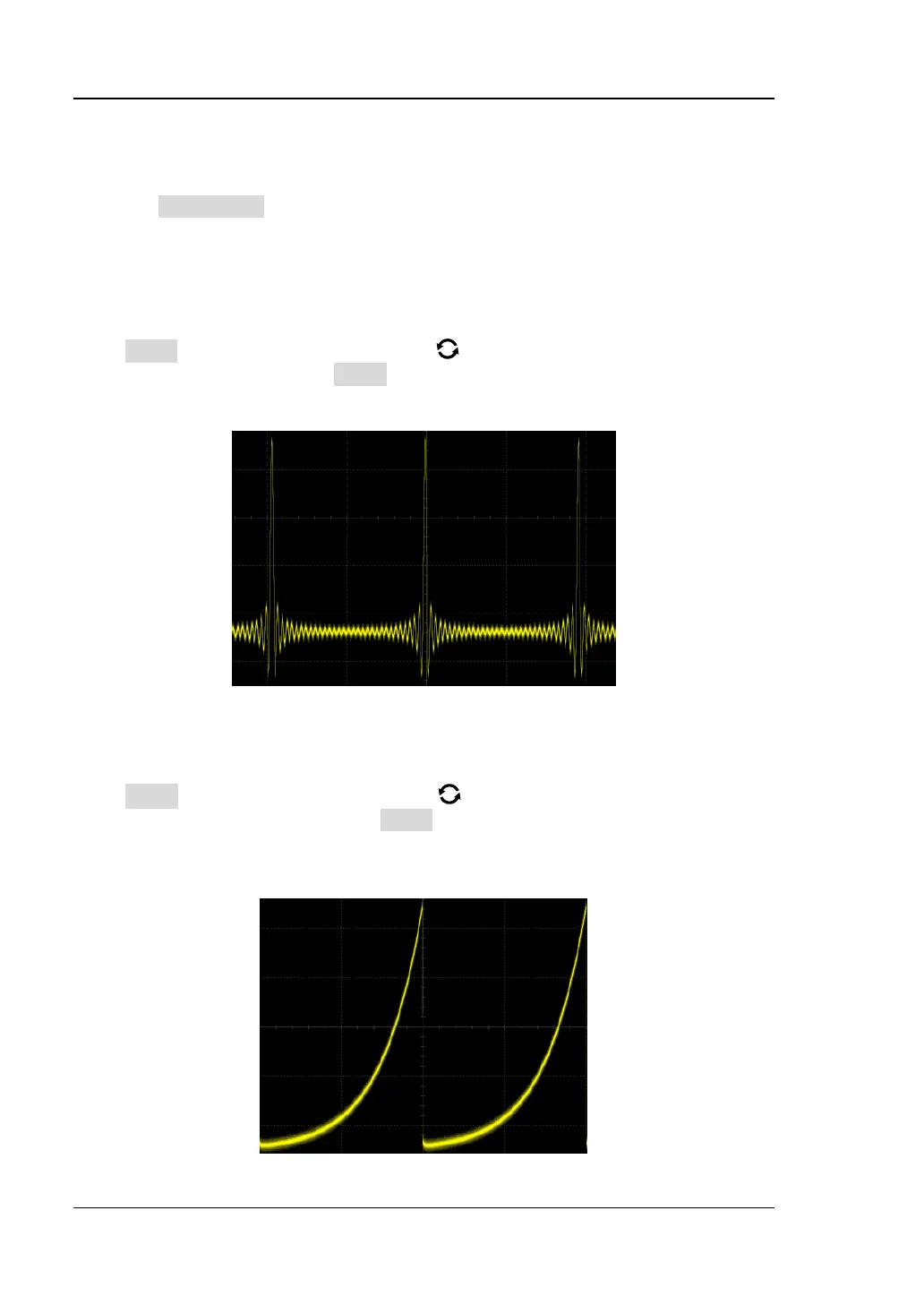

Sinc
Press Wave, rotate the multifunction knob to select "Sinc". Press down the knob
to select it. You can also press Wave continuously or enable the touch screen to
select it. You can set the parameters for the Sinc waveform (as shown in the figure
below). For setting methods, refer to descriptions in "To Output Sine".
Figure 17-3 Sinc
Exp.Rise
Press Wave, rotate the multifunction knob to select "Exp.Rise ". Press down the
knob to select it. You can also press Wave continuously or enable the touch screen
to select it. At this time, you can set the parameters for the Exp.Rise waveform (as
shown in the figure below). For setting methods, refer to descriptions in "To Output
Sine".
Figure 17-4 Exp.Rise

Rigol MSO5074 Specifications

General

Bandwidth	70 MHz
Channels	4
Timebase Accuracy	± 2 ppm
Operating Temperature	0 °C to +40 °C
Display	800x480
Waveform Capture Rate	500, 000 wfms/s
Vertical Resolution	8 bits
Interfaces	USB Host, USB Device, LAN, HDMI
Input Impedance	1 MΩ
Trigger Types	Edge, Slope, Pulse, Video, Pattern, Duration, Timeout, Window, Runt
Sample Rate	8 GSa/s
