Chapter 2 Functions of the Front Panel of GPSA RIGOL
RSA3000E User Guide 2-49
Multichan Pwr
Measurement Interface:

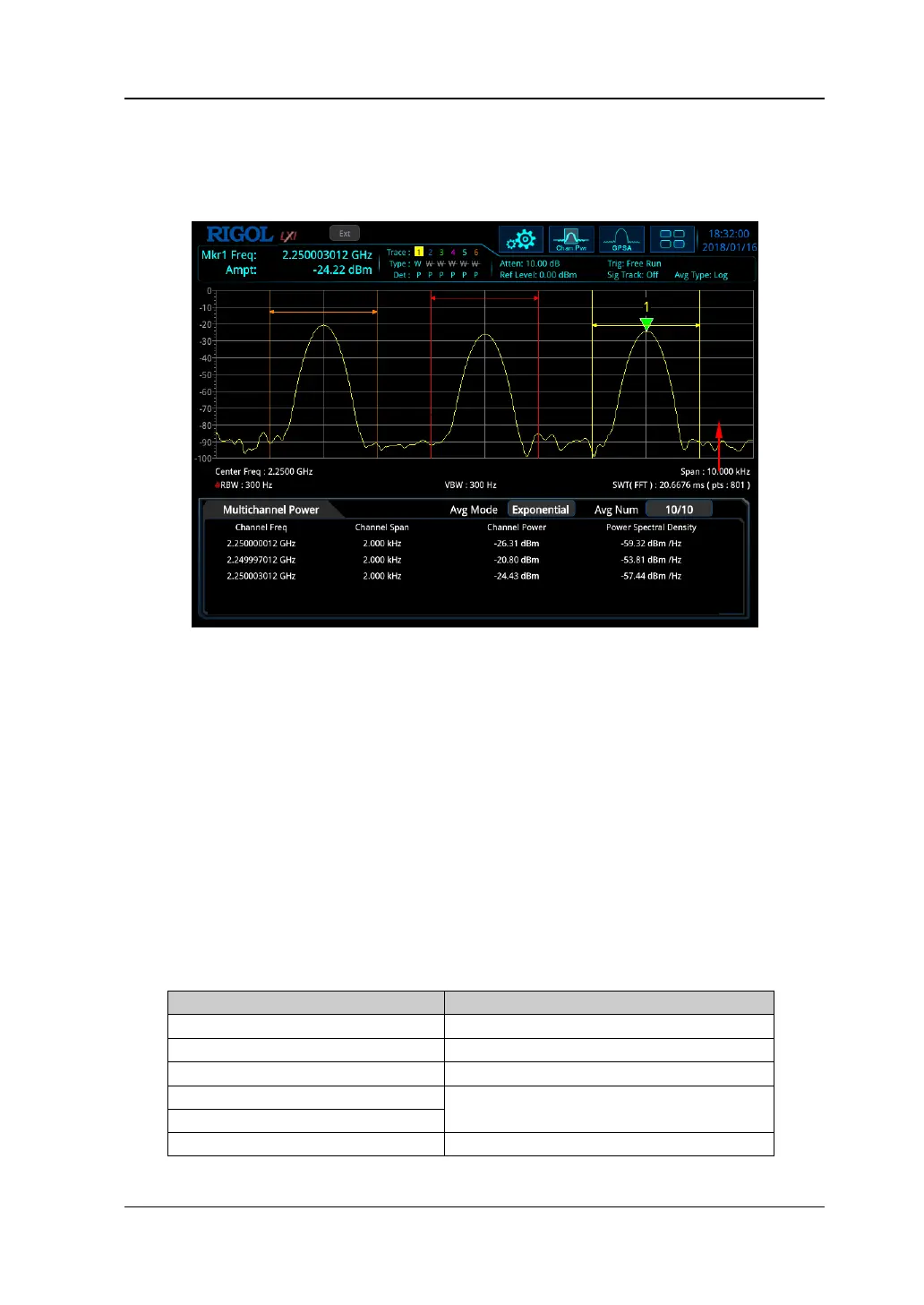

Figure 2-7 Multi-channel Power Measurement Interface
Measurement Results: channel power and power spectral density
Channel Power: power within the channel span.
Power Spectral Density: power (in dBm/Hz) normalized to 1 Hz within the
channel span.
Measurement Parameters: average count, average mode, auto average, channel
frequency, and channel span.
1. Avg Number
Specifies the number of times for averaging the measurement results. You can
use the numeric keys, the knob, or arrow keys to modify this parameter; you can
also use the touch screen to modify the parameter.
Table 2-38 Average Count for Multi-channel Power Measurement
1
Left/Right Arrow Key Step
