Marker Measurement
Marker
Marker is a triangle sign (as shown in the following figure), which is used for marking
the point on the trace. Through the marker, you can read the amplitude and
frequency of the point on the trace, or the sweep time point.

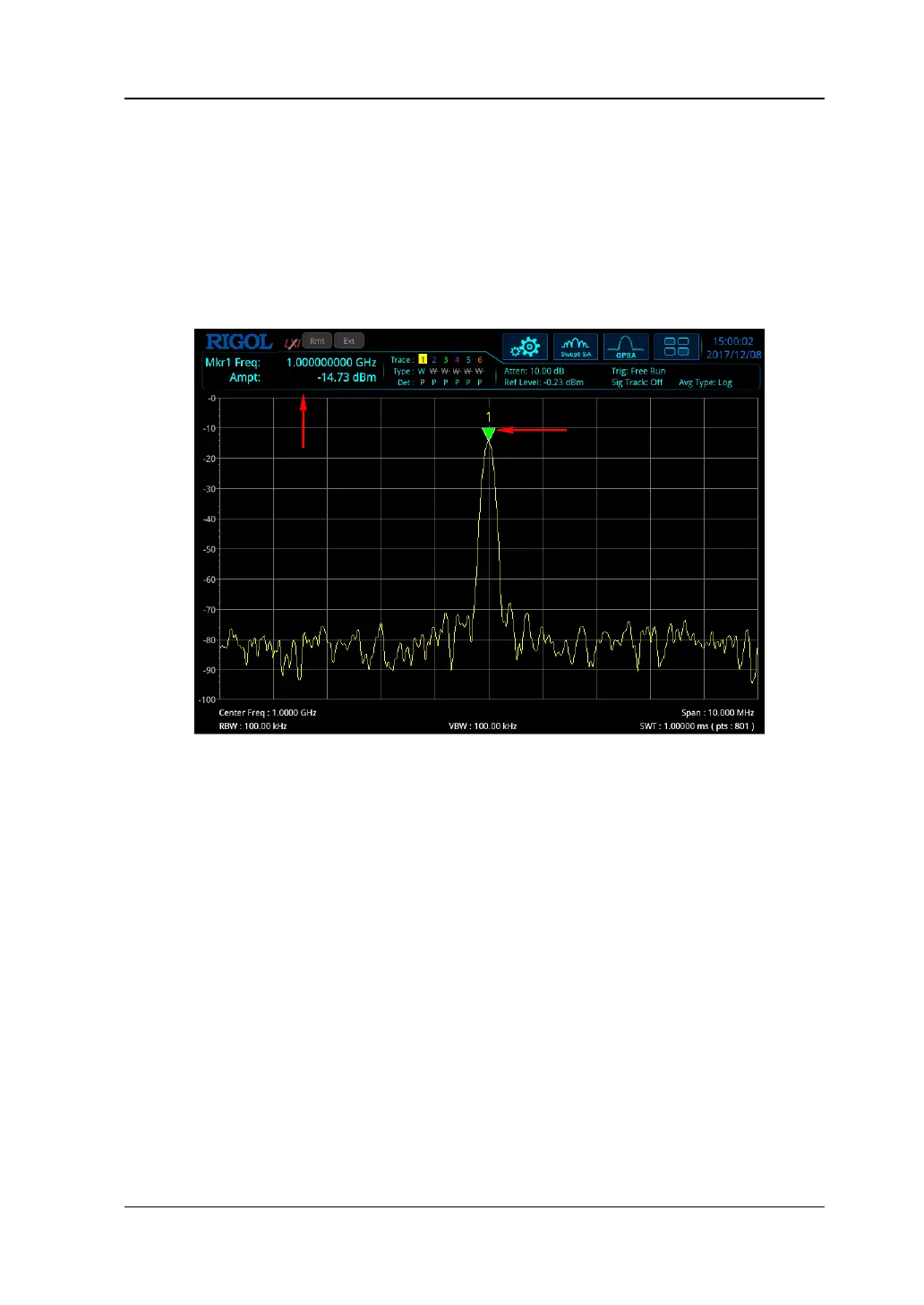

Figure 2-14 Marker
Remarks:
RSA3000E offers 8 markers. Each time, one marker or one pair of markers can
be turned on.
In the Marker menu, you can use the numeric keys, the knob, or the arrow keys
to modify frequency or time; to view the readout of different points on the trace.
You can also use the touch screen to do the above things.
