RIGOL Chapter 4 Functions of the Front Panel of EMI
4-30 RSA3000E User Guide
Marker Measurement
Marker

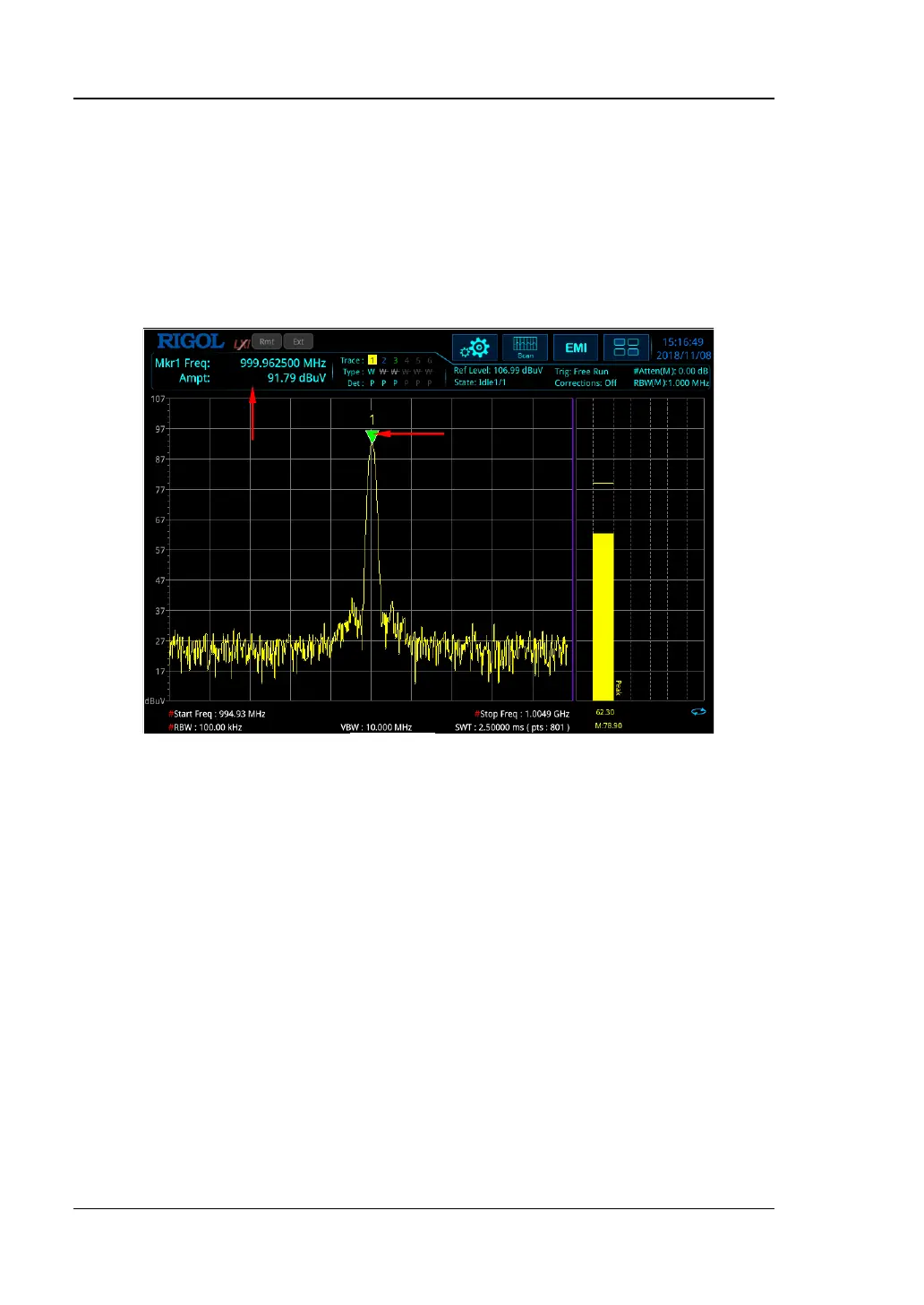

Marker is a triangle sign (as shown in the following figure), which is used for marking
the point on the trace. You can read the amplitude and frequency of each point on
the trace via marker.
Figure 4-2 Marker
Remarks:
RSA3000E offers 8 markers, and only a single marker or one pair of markers can
be turned on each time.
In the Marker menu, you can use the numeric keys, the knob, or the arrow keys
to modify frequency or time; to view the readout of different points on the trace.
You can also use the touch screen to do the above things.
