Trace
Press Trace to set the parameters of various traces in VSA measurement.
Selected Trace
RSA3000E series spectrum analyzer can display at most 4 traces synchronously
(when you select a different Window Layout, the trace order is displayed differently).
The selected trace window is highlighted, as shown in the following figure.

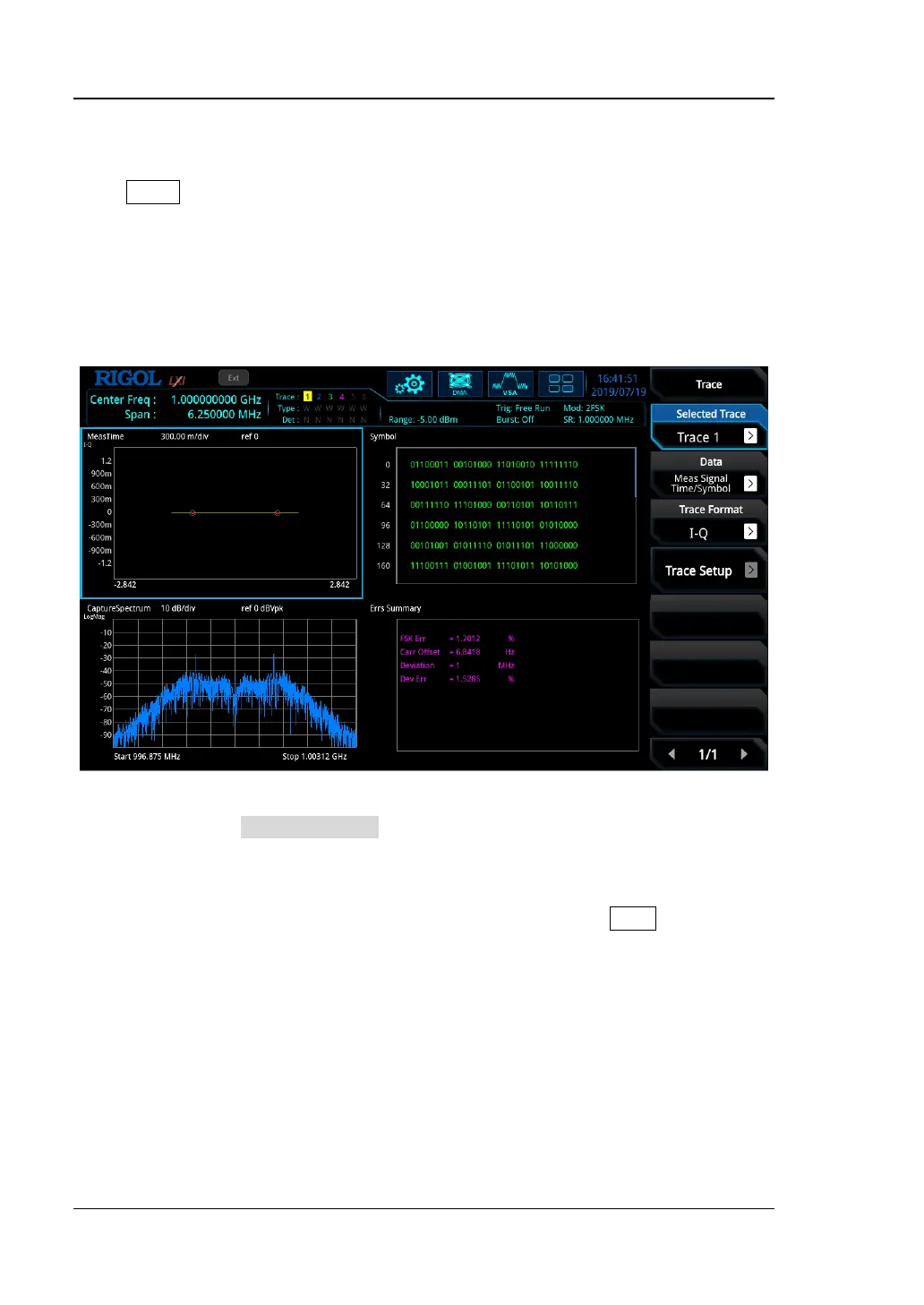

Figure 5-3 Trace Display
After activating the Selected Trace menu, select the corresponding trace number
to set the relevant parameters for the specified trace.
Note: The trace currently displayed on the screen can be saved to the internal or
external memory. If needed, you can recall it at any time. Press Save to save it
according to descriptions in "Save".
