Chapter 1 Quick Start RIGOL
RSA3000E User Guide 1-23
EMI Mode User Interface

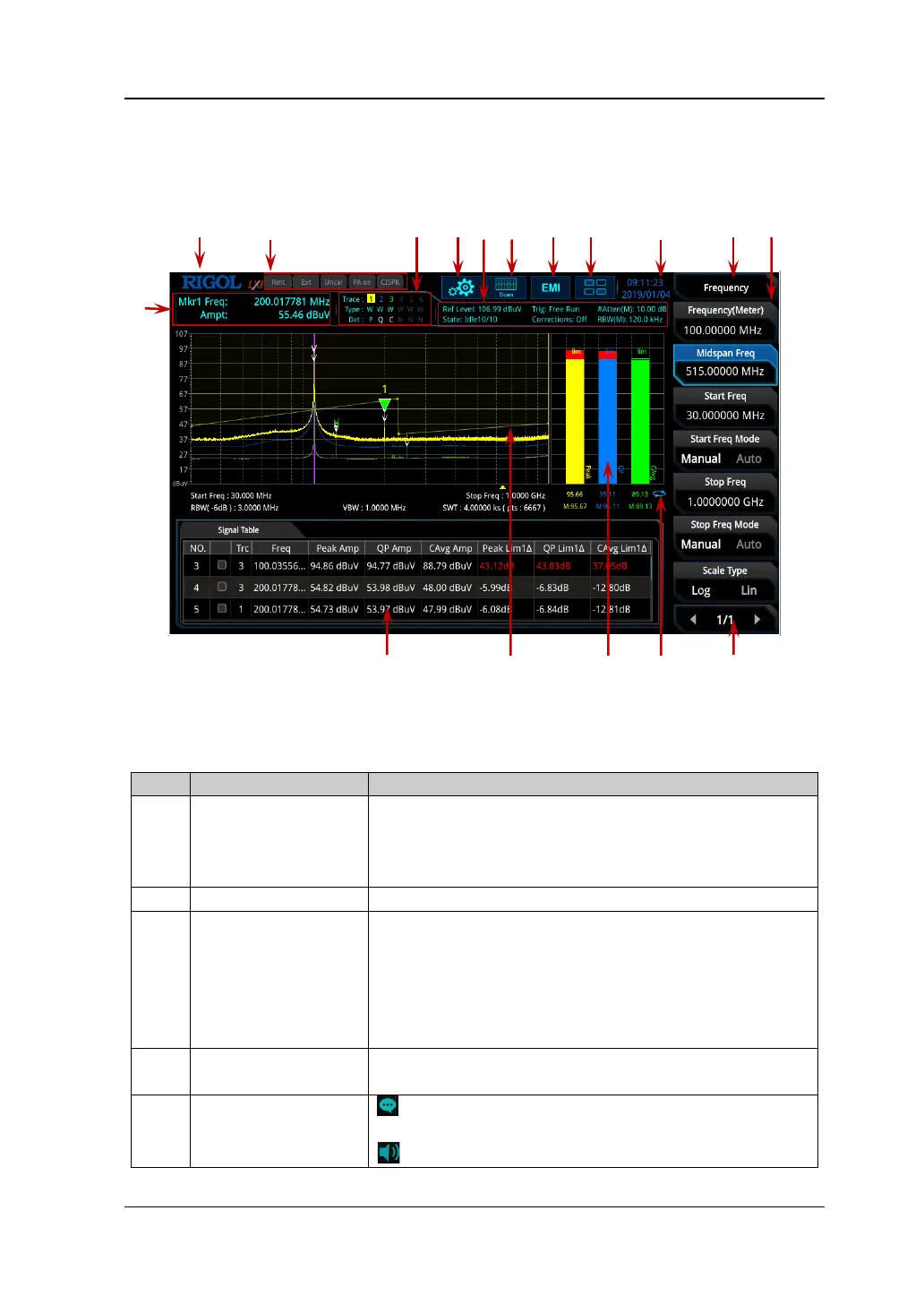

The user interface of EMI mode is shown in the following figure.
Figure 1-11 User Interface (EMI Mode)
Table 1-6 User Interface Icons
No.
Name
Description
1
Marker
measurement
result
Displays the current measurement results for the
marker (when no marker exists, the measurement
results display Frequency(Meter), Midspan Freq, and
Span).
2
RIGOL
Company logo.
3
System status
Rmt: indicates remote operation.
Ext: indicates the external reference.
Uncal: indicates that the measurement has not be
calibrated.
PA on: indicates that the preamp has been enabled.
CISPR: indicates that the EMC standard.
4
Trace indicator
[1]
Displays information about the trace and the
detector.
5
Information setting
: indicates messages, such as the prompt
messages, alarm messages, and error messages.
: indicates the speaker. You can tune it up and
2 3 4 5 6 7 8 9 10 11 12
1
17 16 15 14 13
