RIGOL Chapter 1 Quick Start
1-24 RSA3000E User Guide
down to increase and decrease the speaker volume,
or set it to mute .
: indicates the network settings. You can
configure network parameters.
: unlocks the front panel keys; : locks the
front panel keys.
: unlocks the touch screen; : locks the touch
screen.
: indicates that no USB storage device is inserted;
: indicates that a USB storage device has been
Displays measurement settings.
Displays the currently selected measurement
function.
Displays the currently selected working mode.
Clicks/Touches the icon to display the function
keypad interface.
Displays the system time.
Displays the currently selected menu name.
Displays the menu item of the current function.
Displays the current page and the total number of
pages.
measurement
: indicates continue; : indicates single.
Displays the histogram of the meter and its
parameter information.
Displays the scanned spectral trace and the setting
information after the pre-scan is performed.
Signal table display
area
Displays the searched signal, which correspond to
the marks in the trace.
Note
[1]
:

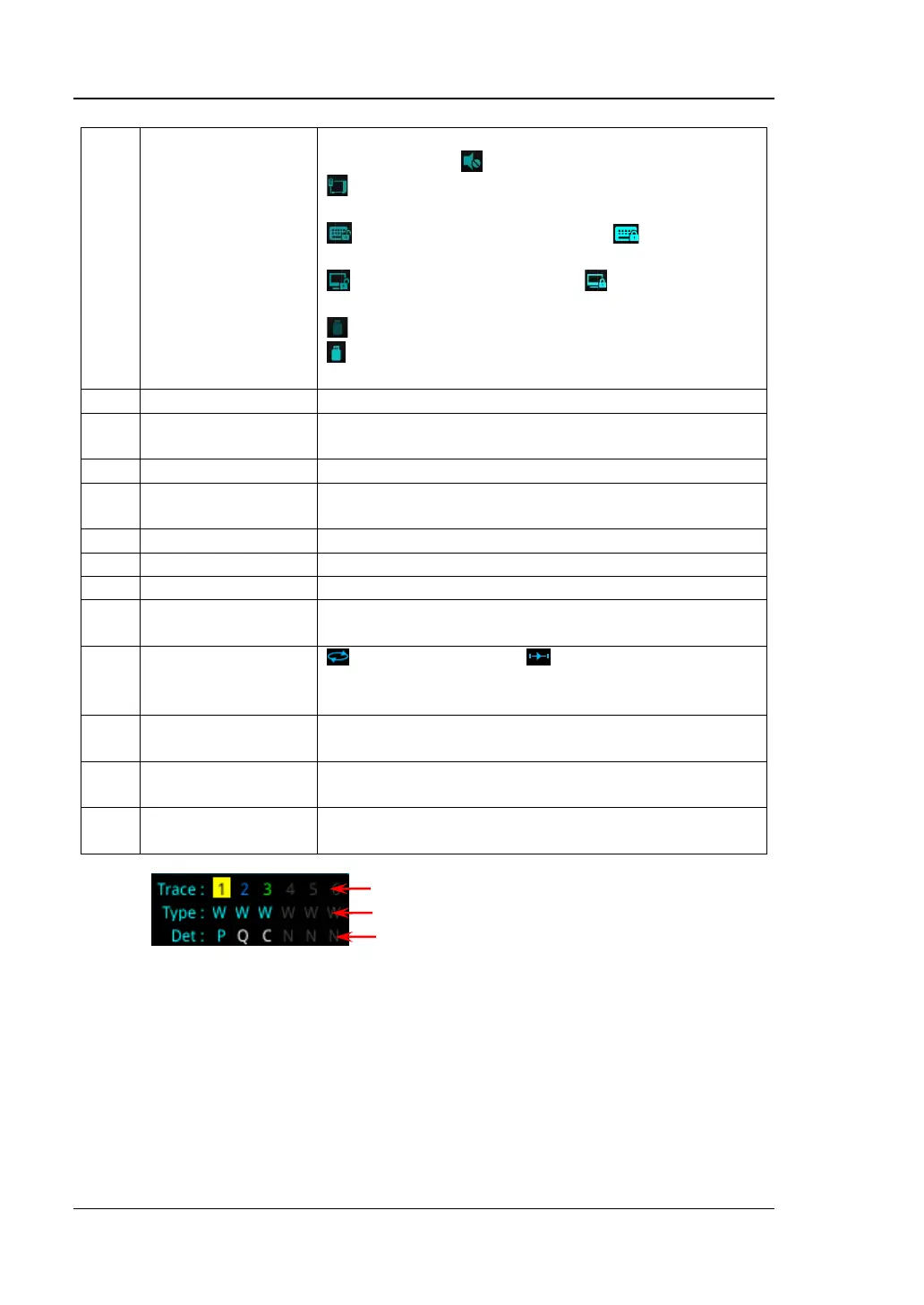

The display of the trace indicator is shown in the following figure:
The first line displays the trace number. The color of the number is the same as that of
the trace. EMI mode only supports 3 traces.
The second line displays the trace type, including W (Clear/Write), A (Trace Average), M
(Maximum Hold), and m (Minimum Hold). The letters with different colors and in
different forms show different meanings:
— The letter in blue indicates that the trace is updating.
— The letter in gray indicates that the trace is not updated.
— The letter with strikethrough and in gray color indicates that the trace will neither
be updated nor displayed.
— The letter with strikethrough and in blue color indicates that the trace is updating
