Chapter 5 Functions of the Front Panel of VSA RIGOL
RSA3000E User Guide 5-35
Marker Measurement
Marker
Marker is a triangle sign (as shown in the following figure), which is used for marking
the point on the trace. Reads the amplitude and frequency of a certain point on the
trace via marker.

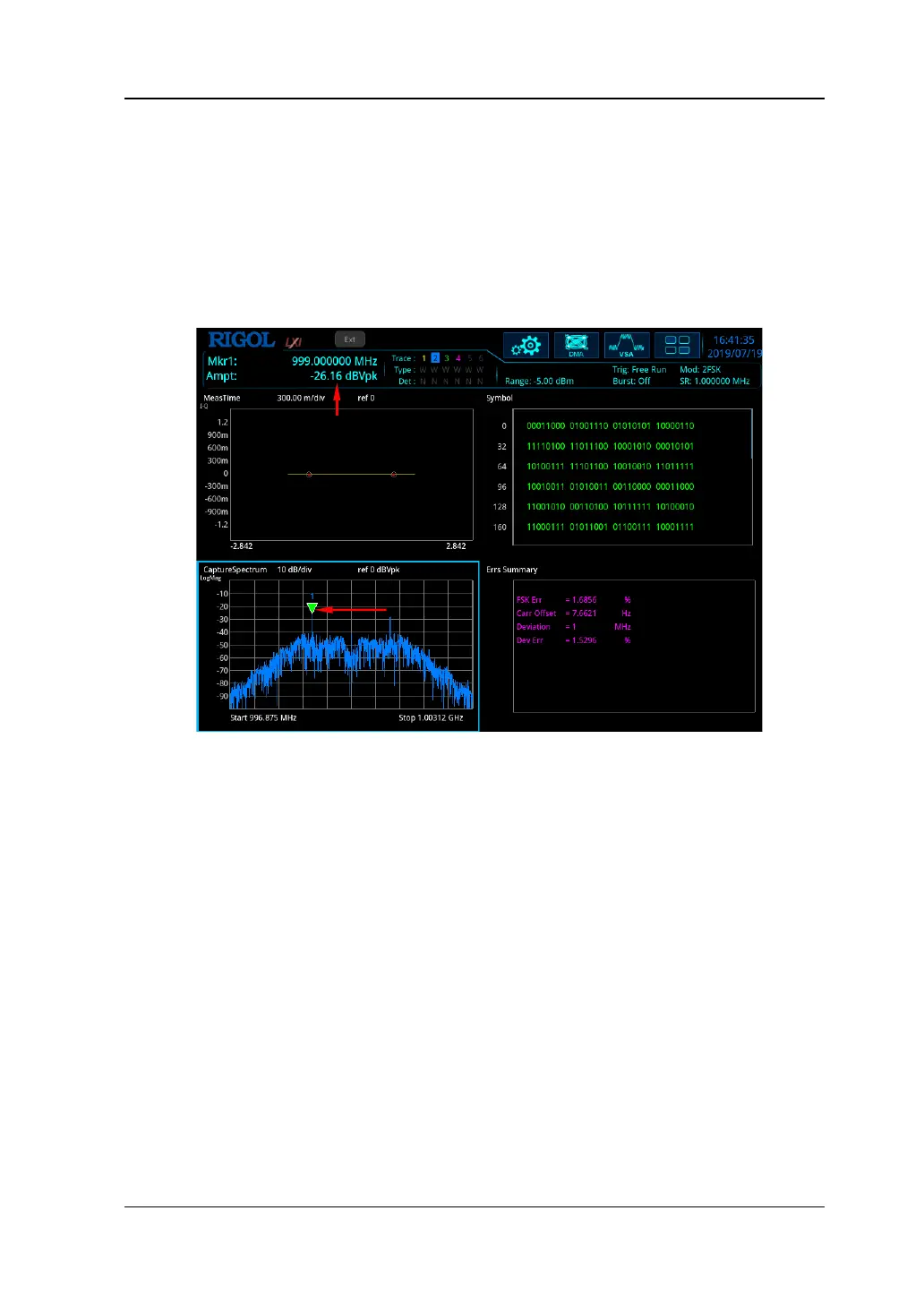

Figure 5-7 Marker
Remarks:
RSA3000E offers 8 markers in VSA mode, and only a single marker or one pair of
markers can be turned on each time.
In the Marker menu, you can use the numeric keys, the knob, or the arrow keys
to modify frequency; to view the readout of different points on the trace. You
can also use the touch screen to do the above things.
