RIGOL Chapter 2 Functions of the Front Panel of GPSA
2-2 RSA3000E User Guide
performs one self-calibration automatically after start-up.
Interface
The analyzer supports the LAN or USB communication interface.
1. LAN
Sets the LAN parameters. Tap the setting information icon
at the top of
the user interface or use the externally connected mouse to click the icon, and
then click the network setting icon
. Then, the LAN parameter setting
interface, as shown below, is displayed.

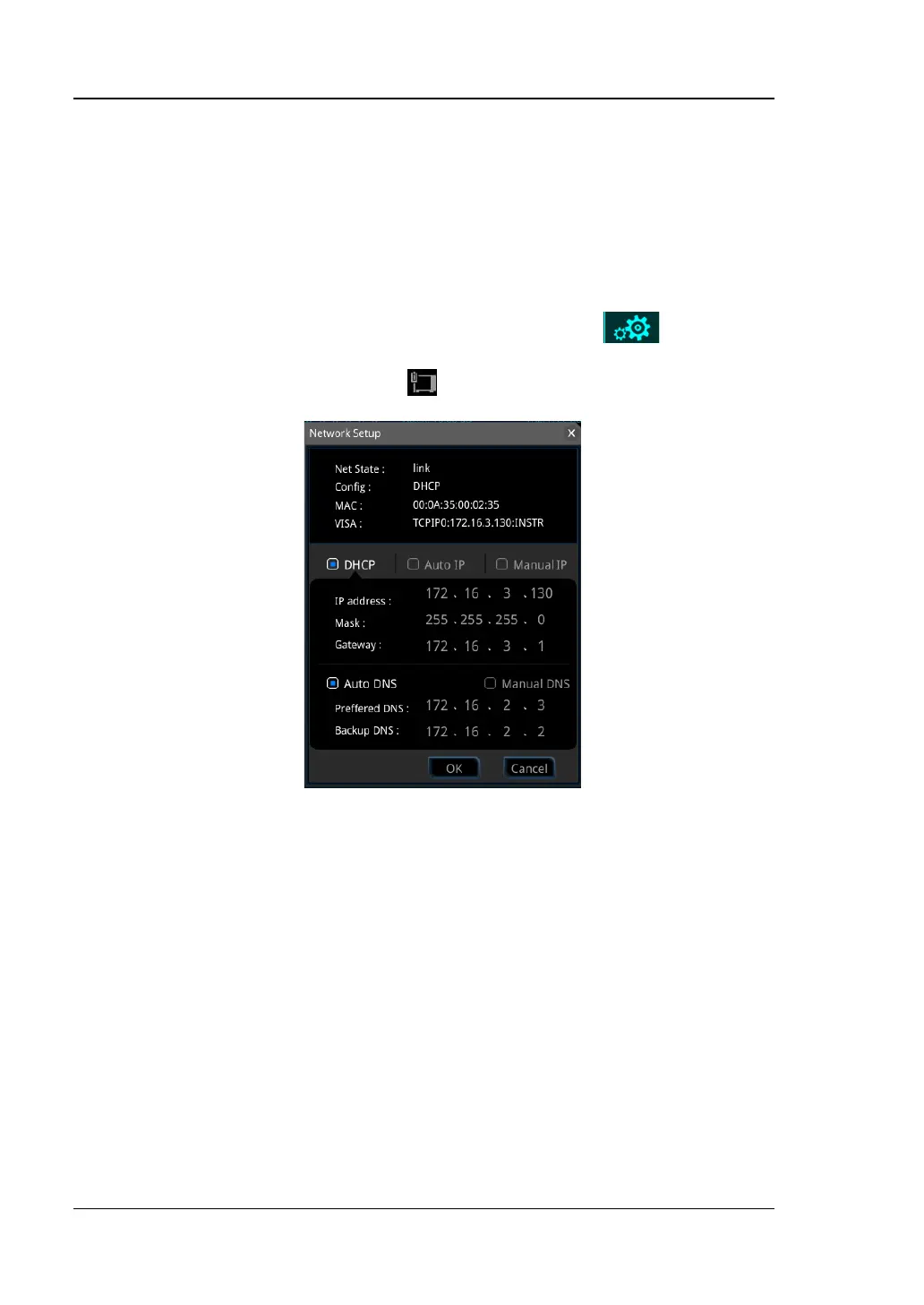

Figure 2-20 LAN Parameter Setting
The following items can be set by the front panel keys, the keyboard shortcut
keys, the externally connected mouse, the touchscreen, or remote operation.
1) Mode
Sets the mode of obtaining the IP address.
DHCP: When DHCP is selected, the DHCP server assigns network
parameters (such as the IP address, subnet mask, and default gateway)
to the analyzer based on the current network configuration.
Auto: When "Auto" is selected, the instrument will acquire the IP
address ranging from "169.254.0.1" to "169.254.255.254" and the
subnet mask (255.255.0.0) automatically based on the current
network configuration.
Manual: When "Manual" is selected, you can self-define a desired IP
address for the analyzer.
