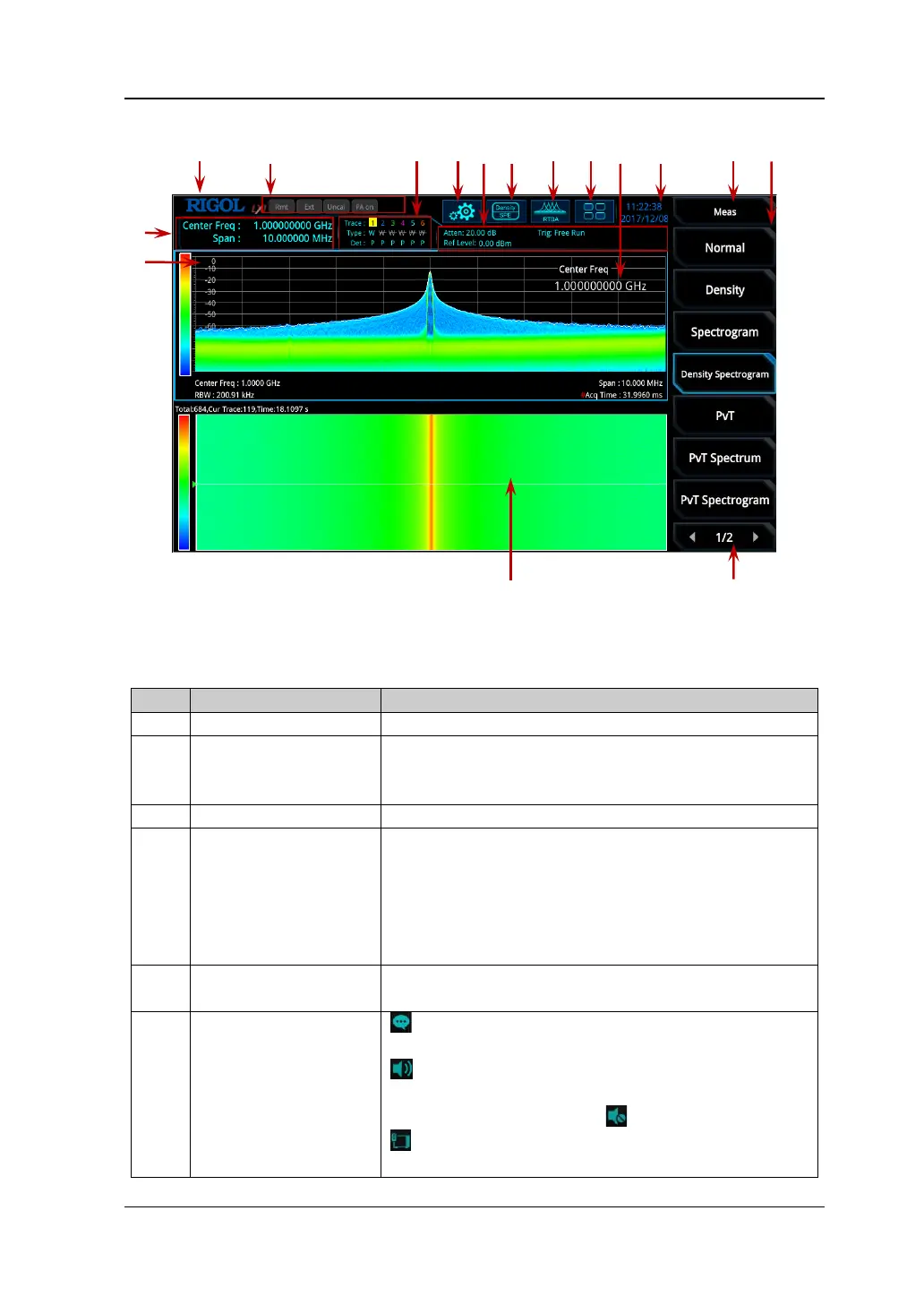

Figure 1-10 User Interface (RTSA Mode)
Table 1-5 User Interface Icons
No.
Name
Description
1
Reference level
Displays the reference level value.
2
Measurement result
Displays the current measurement results for the
marker (when no marker exists, the measurement
results display frequency/span value).
3
RIGOL
Indicates the company logo.
4
System status
Rmt: indicates remote operation.
Ext: indicates the external reference.
Uncal: indicates that the measurement has not be
calibrated.
PA on: indicates that the preamp has been
enabled.
5
Trace indicator
[1]
Displays information about the trace and the
detector.
6
Information setting
: indicates messages, such as the prompt
messages, alarm messages, and error messages.
: indicates the speaker. You can tune it up and
down to increase and decrease the speaker
volume, or set it to mute
.
: indicates the network settings. You can
configure network parameters.
3 4 5 6 7 8 9 10 11 12
13 14
2
1
16 15
