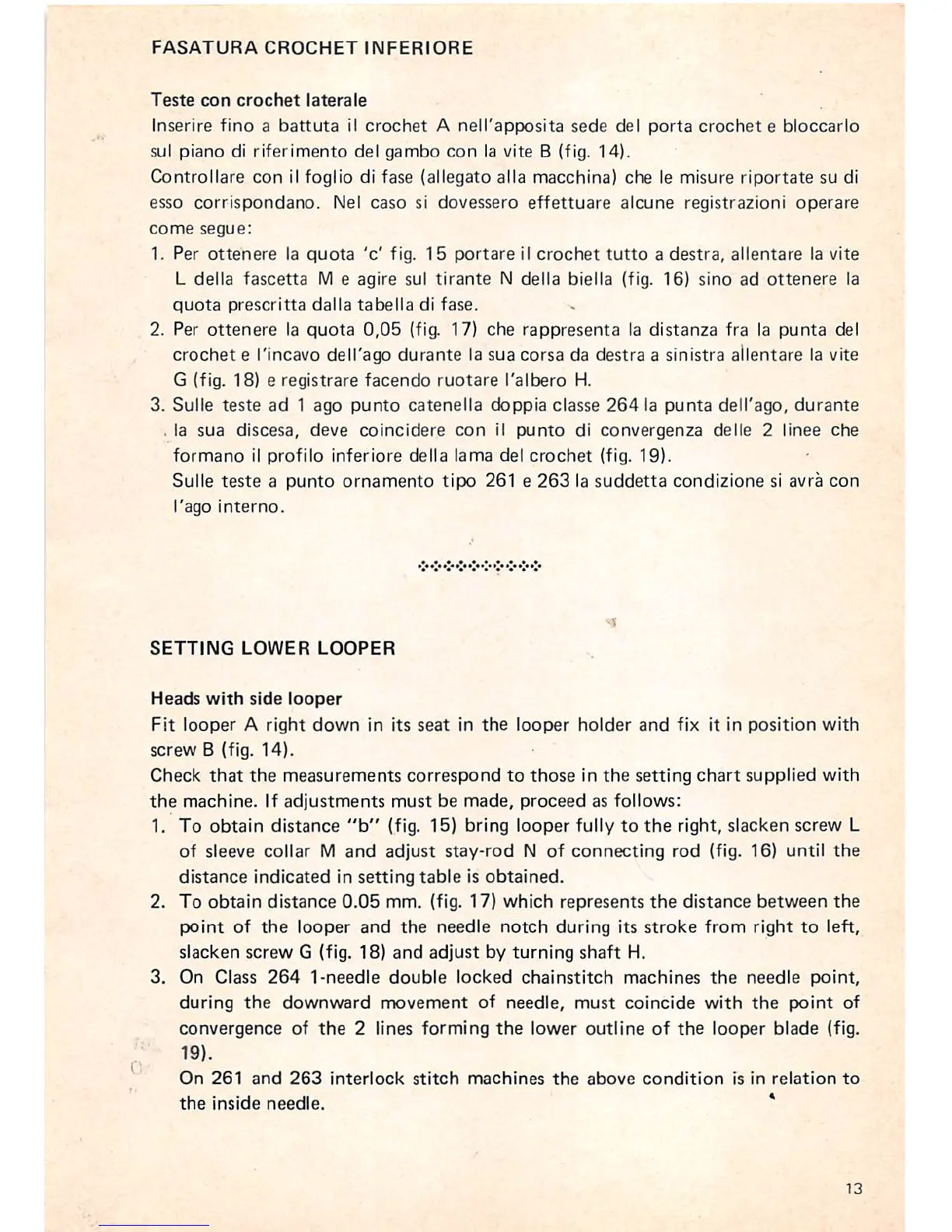

FASATURA
CROCHET
IIMFERIORE
Teste
con
crochet
laterale
Inserire
fino
a
battuta
il
crochet
A
nell'apposita
sede
del
porta
crochet
e
bloccarlo
sul
piano
di
riferimento
del
gambo
con
la vite B (fig.
14).
Controllare con
11
foglio di fase (allegato alia macchina) che le misure riportate su di
esso
corrispondano.
Nel
caso
si
dovessero
effettuare
alcune
registrazioni
operare
come
segue:
1. Per
ottenere
la
quota
'c'
fig.
15
portare
il
crochet
tutto
a
destra,
allentare
la
vite
L della
fascetta
M e agire sul
tirante
N della biella (fig. 16) sino ad
ottenere
la
quota
prescrltta
dalla
tabella
di
fase.
2. Per
ottenere
la
quota
0,05
(fig. 17) che
rappresenta
la
distanza
fra la
punta
del
crochet e I'incavo dell'ago durante la sua corsa da destra a sinistra allentare la vite
G (fig. 18) e registrare
facendo
ruotare
I'albero H.
3. Sulle
teste
ad 1 ago
punto
catenella
doppia
classe
264
la
punta
dell'ago,
durante
. la sua discesa,
deve
coincidere
con
il
punto
di
convergenza
delle 2 linee che
formano
il
profile
inferiore della lama del
crochet
(fig. 19).
Sulle
teste
a
punto
ornamento
tipo
261 e
263
la
suddetta
condlzione
si avra
con
I'ago
interne.
SETTING
LOWER
LOOPER
Heads
with
side
looper
Fit
looper
A right
down
in its
seat
in
the
looper
holder
and
fix it in
position
with
screw B (fig.
14).
Check
that
the
measurements
correspond
to
those
in
the
setting
chart
supplied
with
the
machine.
If
adjustments
must
be
made,
proceed
as
follows:
1. To
obtain
distance
"b"
(fig. 15) bring looper fully to
the
right, slacken screw L
of sleeve collar M
and
adjust stay-rod N of
connecting
rod (fig. 16) until
the
distance
indicated
in
setting
table
is
obtained.
2.
To
obtain
distance
0.05
mm. (fig. 17)
which
represents
the
distance
between
the
point
of
the
looper
and
the
needle
notch
during
its
stroke
from
right
to
left,
slacken
screw
G (fig. 18)
and
adjust
by
turning
shaft
H.
3. On Class
264
1-needle
double
locked
chainstitch
machines
the
needle
point,
during
the
downward movement of needle,
must
coincide
with
the
point
of
convergence
of
the
2 lines
forming
the
lower
outline
of
the
looper
blade
(fig.
19).
On
261
and
263
interlock
stitch
machines
the
above
condition
is
in
relation
to
the
inside
needle.
*
13
