0,1+0.15

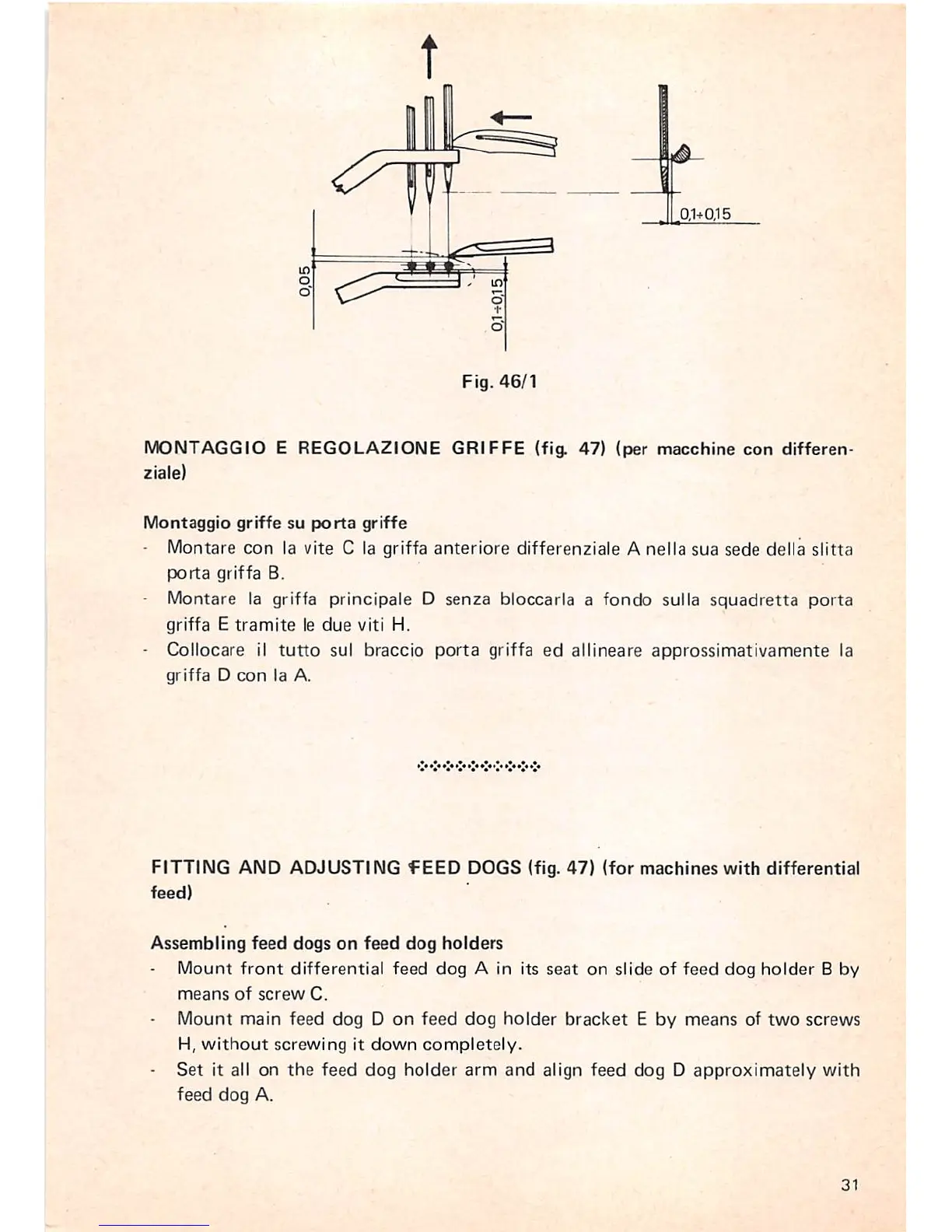

Fig. 46/1
MONTAGGIO E REGOLAZIONE GRIPPE (fig. 47) (per macchine con differen-
ziale)
Montaggio griffe su porta griffe
Montare con la vite C la griffa anteriore differenziale A nella sua sede della slitta
porta griffa B.
- Montare la griffa principale D senza bloccaria a fondo suila squadretta porta
griffa E tramite le due viti H.
- Collocare it tutto su! braccio porta griffa ed allineare approssimativamente la
griffa D
con la A.
PITTING AND ADJUSTING fEED DOGS (fig. 47) (for machines with differential
feed)
Assembling feed dogs on feed dog holders
- Mount front differential feed dog A in its seat on slide of feed dog holder 8 by
means of screw C.
- Mount main feed dog D on feed dog holder bracket E by means of two screws
H, without screwing it down completely.
- Set it all on the feed dog holder arm and align feed dog D approximately with
feed dog A.
31
