44 • Viewing, Printing, Exporting, and Deleting Data
to specify the filename, file location, and file type.
For Graph view the export file type is Windows bitmap
(.bmp). For Table view the default file type is “.csv” (comma-
separated values.) After specifying the, file name, file
location, and file type click the Save button to save the file to
the specified location.
12.To save the table or graph to the clipboard, click the To
clipboard button and the table or graph will be saved to the
clipboard. It can then be pasted into a document by using the
Paste command in an application.
13.To go back and view other data, click the Data button on the
right side of the program window and select the data you
want to view.
NOTE: If data is being viewed and the data folders are left open
before instrument downloading is done, close all folders
after downloading and re-open them to be able to view
newly downloaded files.

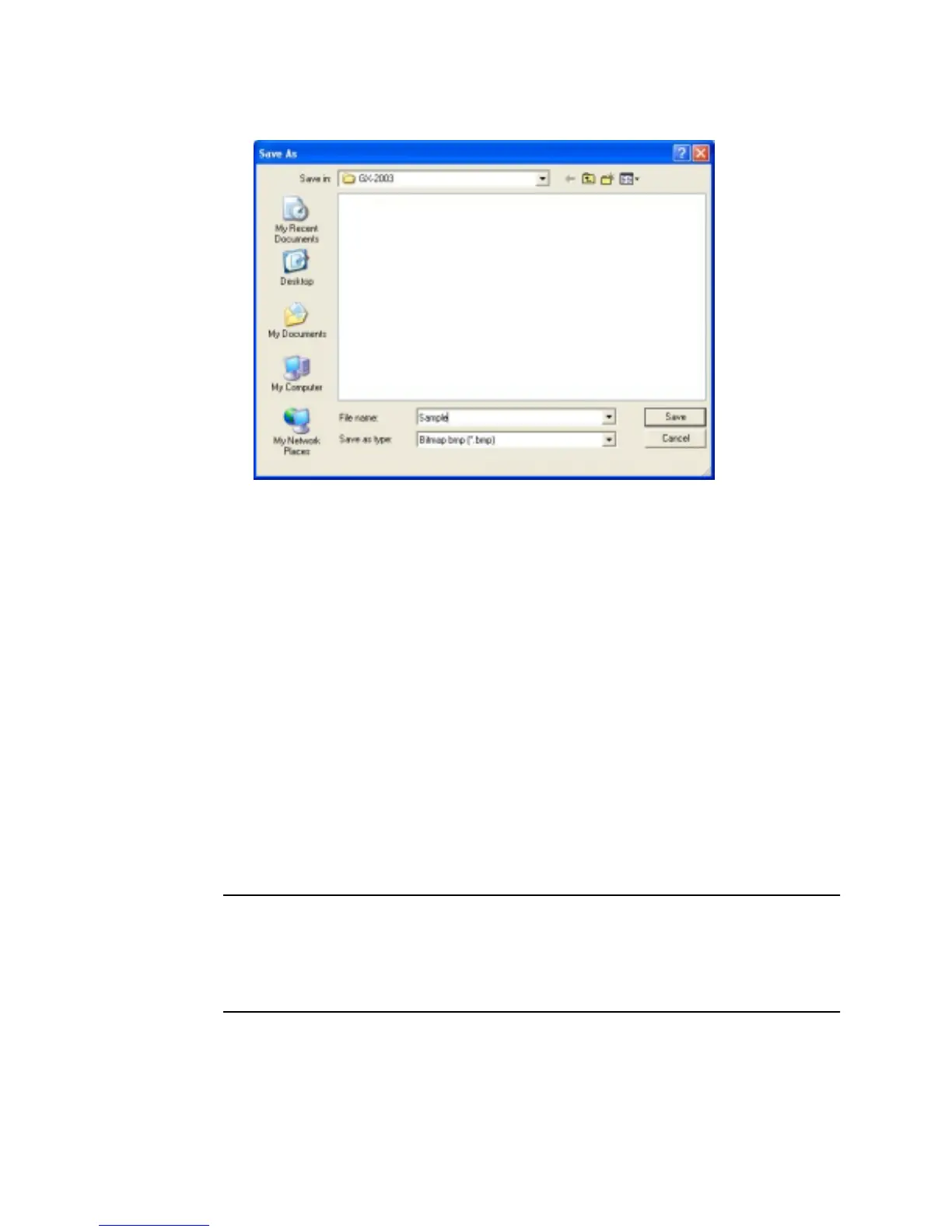

Figure 31: Save as Dialog Box
