APPENDIX
MANUAL TME400-VCF · EN08 · July, 01
st
2021
119

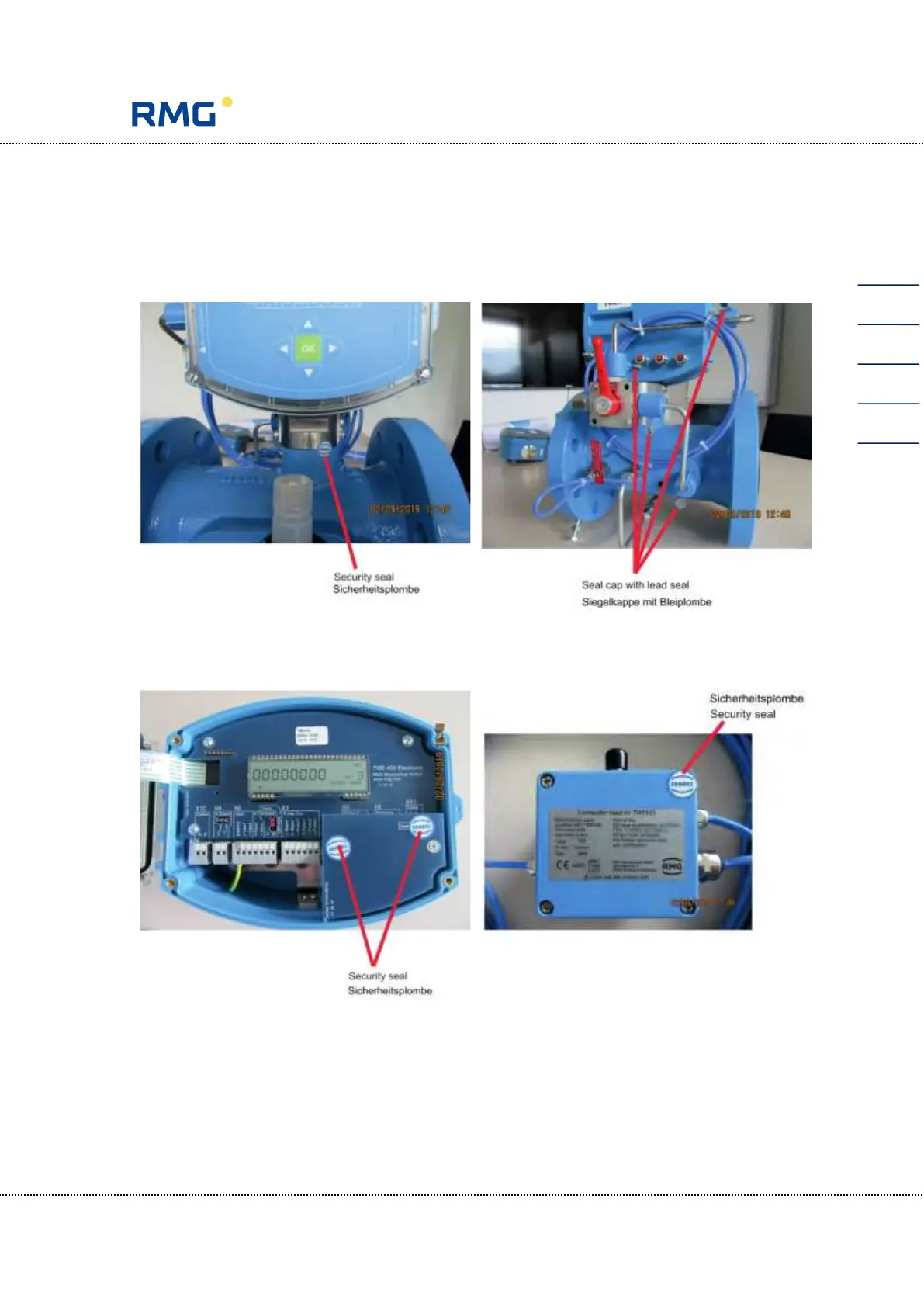

F Seal diagrams
The following figures show the positions of the seals on the TME400.
Front side
Back side
In the electronic enclosure
At the connection head
