Publication IASIMP-QS003B-EN-P - October 2009 105
Create a Project in RSLogix 5000 Programming Software Chapter 9
Configure 1769-SDN DeviceNet Module
Required for DeviceNet System

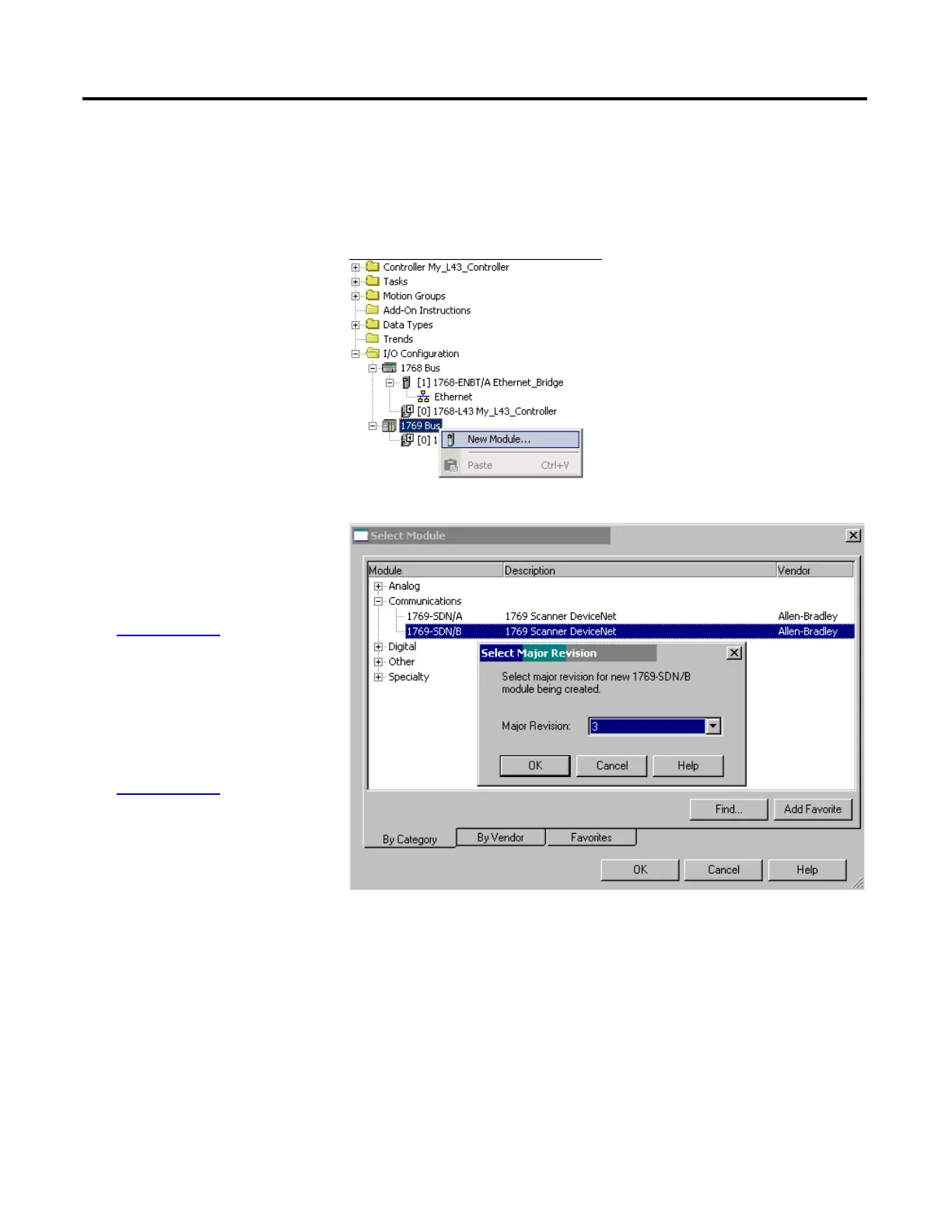

1. Under I/O
Configuration, right-click
1769 Bus, and select New
Module.
2. Expand
Communications, select
the 1769-SDN series
letter recorded in
Appendix A
, and click
OK.
3. Select the Major Revision
(firmware) of the SDN
module recorded in
Appendix A
and click
OK.
To Next Page
