Chapter 10 Add Distributed Point I/O Modules to the Project

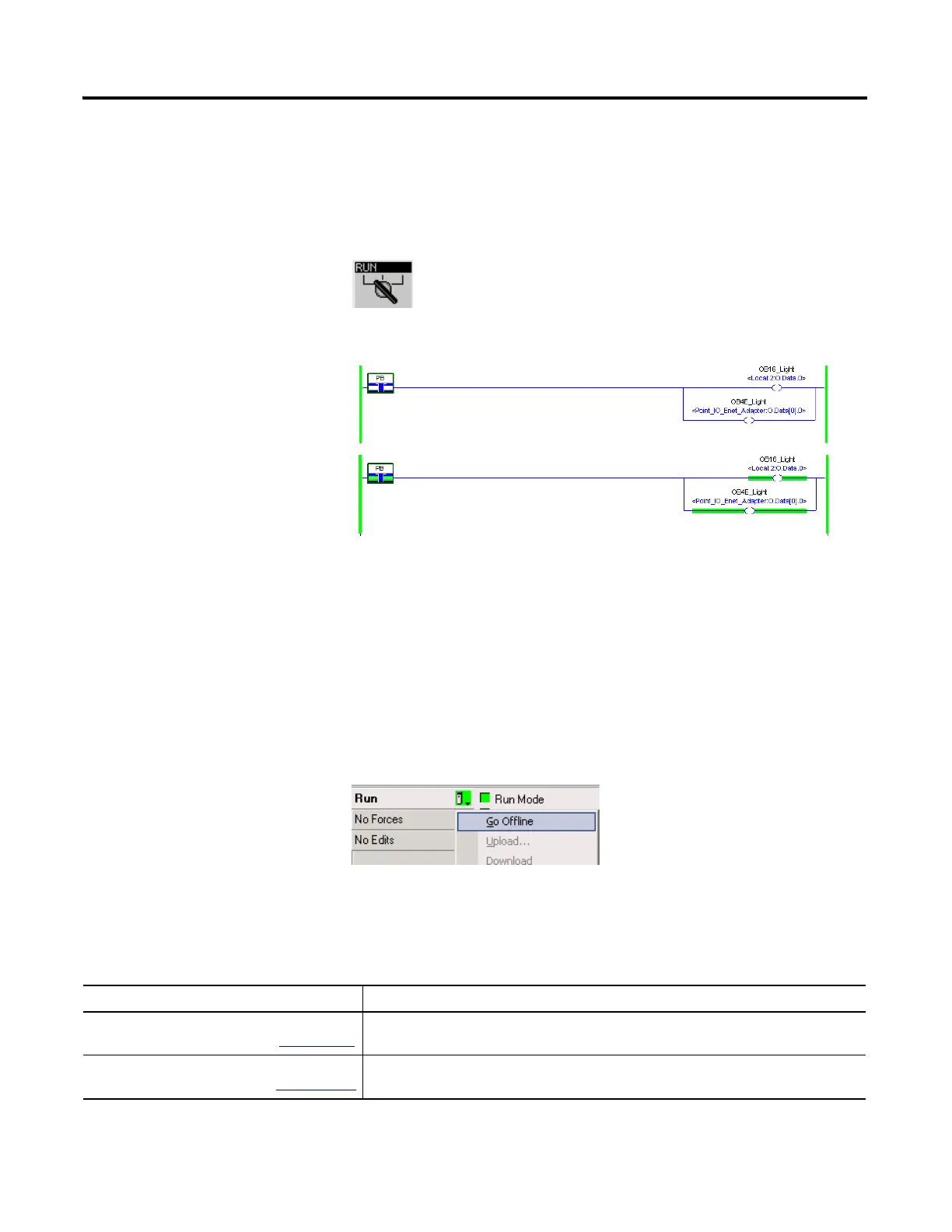

Test the Distributed I/O Light
Required for EtherNet/IP and DeviceNet Systems
1. Move the keyswitch on
controller to Run.
2. Select PB and press
Ctrl+T to toggle the state
from 0 to 1, or off to on.
3. Verify that the light on
the local and distributed
digital output modules
turn on.
4. Press Ctrl+T to toggle
the state to 0 or off.
5. Go Offline.
Additional Resources
On
Off
Resource Description
Logix5000 Controllers Common Procedures
Programming Manual, publication 1756-PM001
Provides information on adding distributed I/O modules, adding ladder logic,
downloading a project, and testing I/O devices.
DeviceNet Modules in Logix5000 Control
System User Manual, publication DNET-UM004
Provides information on how to create a DeviceNet scanlist.
