Test the Indicator and Push Button

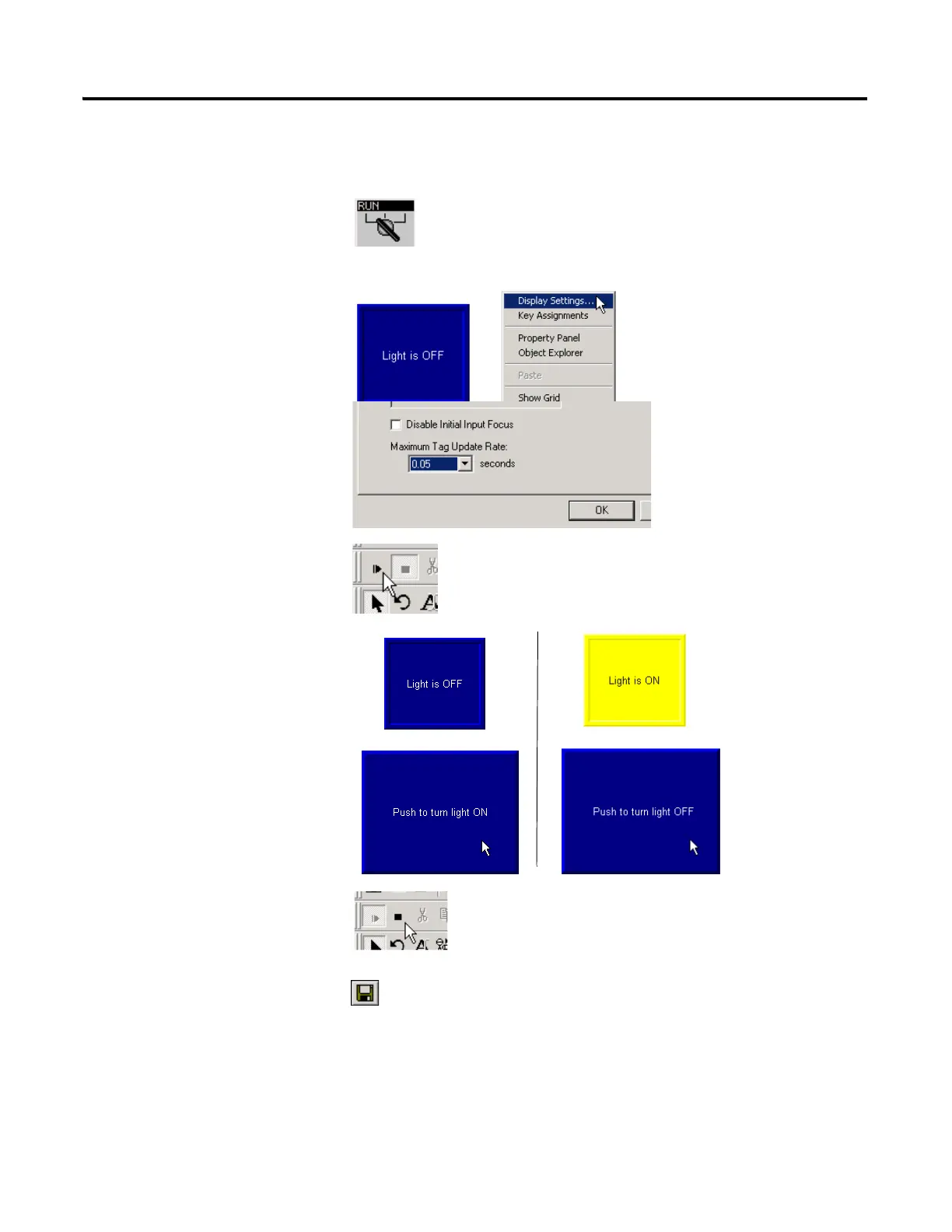

1. Verify that the keyswitch
on controller is set to
Run.
2. Right-click an unused
area of the display and
select Display Settings.
3. Change the Maximum
Tag Update Rate to 0.05.
4. Click OK and then click
OK again.
5. Click the Play button.
6. Click the push button to
toggle the state and turn
the light on and off.
You could view this logic
in project created in
chapter 10.
7. Click the Stop button.
8. Save your changes.
When prompted for a
display title, type
test_logic.
