Rockwell Automation 1768-L43 - Configure 1769 Local I;O Modules

Publication IASIMP-QS003B-EN-P - October 2009 107
Create a Project in RSLogix 5000 Programming Software Chapter 9
Configure 1769 Local I/O Modules
Required for EtherNet/IP and DeviceNet Systems

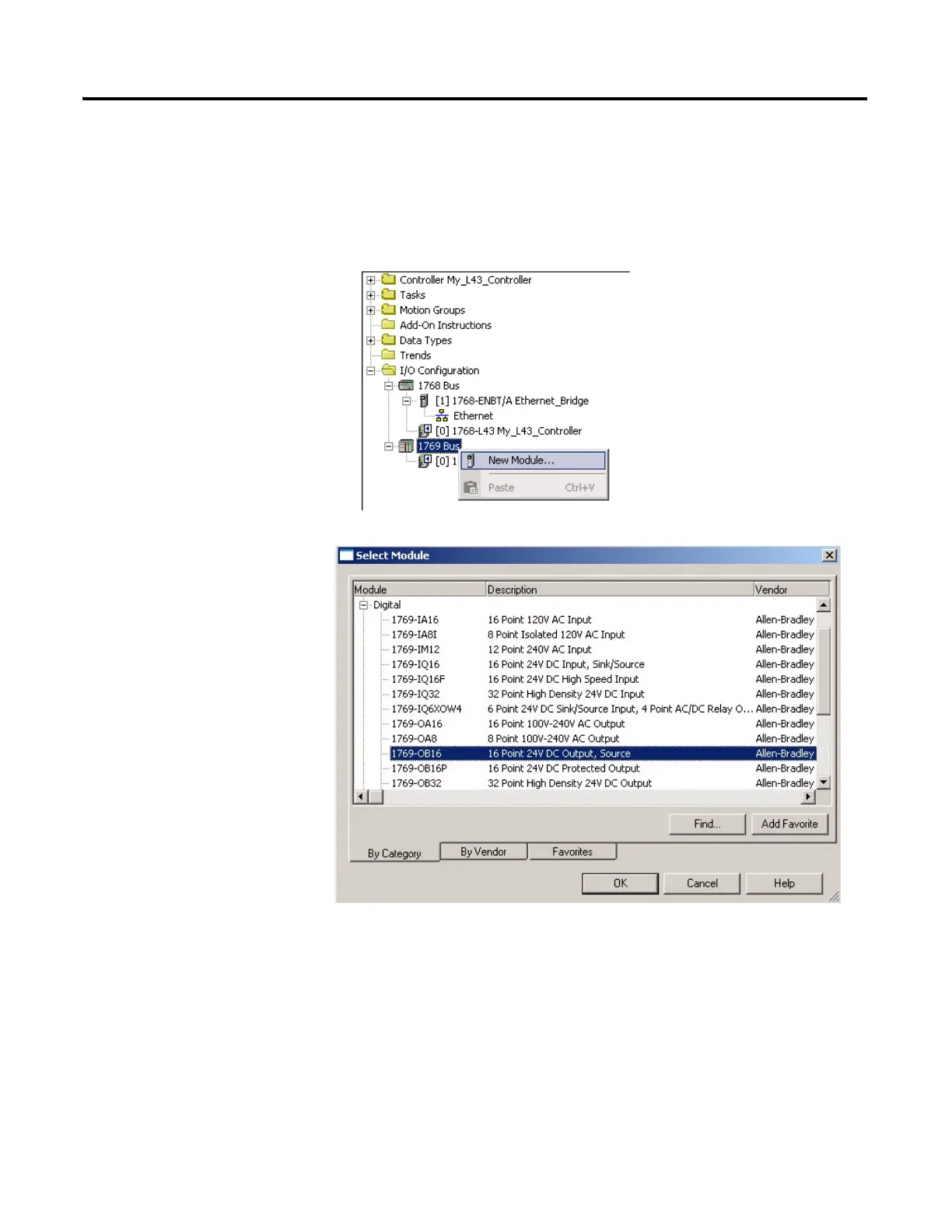

1. Under I/O
Configuration, right-click
1769 Bus, and select New
Module.
2. Expand Digital, select the
leftmost I/O module,
and click OK.
This example uses a
1769-OB16 output
module.
