64 Rockwell Automation Publication ICSTT-RM406J-EN-P - February 2021
Chapter 6 Troubleshooting and Rectifying Channel/Field Faults
To examine the State variable in AADvance Workbench software version 1.x:
1. Select the Equipment tab to use the Project Tree View to find the channel
you wish to examine.
2. Identify the reference for the State variable. This will be of one of two
forms:
• %IBnnn.0.7 for an input module
• %QBnnn.0.7 for an output module (illustrated)

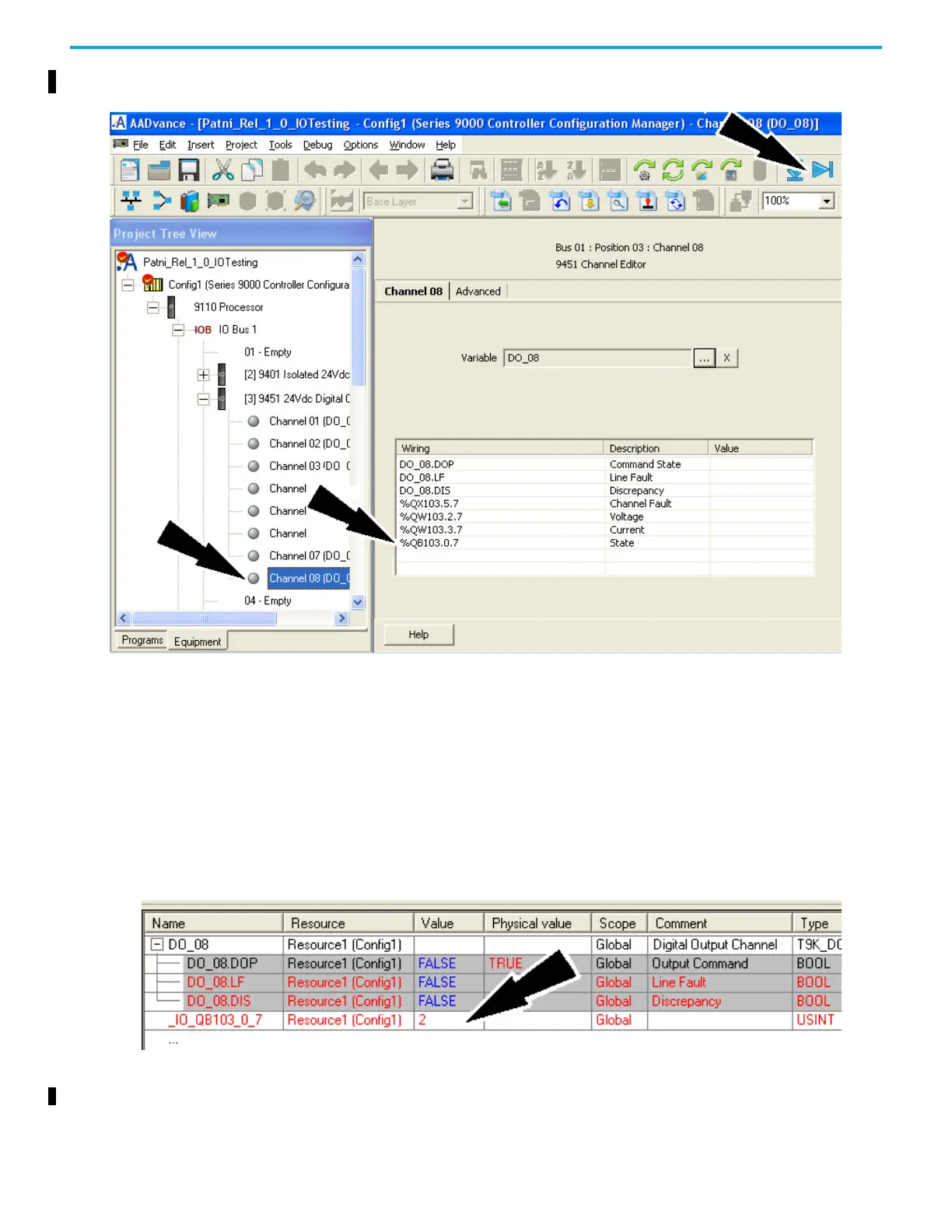

From Release 1.2, live data is available in the view shown above. For
releases before Release 1.2, use the Spy List as identified below.
3. Select Debug Target and then open the Spy List.
4. Double-click on the Name field.
5. Select the Name for the state variable from the drop down list.
• The State variable is added to the Spy list.
