68 Rockwell Automation Publication ICSTT-RM406J-EN-P - February 2021
Chapter 6 Troubleshooting and Rectifying Channel/Field Faults

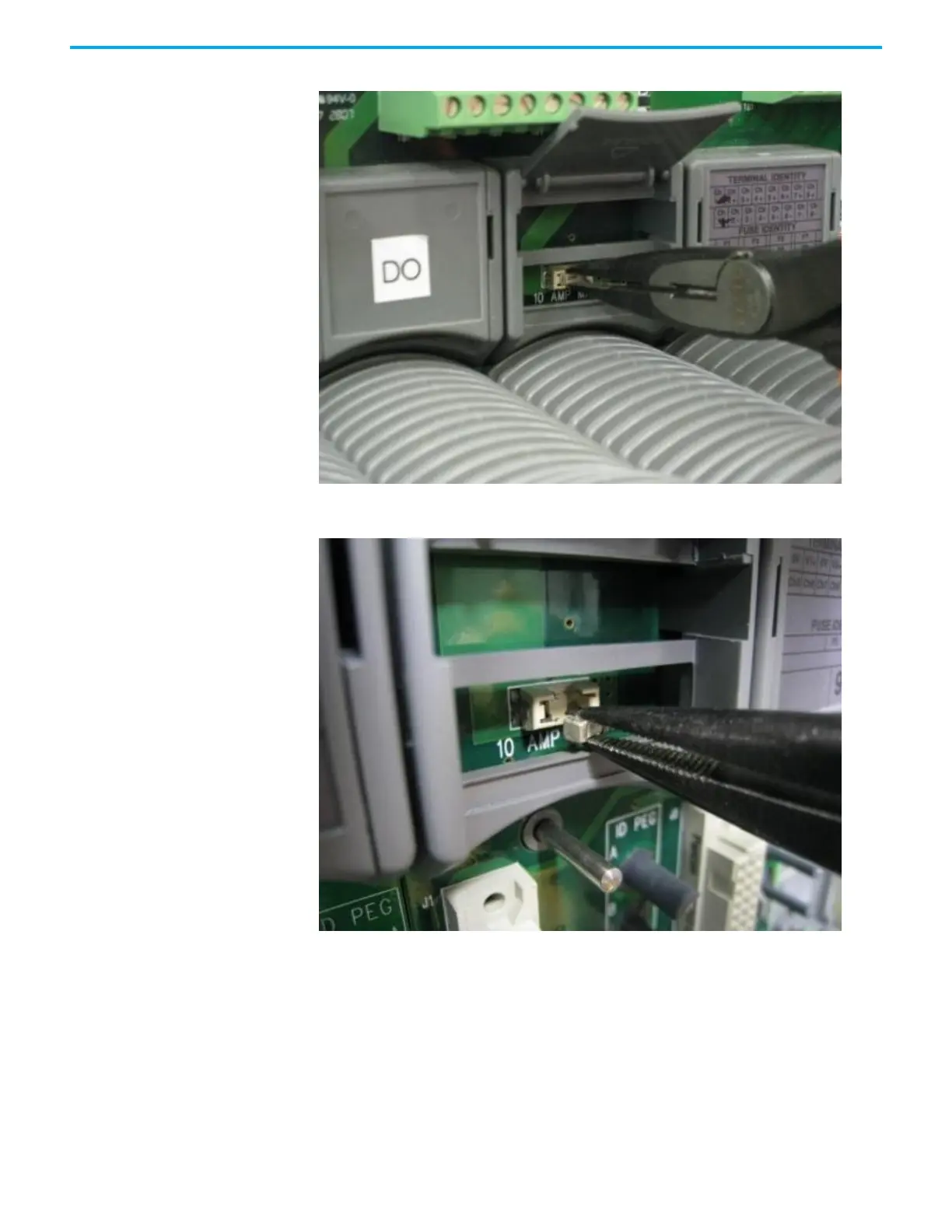

3. Insert a new fuse using the same long nosed pliers.
4. Close the fuse cover.
Install I/O Modules Do the following:
• Before inserting a new I/O module, examine it for damage.
• The identification labels on the sides of the I/O module will be hidden
when the module is installed. Therefore before installation write down
the location of the module and the details shown on the label.
