Chapter 6 Troubleshooting and Rectifying Channel/Field Faults
4. Close the fuse cover

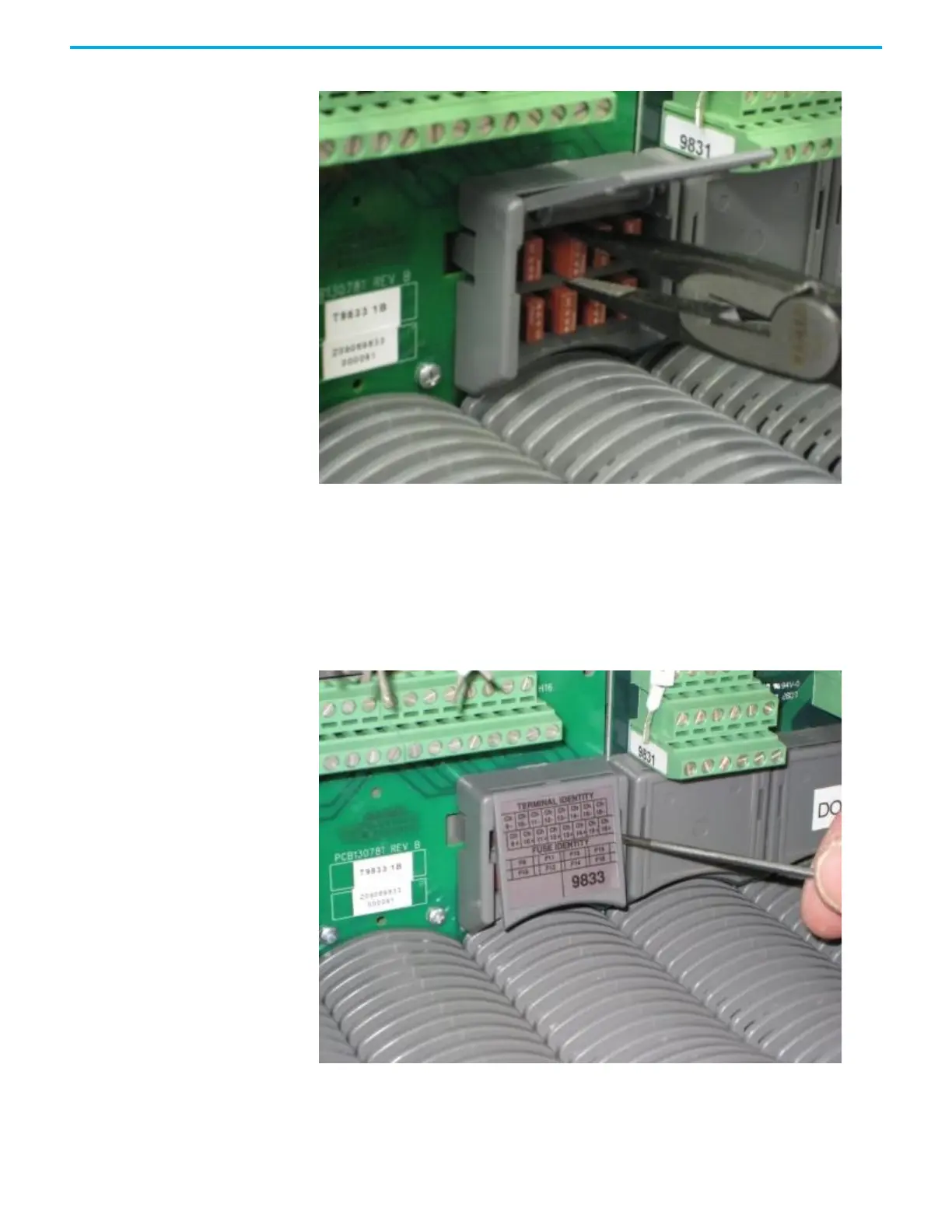

Replacing Digital Output Fuses
To replace a fuse in a Digital Output Termination Assembly do the following:
1. Use a small screwdriver to open the fuse cover.
2. Remove the blown fuse with long nosed pliers.
